Hydraulic Brake Component Views



Hydraulic Brake Component Views

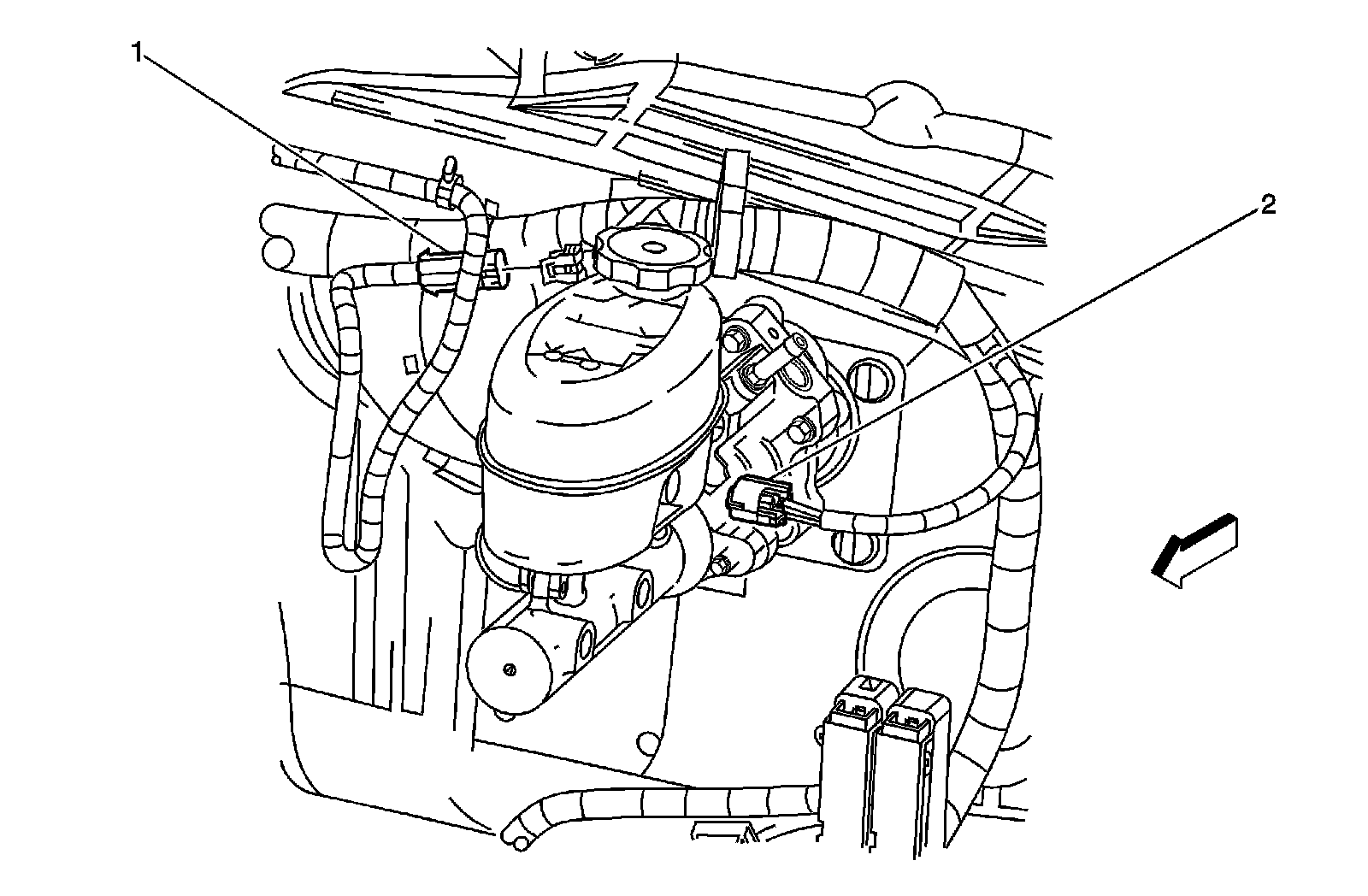

Left Rear of the Engine Compartment (Heavy Duty)

Left Rear of the Engine Compartment (Heavy Duty):





1 - C109
2 - Brake Fluid Level Switch Connector
