C106
HVAC Component Views

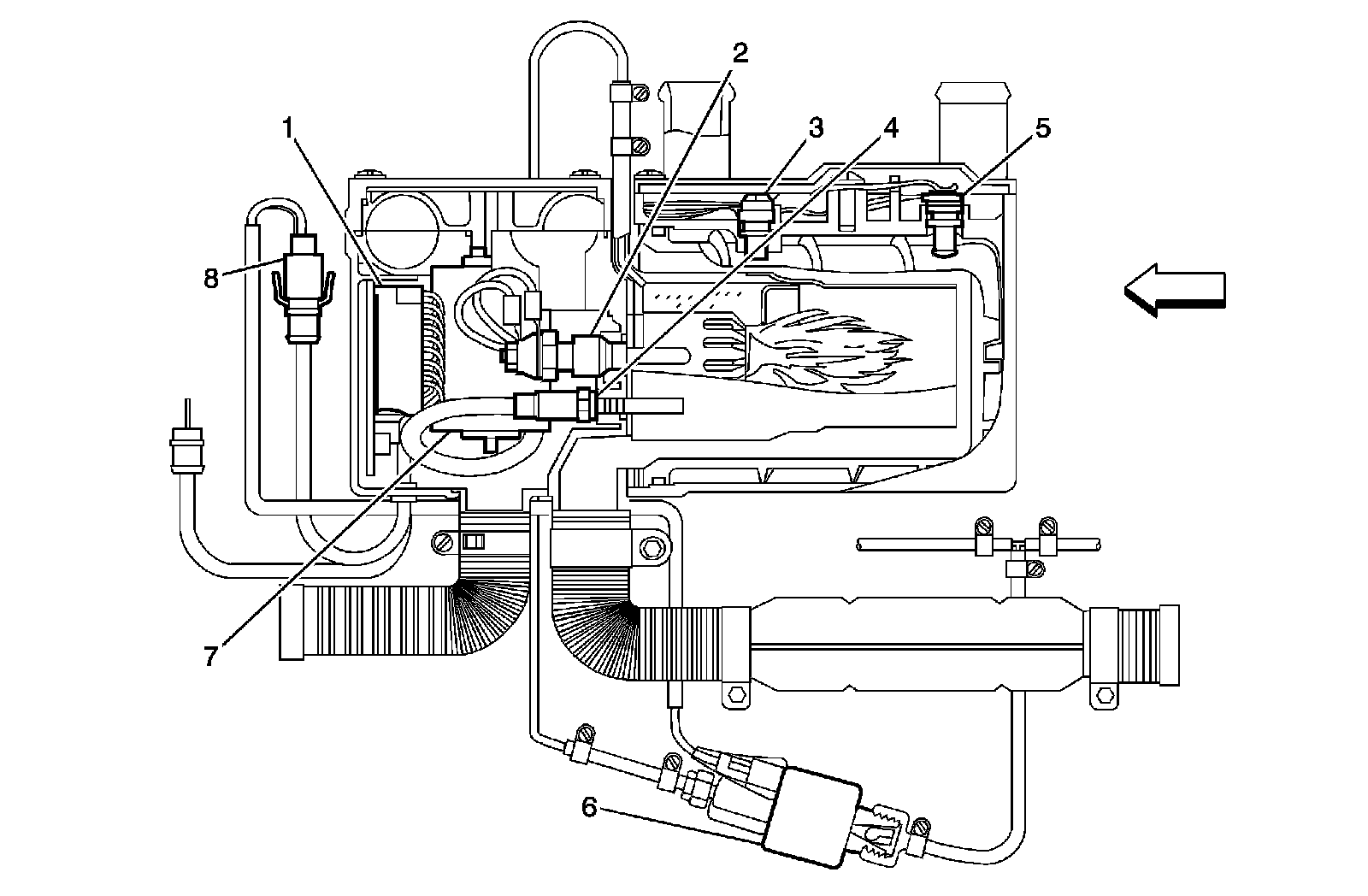

Coolant Heater (K08)
1 - Coolant Heater Control
2 - Glow Plug
3 - Air Temperature Sensor (Coolant Sensor)
4 - Combustion Sensor
5 - Air Temperature Sensor (Overheat Sensor)
6 - Fuel Pump
7 - Blower Motor
8 - C106
HVAC Component Views
Coolant Heater (K08)
1 - Coolant Heater Control
2 - Glow Plug
3 - Air Temperature Sensor (Coolant Sensor)
4 - Combustion Sensor
5 - Air Temperature Sensor (Overheat Sensor)
6 - Fuel Pump
7 - Blower Motor
8 - C106
