Diagnosis By Symptom - HVAC System - Manual
>>
Air Delivery Improper - Auxiliary (Passenger Van w/Aux)
Air Delivery Improper - Auxiliary (Passenger Van w/Aux)
Air Delivery Improper - Auxiliary (Passenger Van w/Aux)

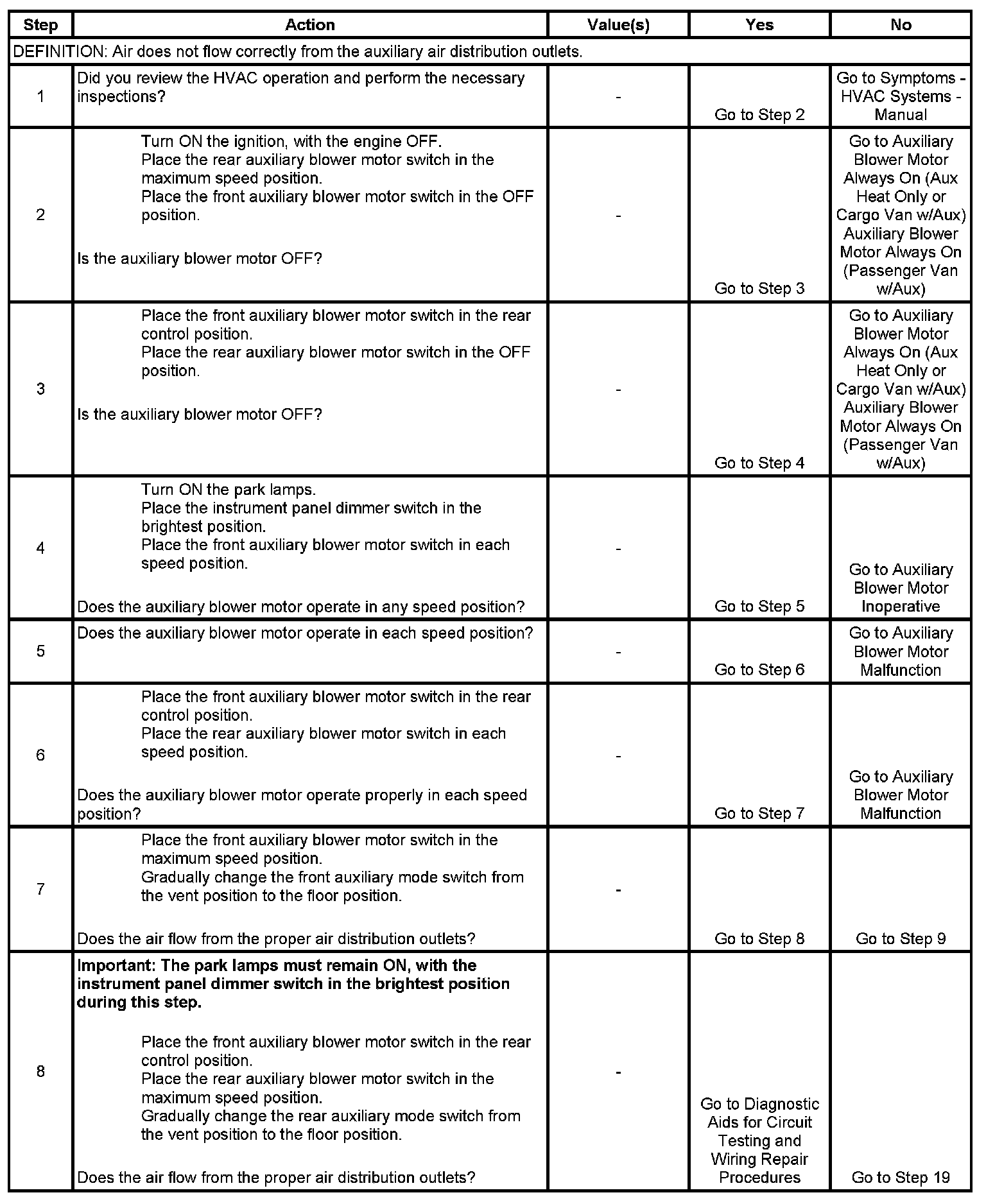

Step 1 - Step 8:

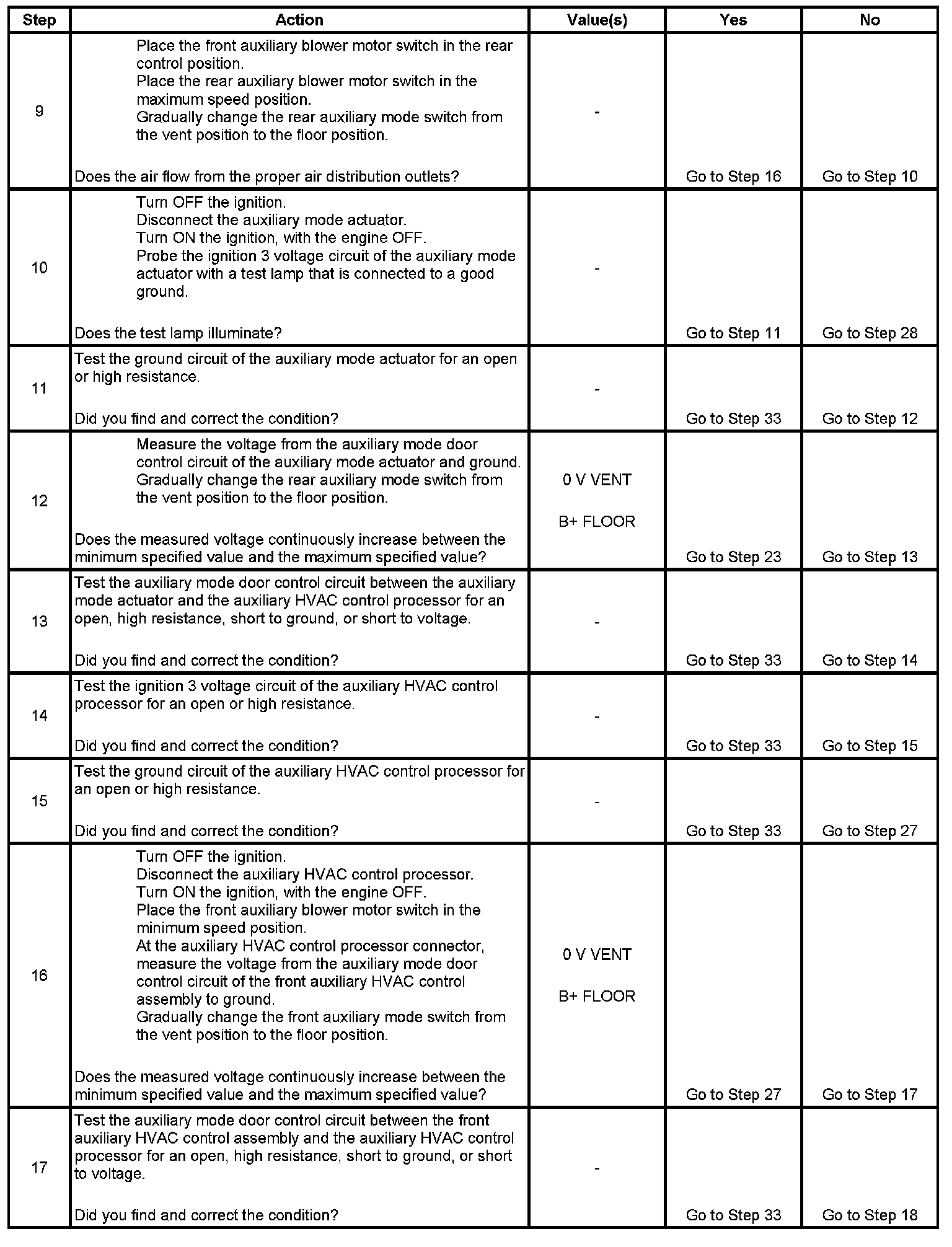

Step 9 - Step 17:

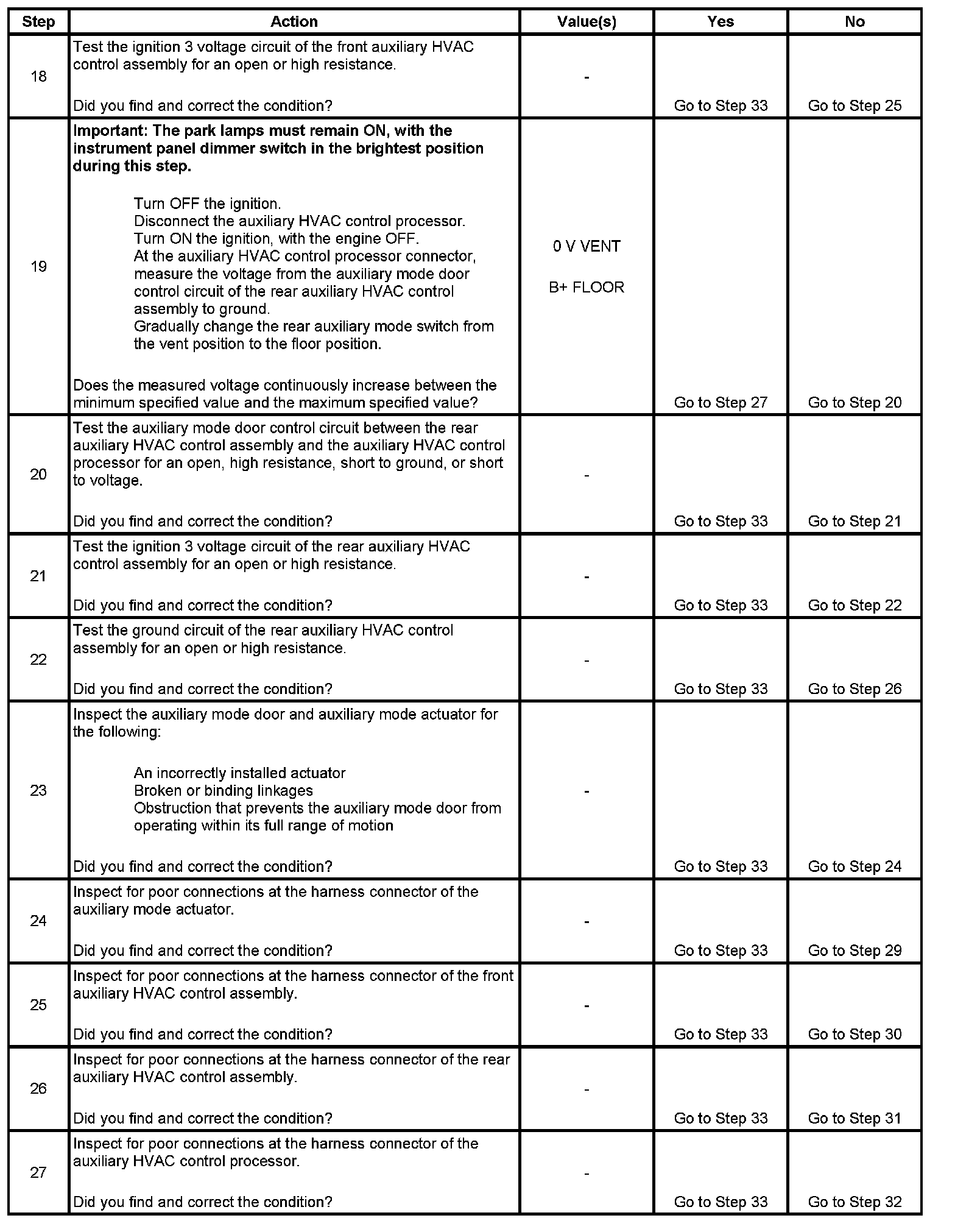

Step 18 - Step 27:
Step 28 - Step 33:
