Diagnosis By Symptom - HVAC System - Manual
>>
Air Delivery Improper - Auxiliary (Cargo Van w/Aux)
Air Delivery Improper - Auxiliary (Cargo Van w/Aux)
Air Delivery Improper - Auxiliary (Cargo Van w/Aux)

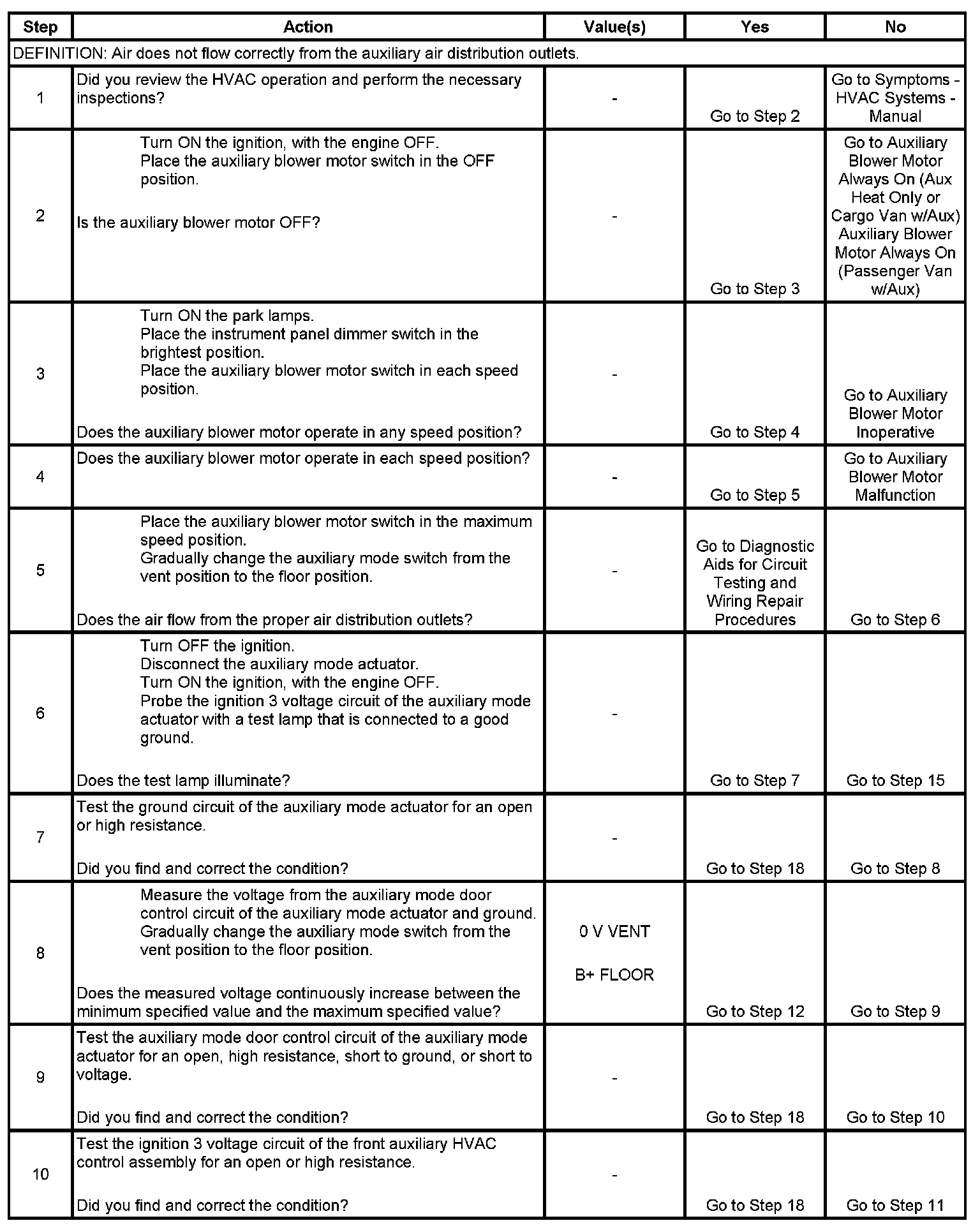

Step 1 - Step 10:

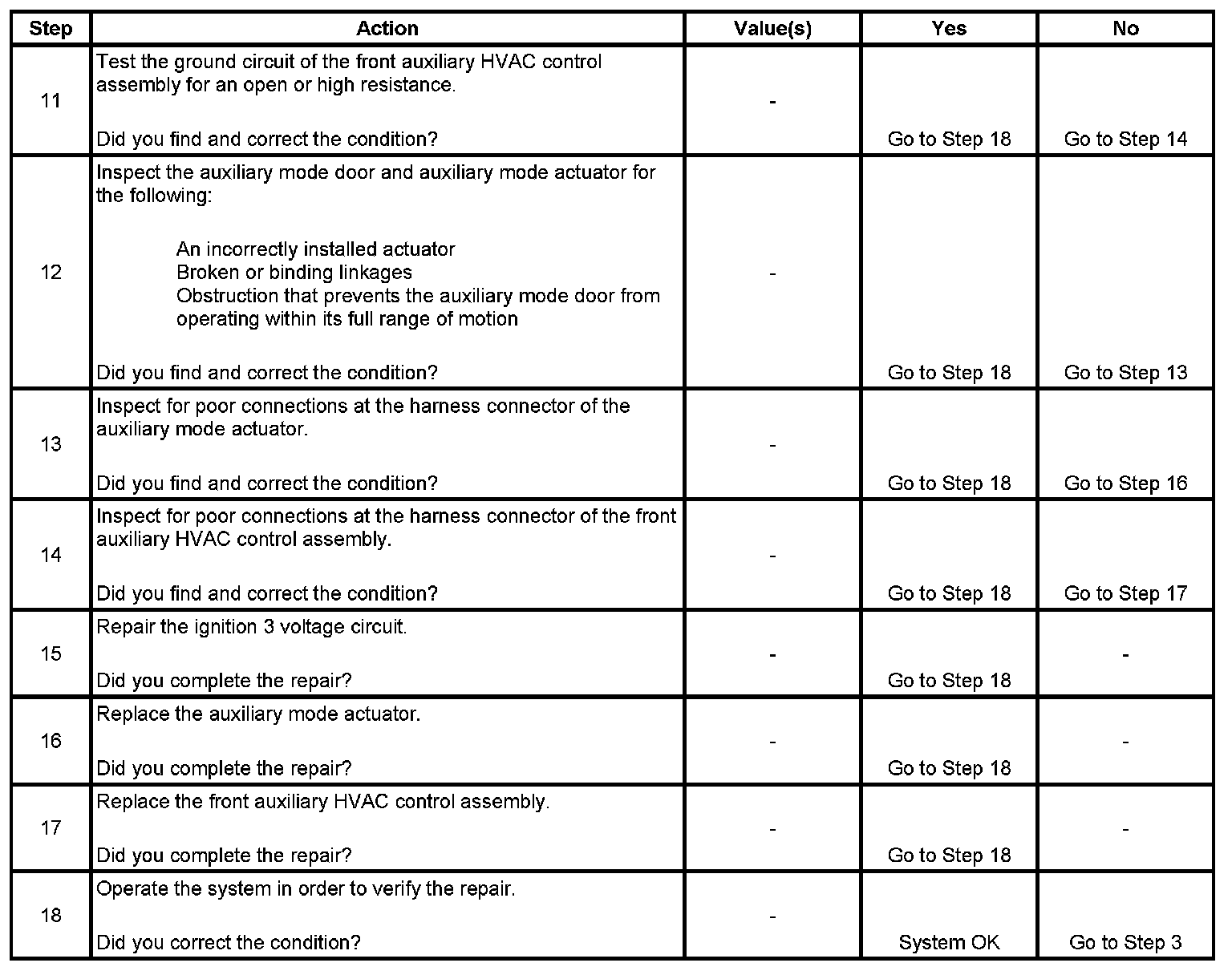

Step 11 - Step 18:
