Home >> Chevrolet >> 2007 >> Express 2500 V8-4.8L >> Repair and Diagnosis >> Diagrams >> Harness >> Seat Views >> Passenger Seat

Passenger Seat

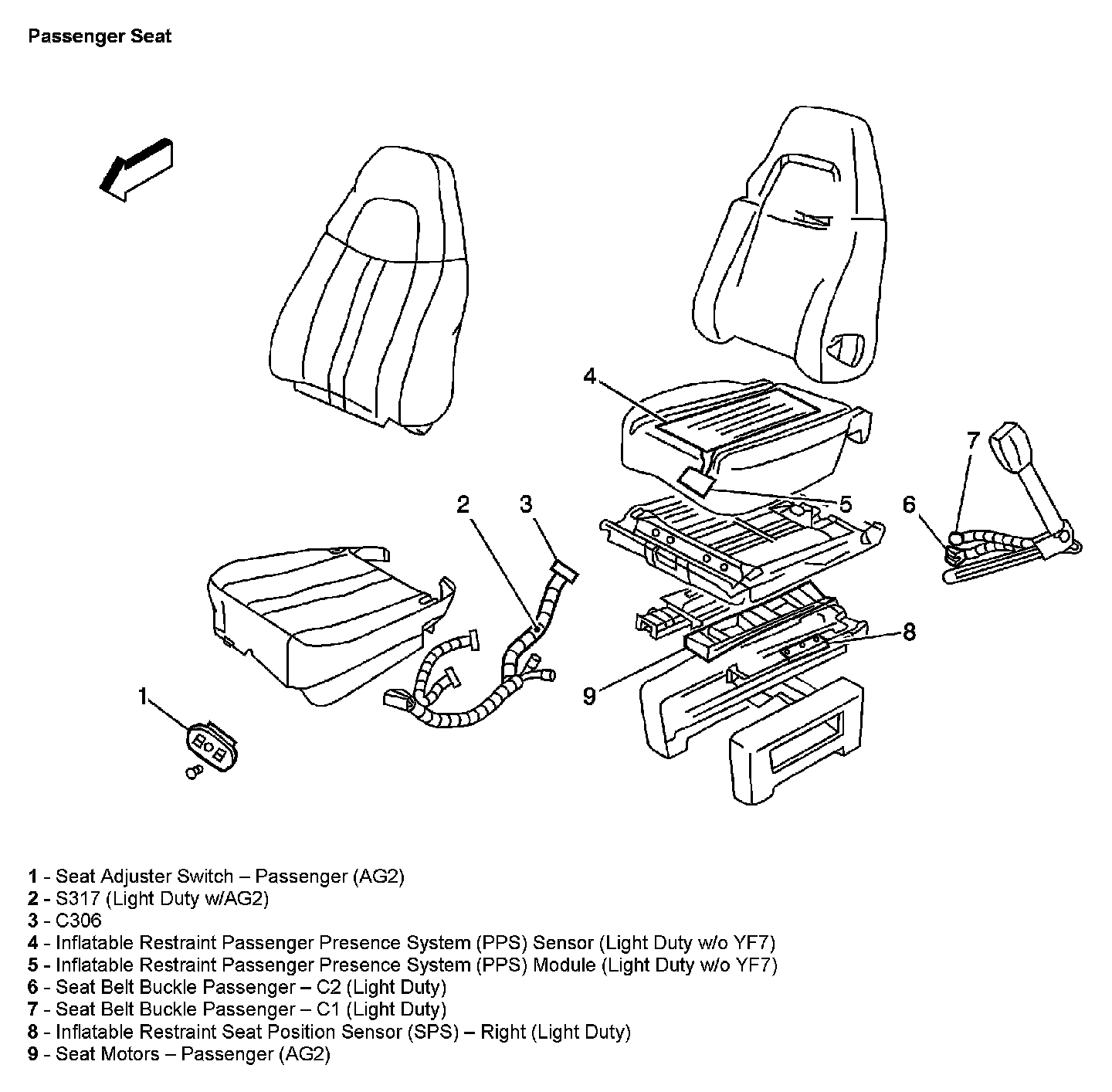

Passenger Seat:
