Home >> Chevrolet >> 2007 >> Express 2500 V8-4.8L >> Repair and Diagnosis >> Diagrams >> Harness >> Lamp Views >> Forward Lamps Harness Routing

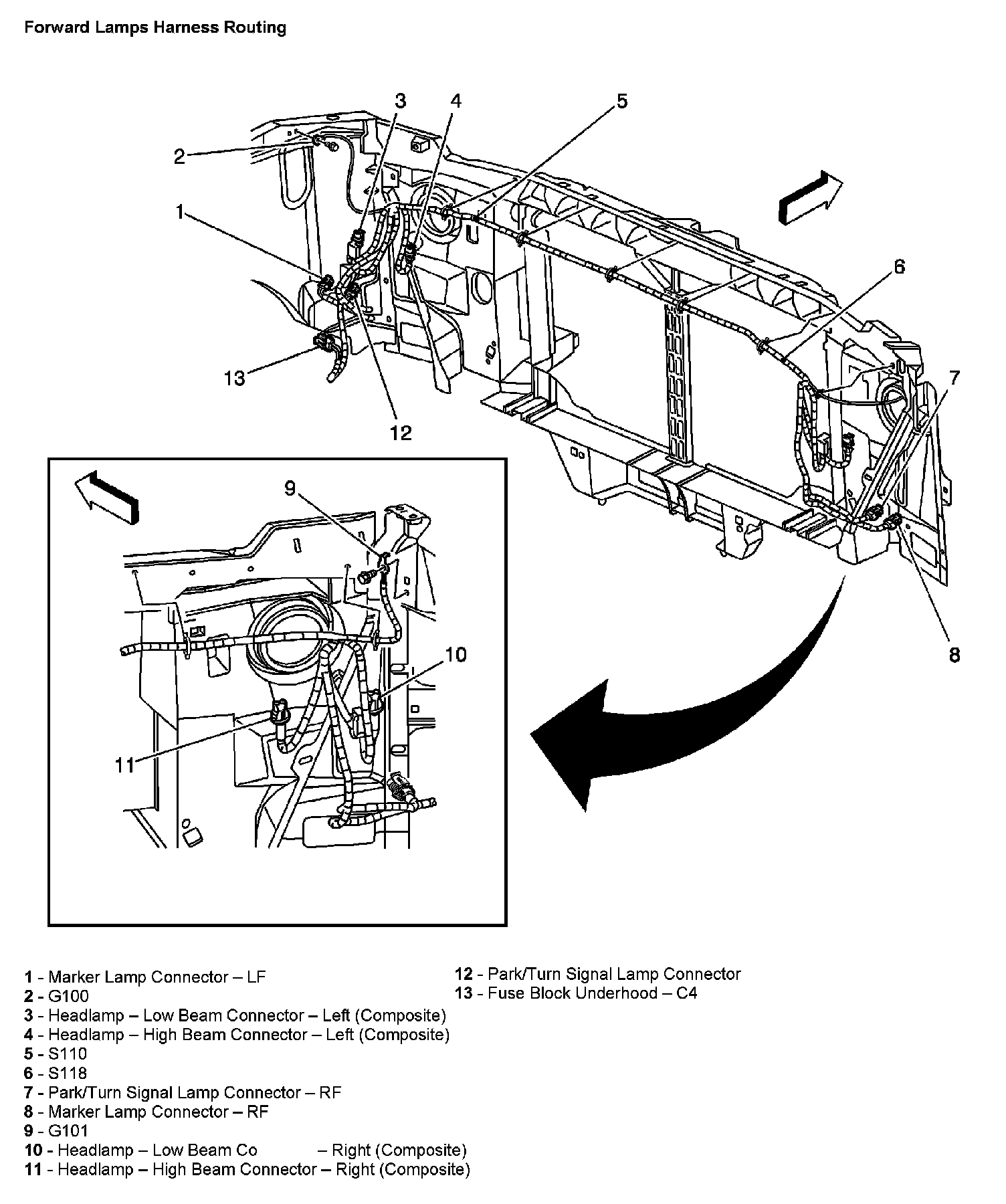

Forward Lamps Harness Routing

Forward Lamps Harness Routing:
