Engine Harness - Oxygen Sensors
Engine Harness - Oxygen Sensors

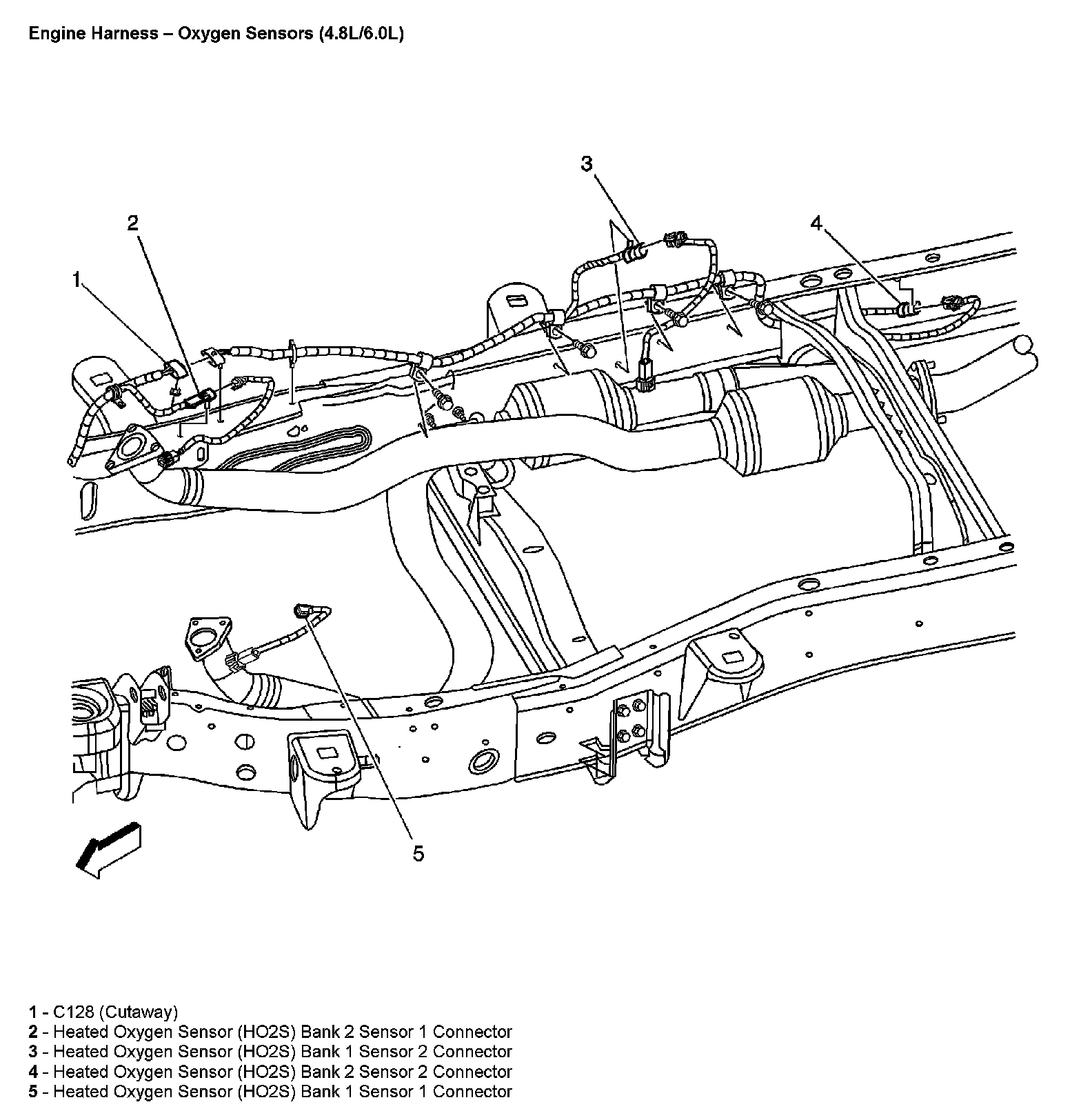

Engine Harness - Oxygen Sensors (4.8L/6.0L):
