Fourth Clutch Assembly

Disassembled Views

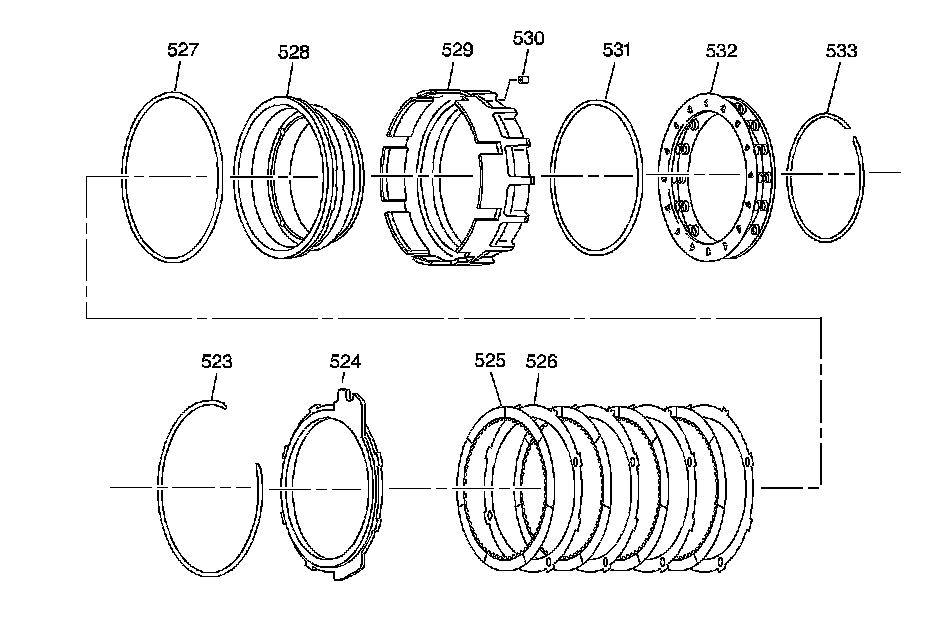

Fourth Clutch Assembly

Fourth Clutch Assembly:

523 - 4th Clutch Backing Plate Retainer Ring
524 - 4th Clutch Backing Plate
525 - 4th Clutch Plate Assembly
526 - 4th Clutch Plate
527 - 4th Clutch Piston Inner Seal
528 - 4th Clutch Piston
529 - 4th Clutch Housing
530 - 4th Clutch Orifice
531 - 4th Clutch Piston Outer Seal
532 - 4th Clutch Spring Assembly
533 - 4th Clutch Spring Retainer Ring
