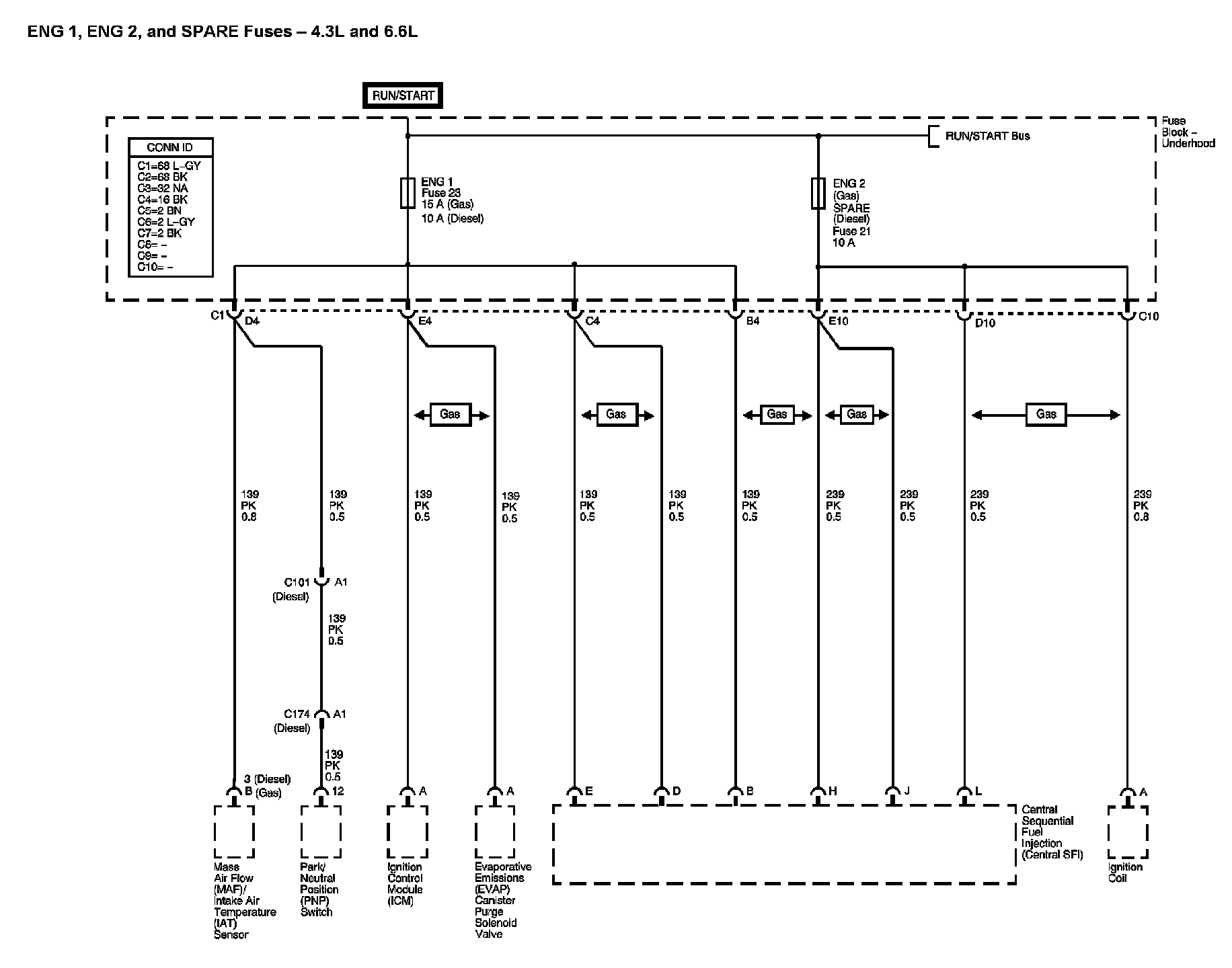

Power Distribution Diagram 15



Power Distribution Diagram 15:






Next Diagram: Power Distribution Diagram 16

Previous Diagram: Power Distribution Diagram 14

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
