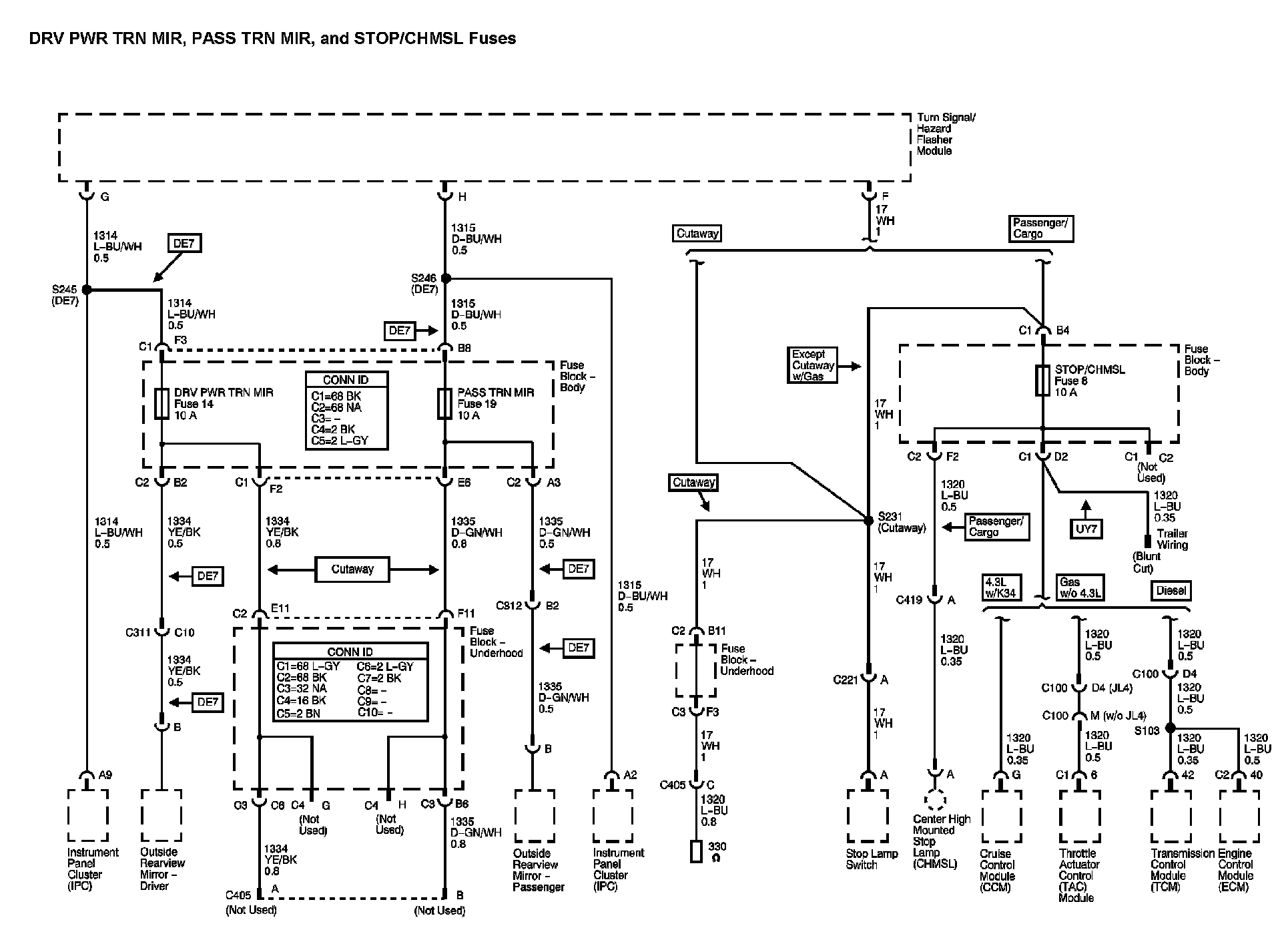

Power Distribution Diagram 10



Power Distribution Diagram 10:






Next Diagram: Power Distribution Diagram 11

Previous Diagram: Power Distribution Diagram 9

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
