Outside Rearview Mirror Schematics

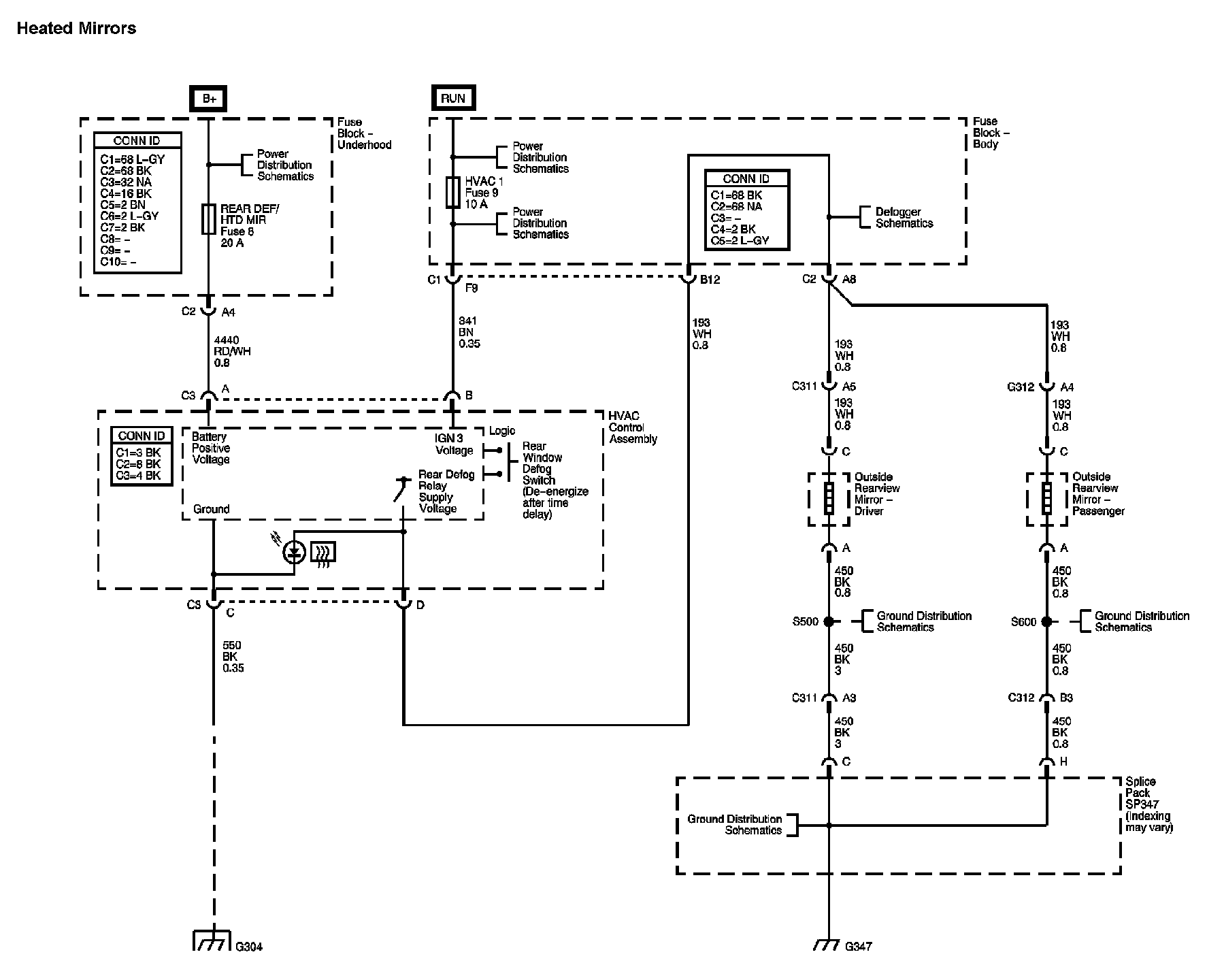

Outside Rearview Mirror Diagram 1:

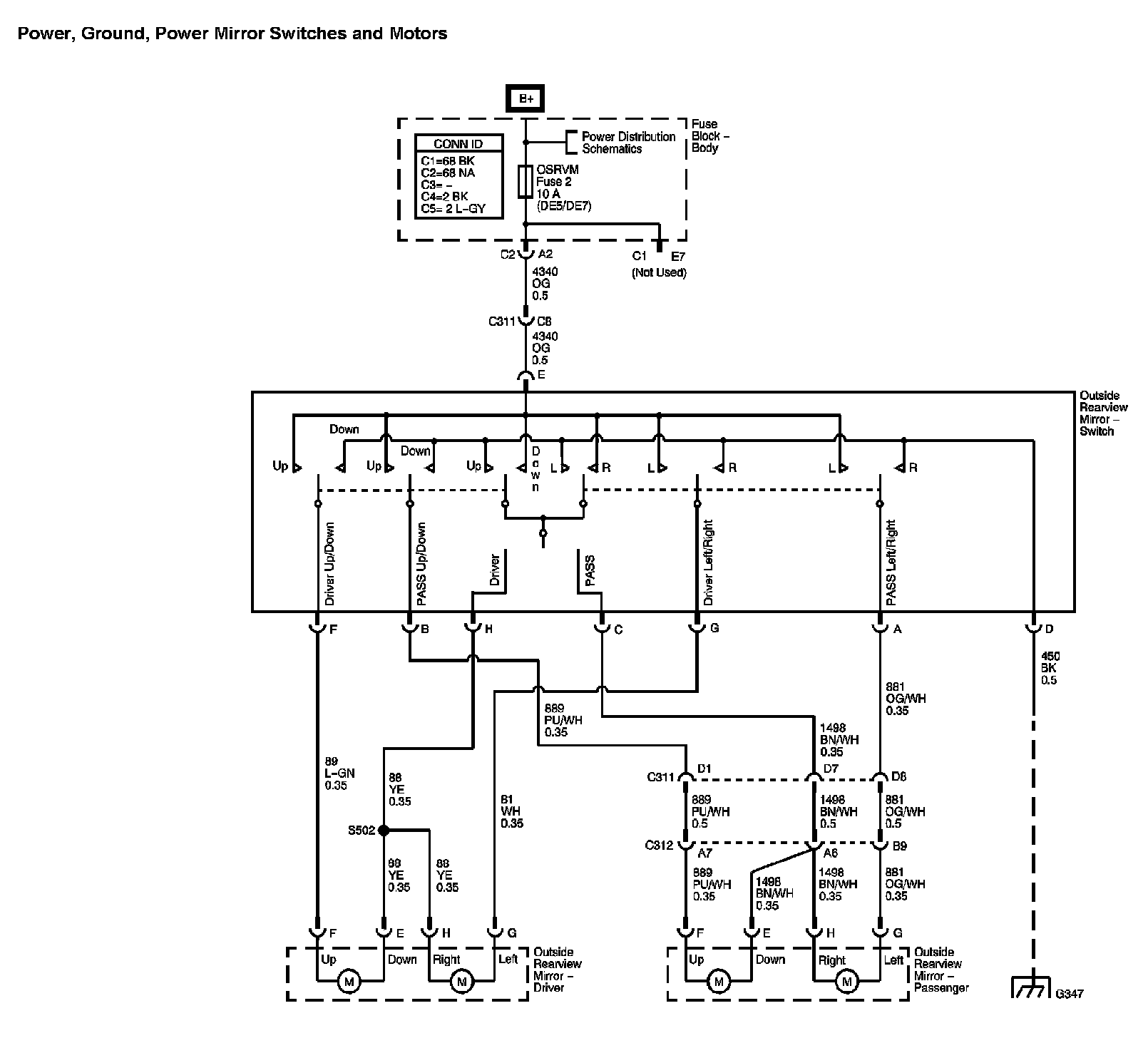

Outside Rearview Mirror Diagram 2:

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
