Door Lock/Indicator Diagrams

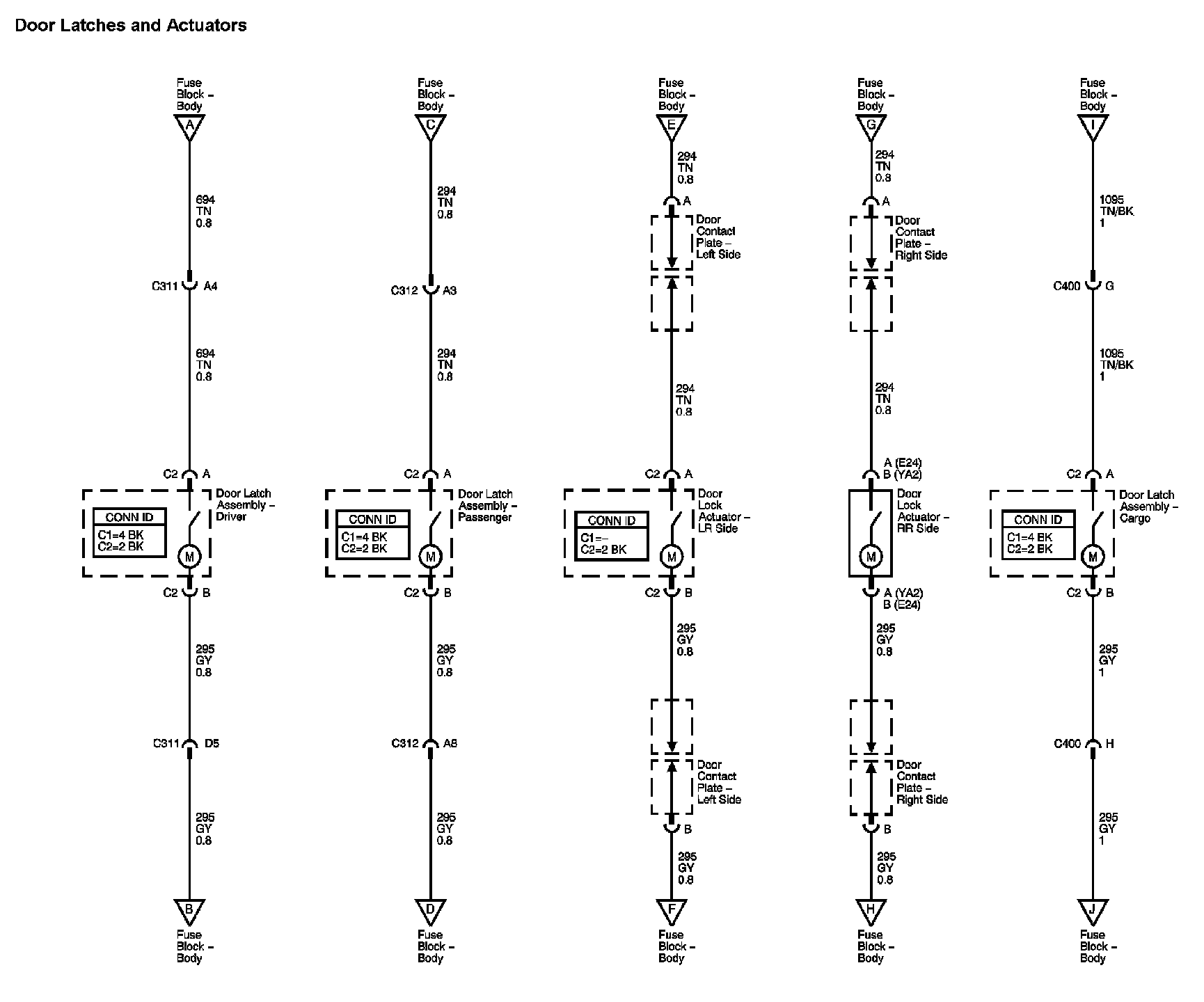

Door Lock/Indicator Diagram 1:

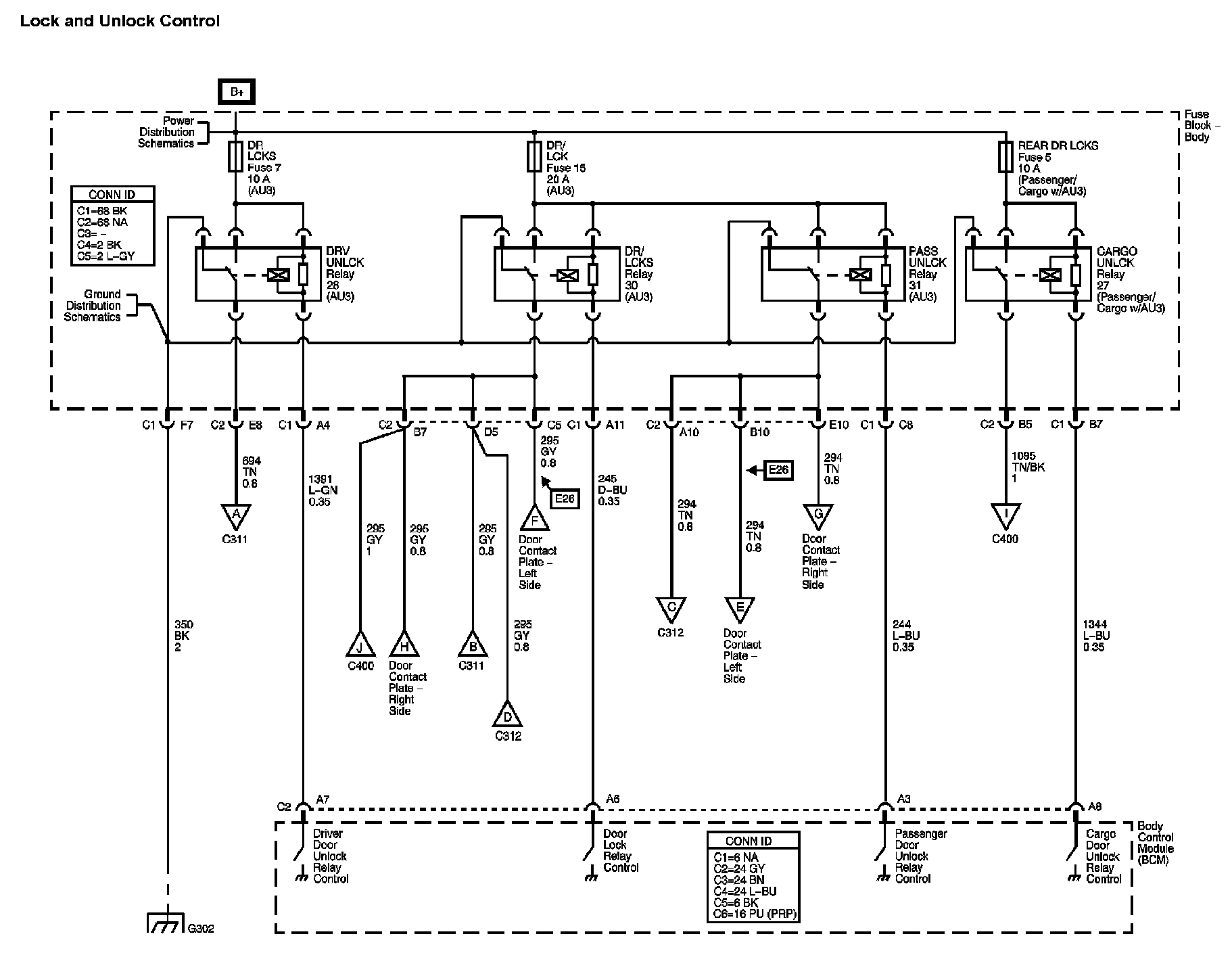

Door Lock/Indicator Diagram 2:

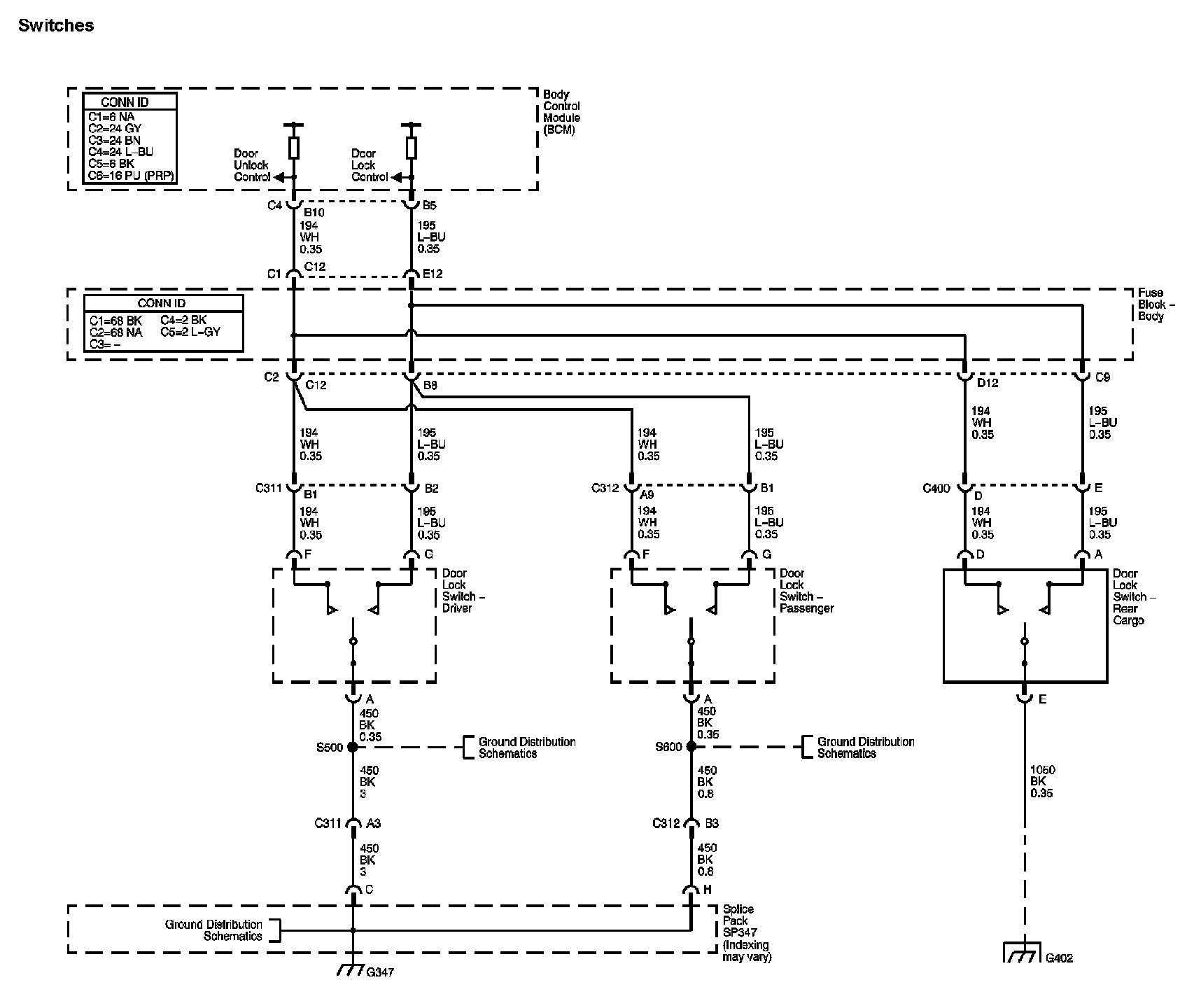

Door Lock/Indicator Diagram 3:

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
