Instrument Cluster Schematics



Instrument Cluster Schematics

Power, Ground, and Serial Data

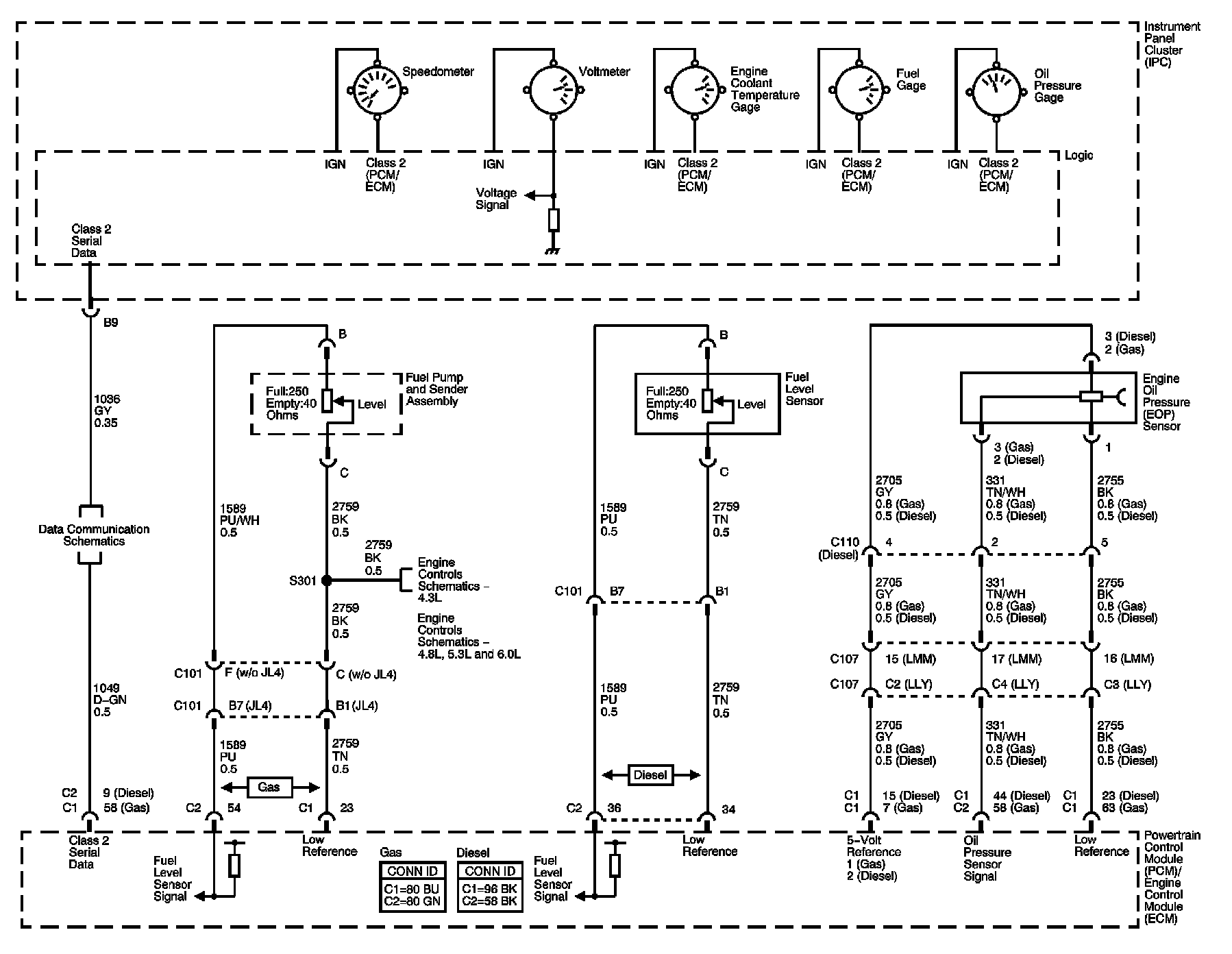

Gages

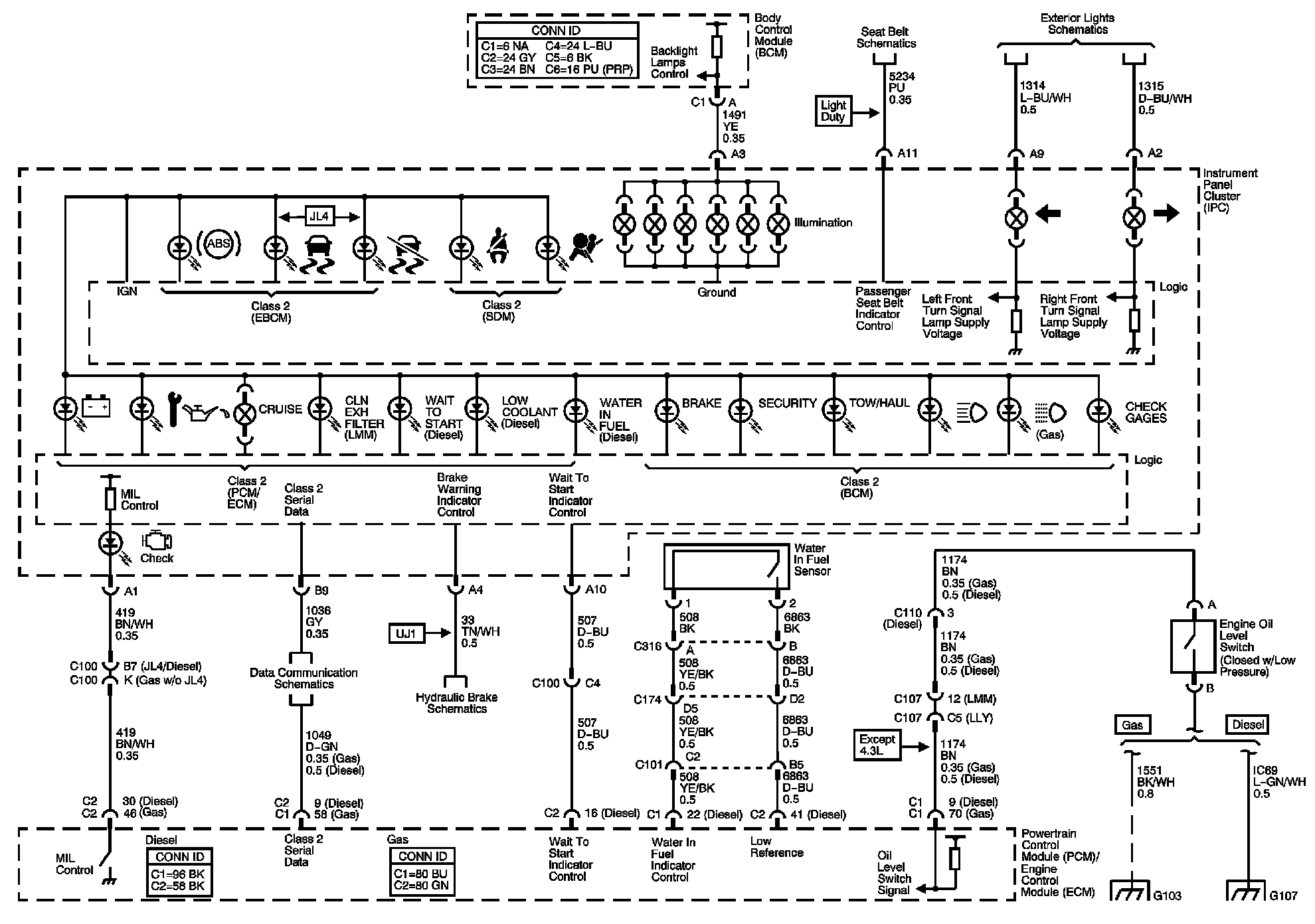

Indicators






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
