Hydraulic System, Brakes

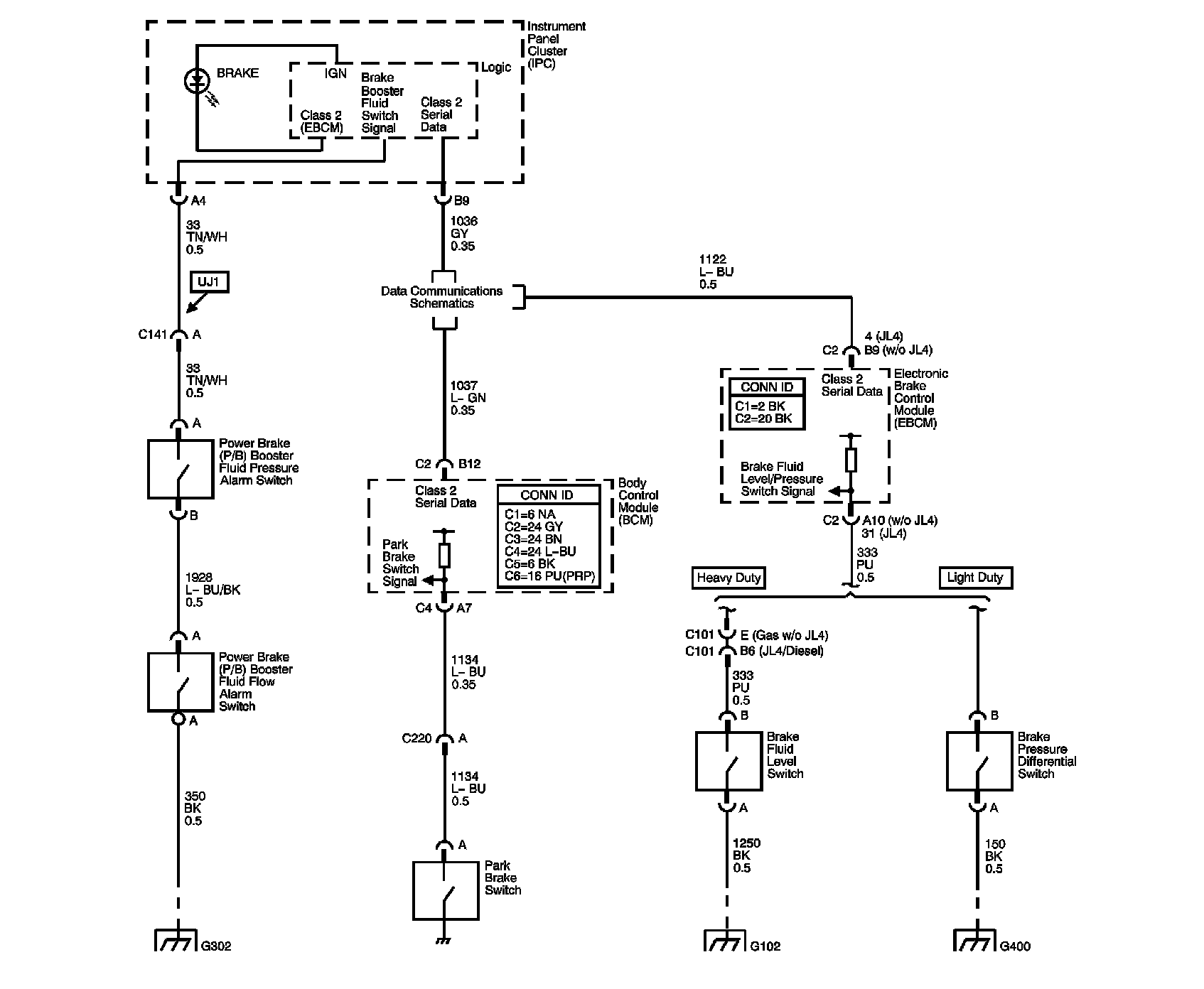

Hydraulic Brake Schematics

Hydraulic Brake Schematics:





Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
