Heating and Air Conditioning

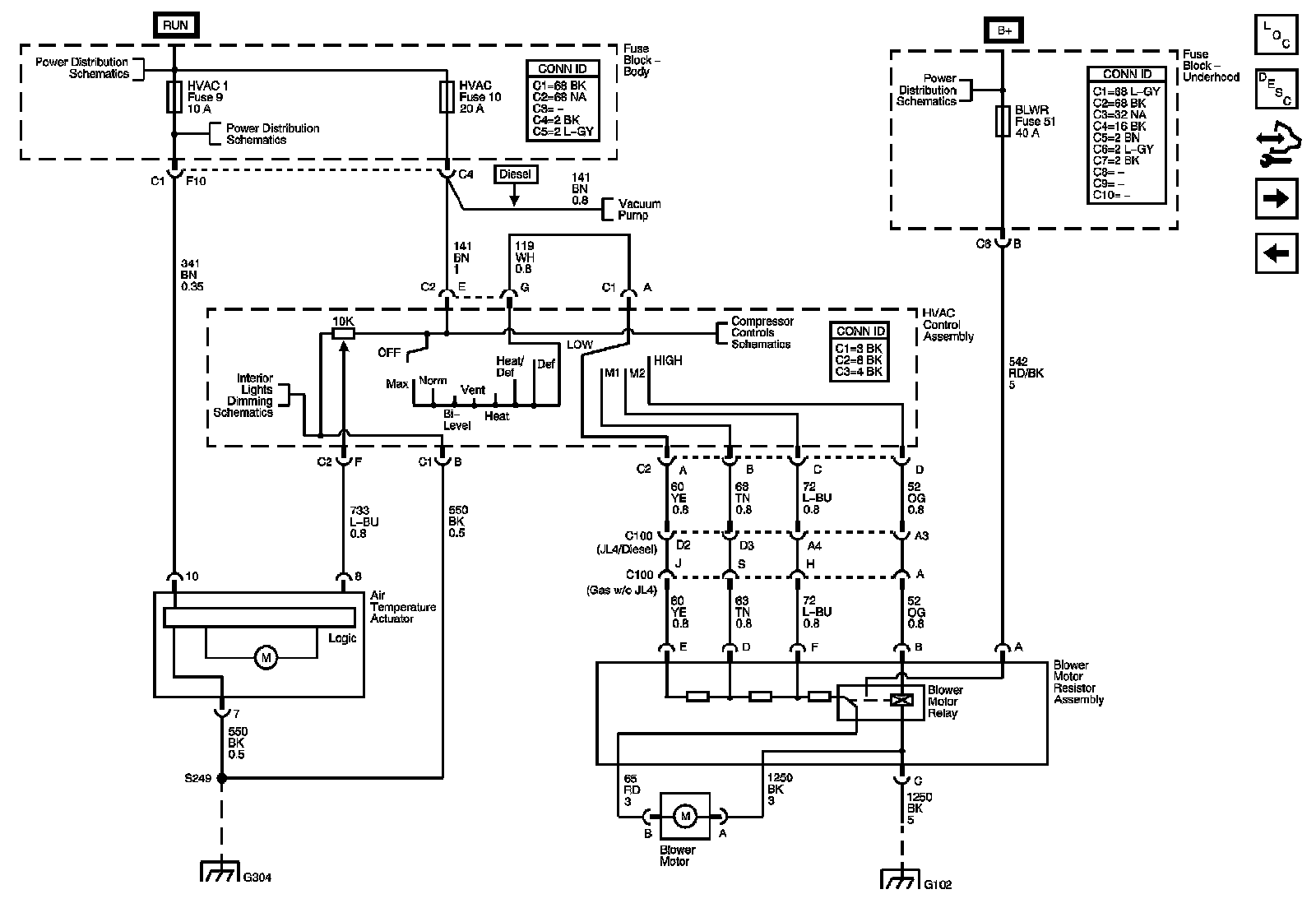

Primary Blower and Air Delivery Controls - C42 and Vacuum Pump - Diesel

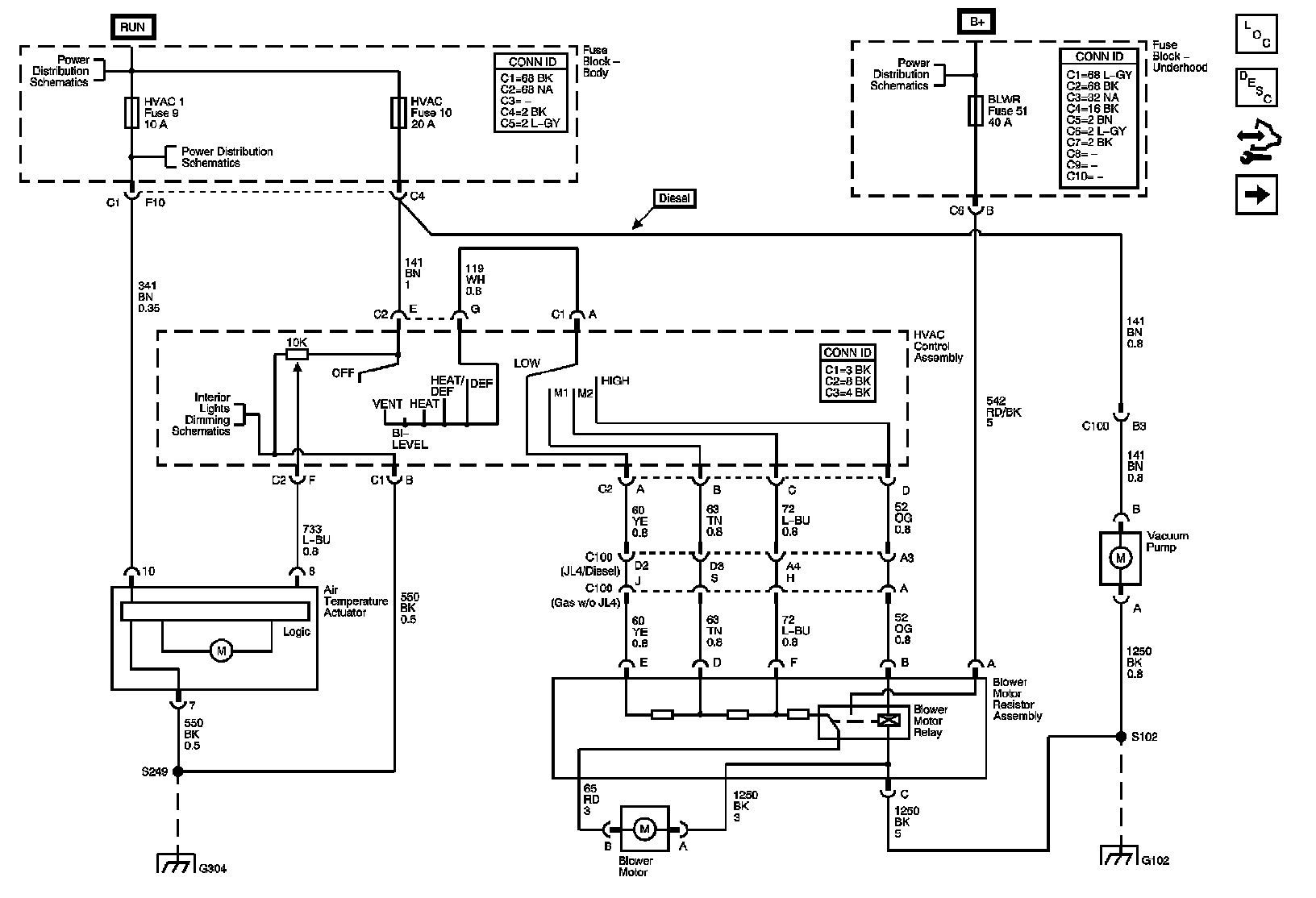

Primary Blower and Air Delivery Controls - C60

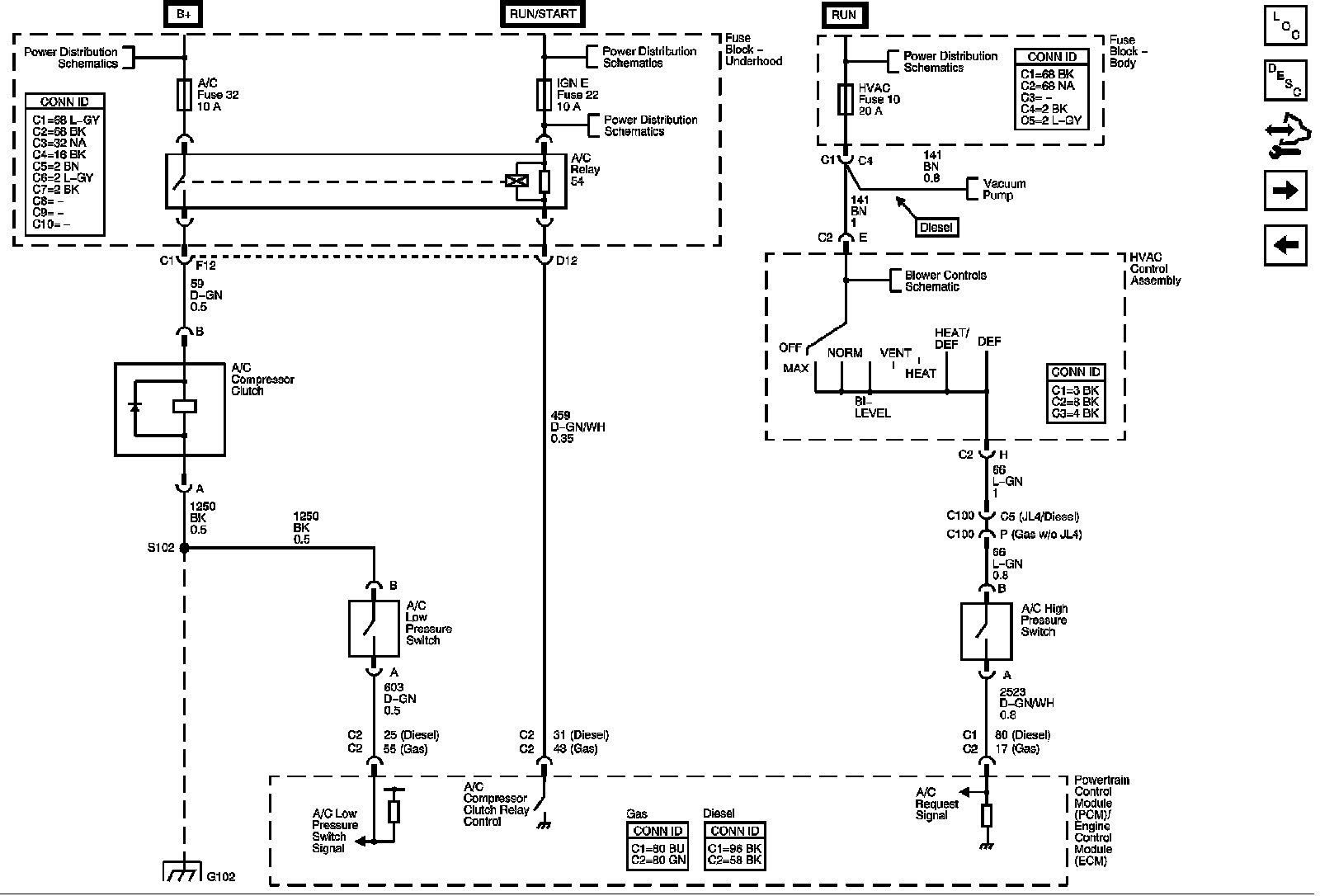

Compressor Controls - C60

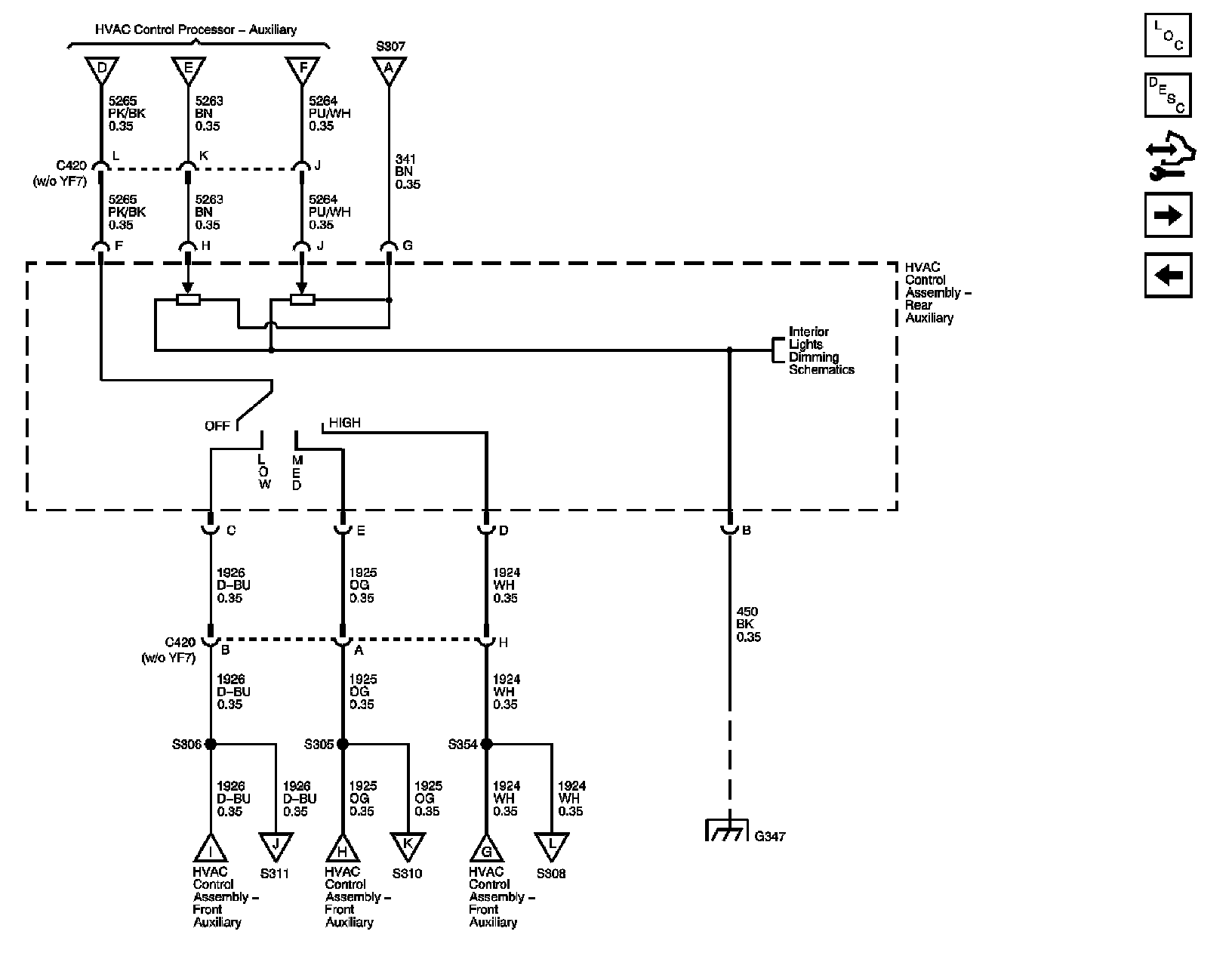

Rear HVAC with Rear Auxiliary Controls 1 of 3 - C69

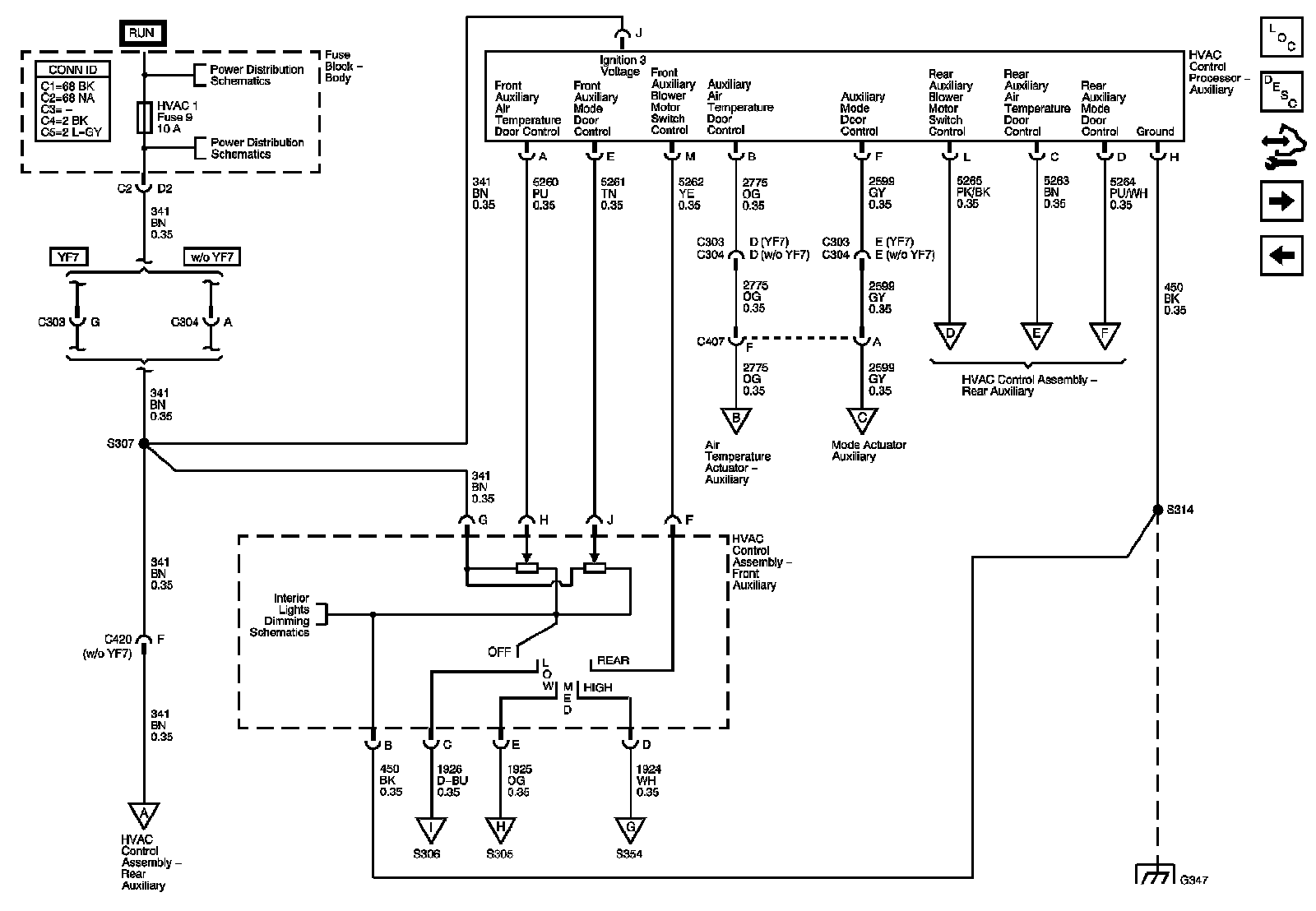

Rear HVAC with Rear Auxiliary Controls 2 of 3 - C69






Rear HVAC with Rear Auxiliary Controls 3 of 3 - C69

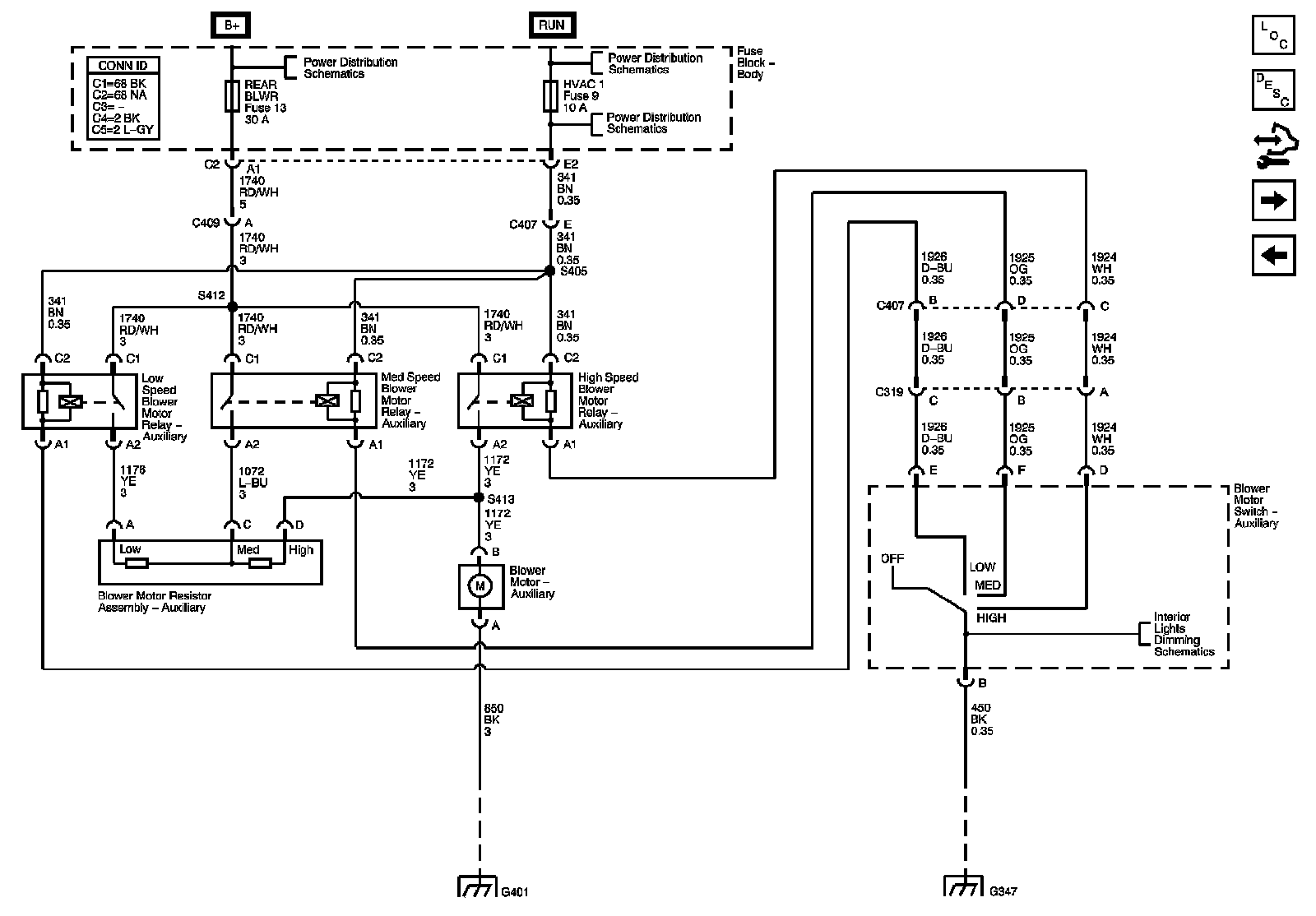

Rear HVAC w/o Rear Auxiliary Controls 1 of 2 - C69






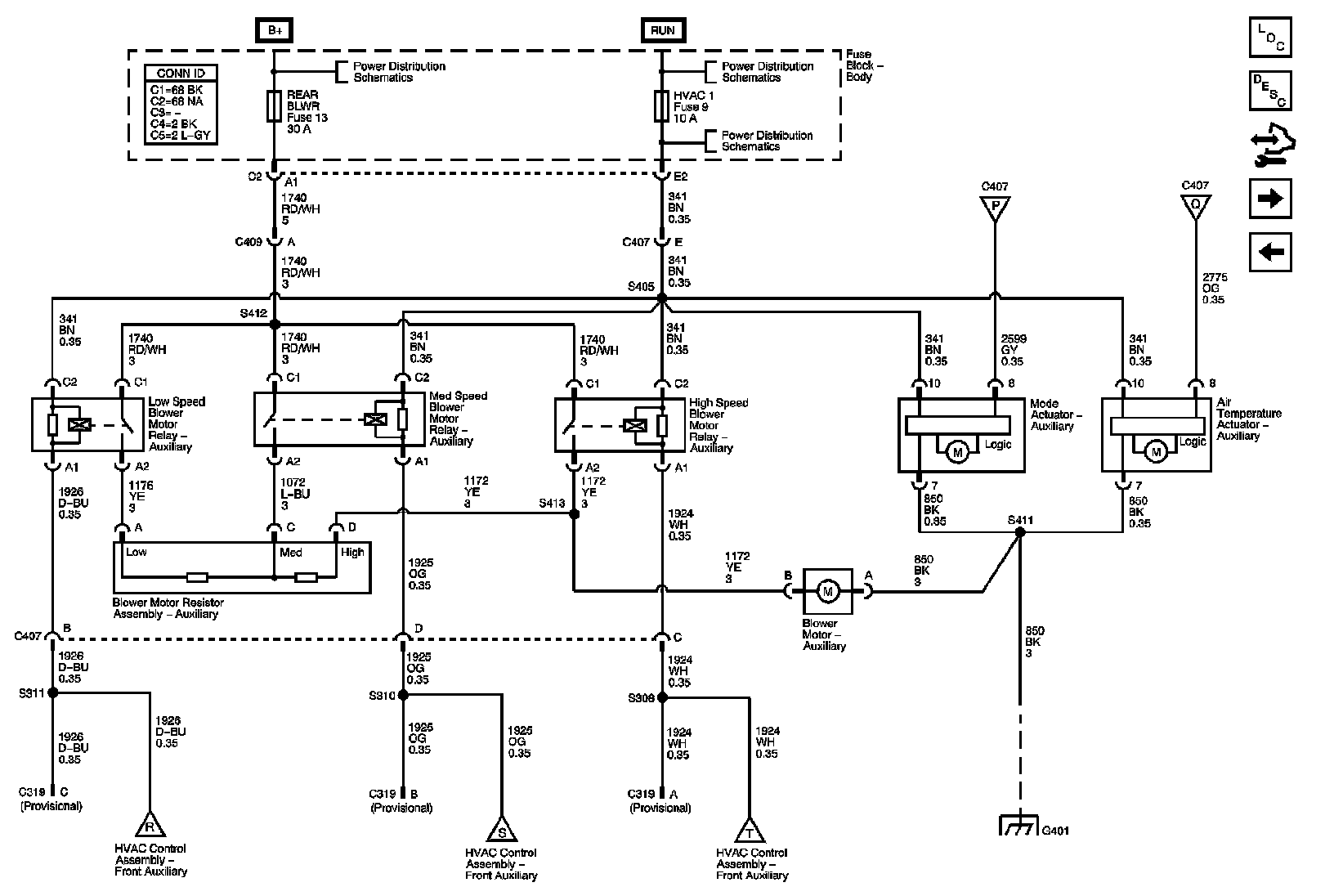

Rear HVAC w/o Rear Auxiliary Controls 2 of 2 - C69

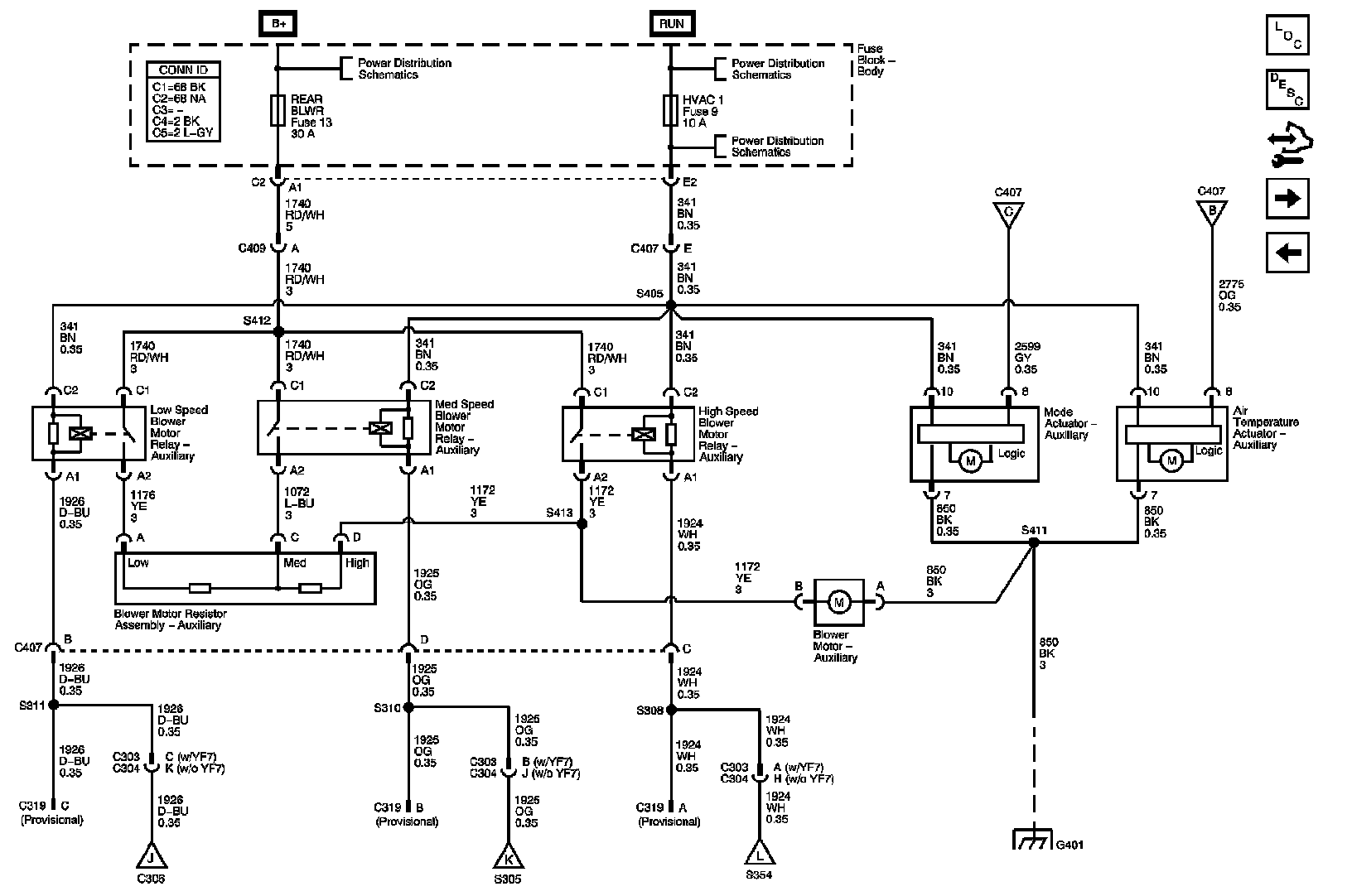

Rear HVAC - C36 w/o C69

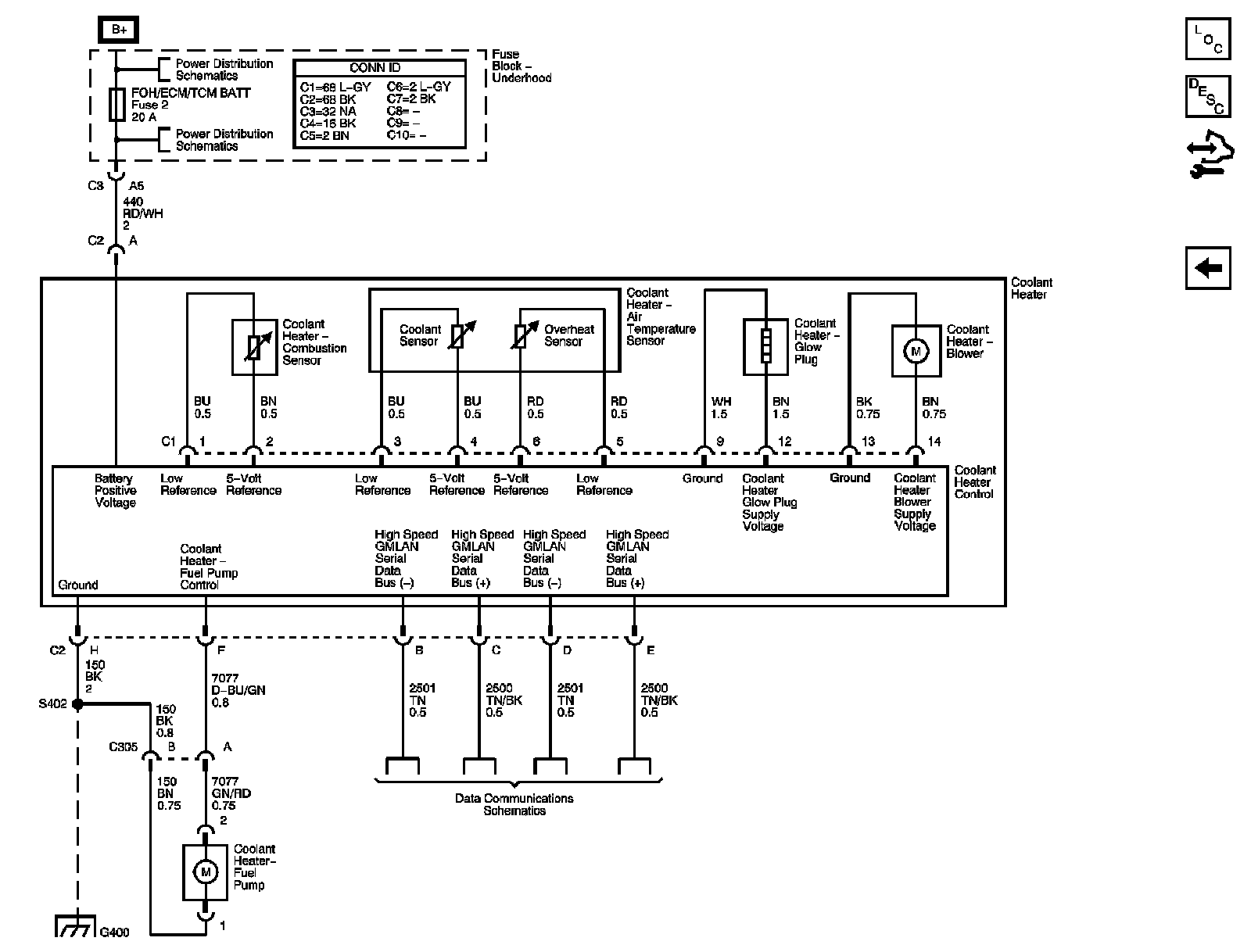

Coolant Heater (K08)
