Cruise Control

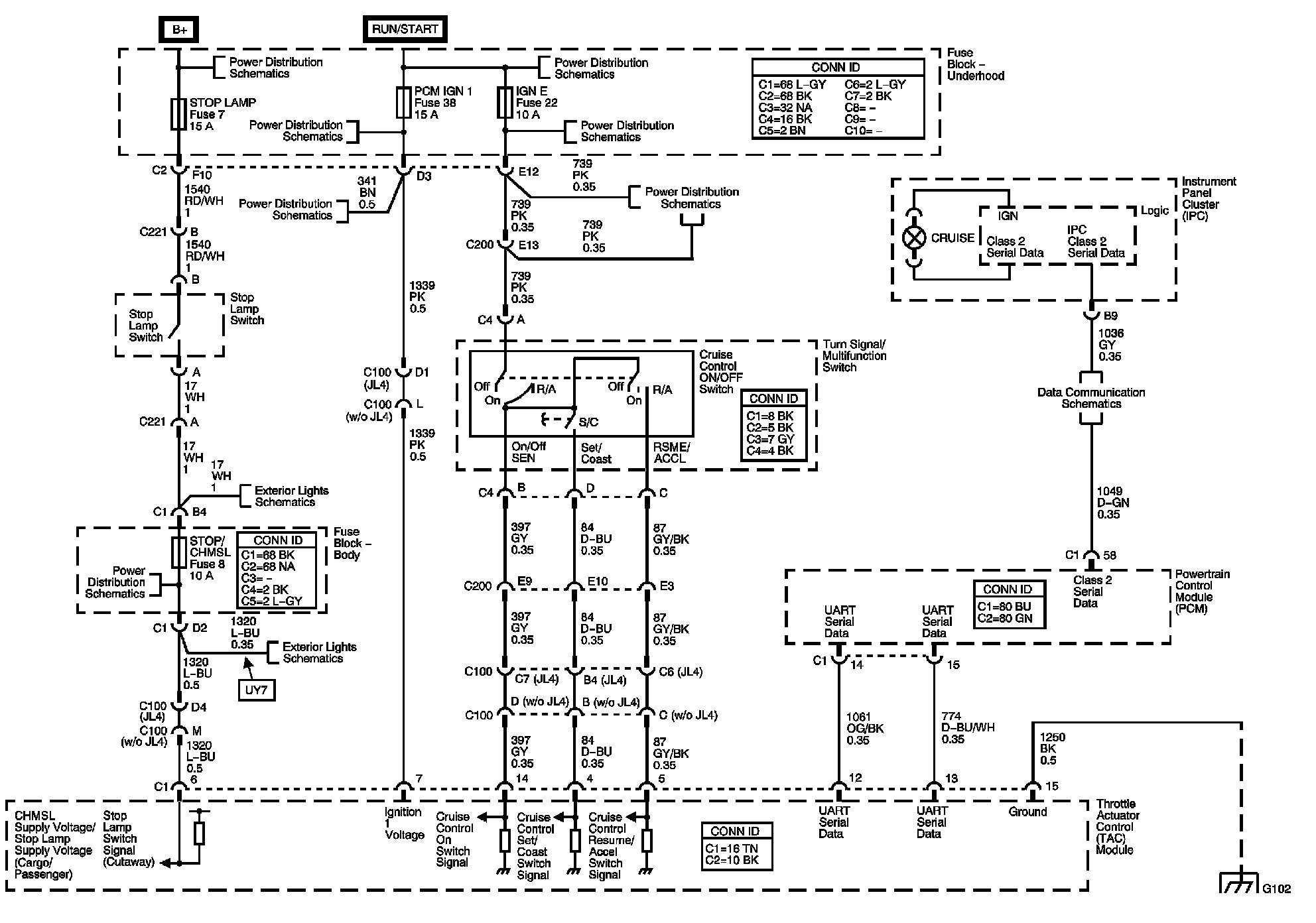

Cruise Control Schematics

4.8L, 5.3L and 6.0L






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
