Antilock Brake System Schematics

Antilock Brake System Schematics

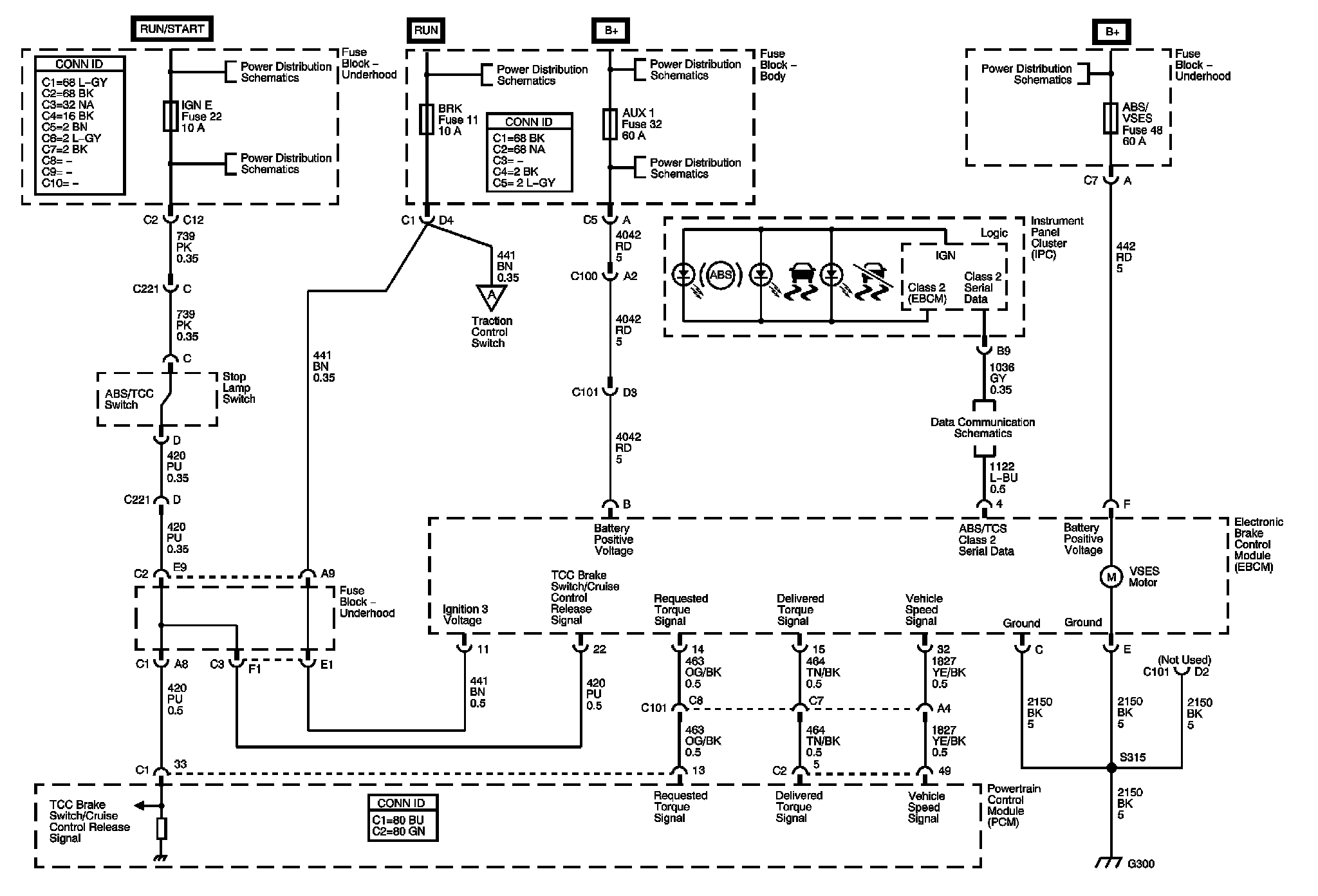

Antilock Brake System Schematics 1:

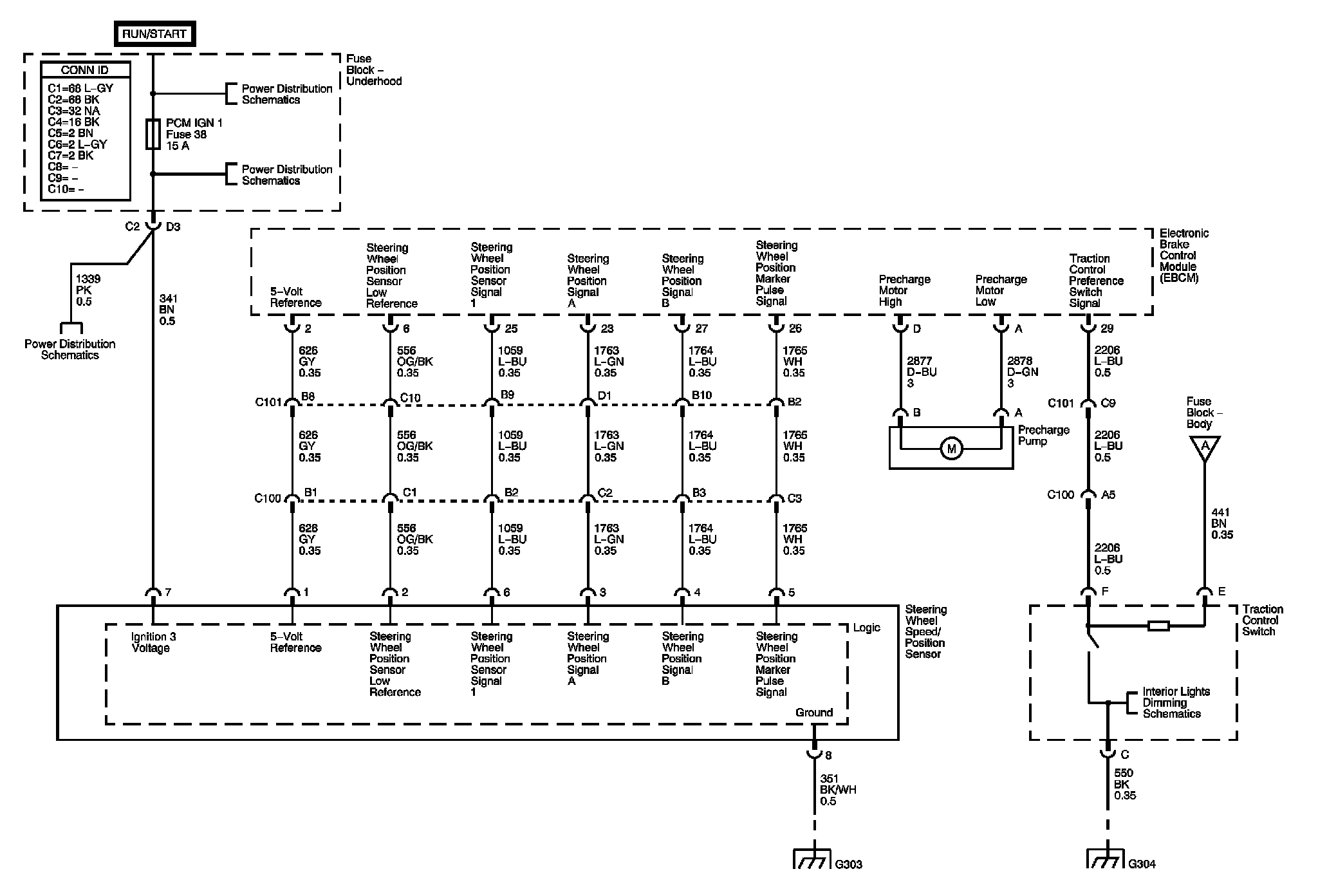

Antilock Brake System Schematics 2:

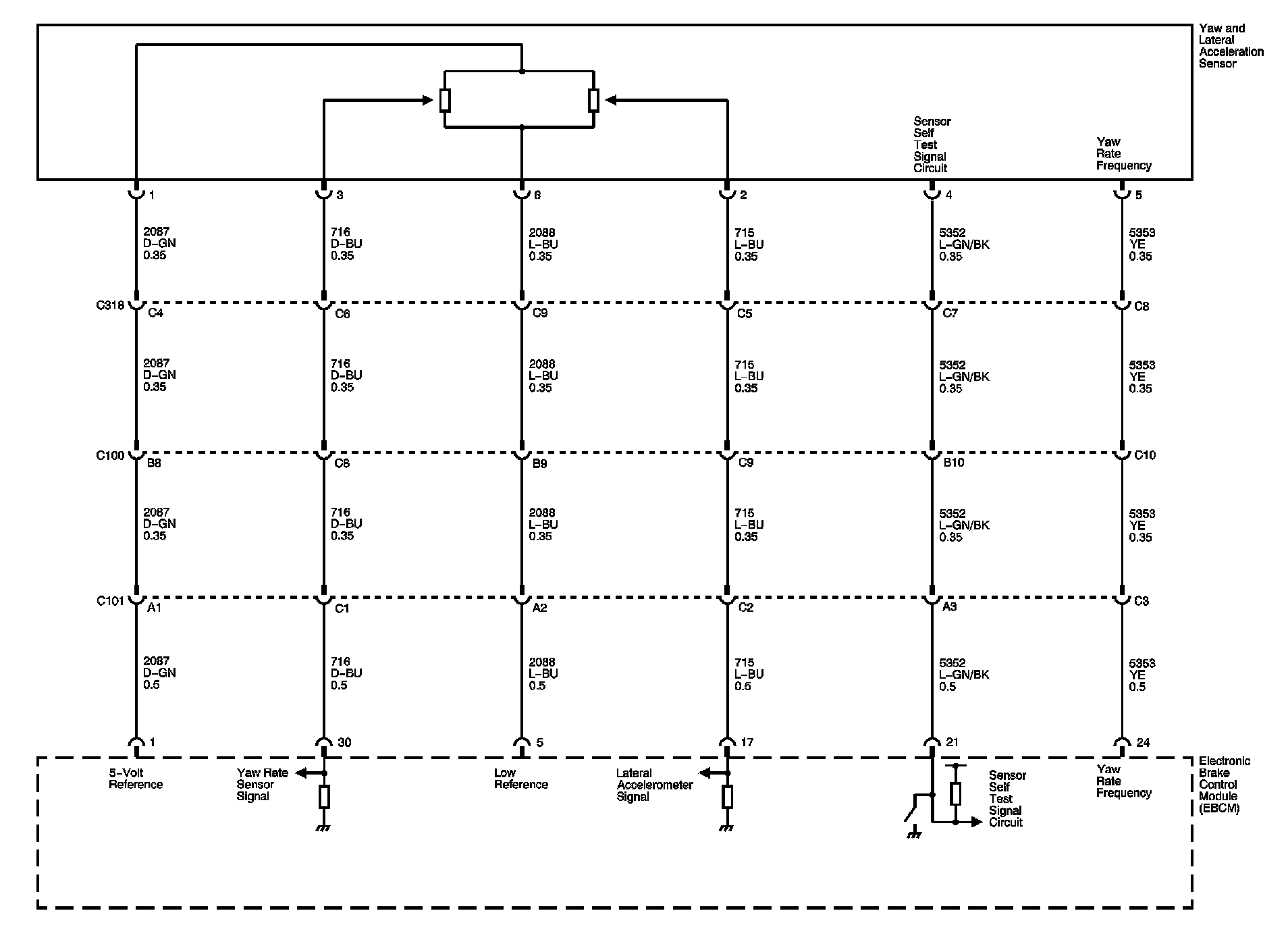

Antilock Brake System Schematics 3:

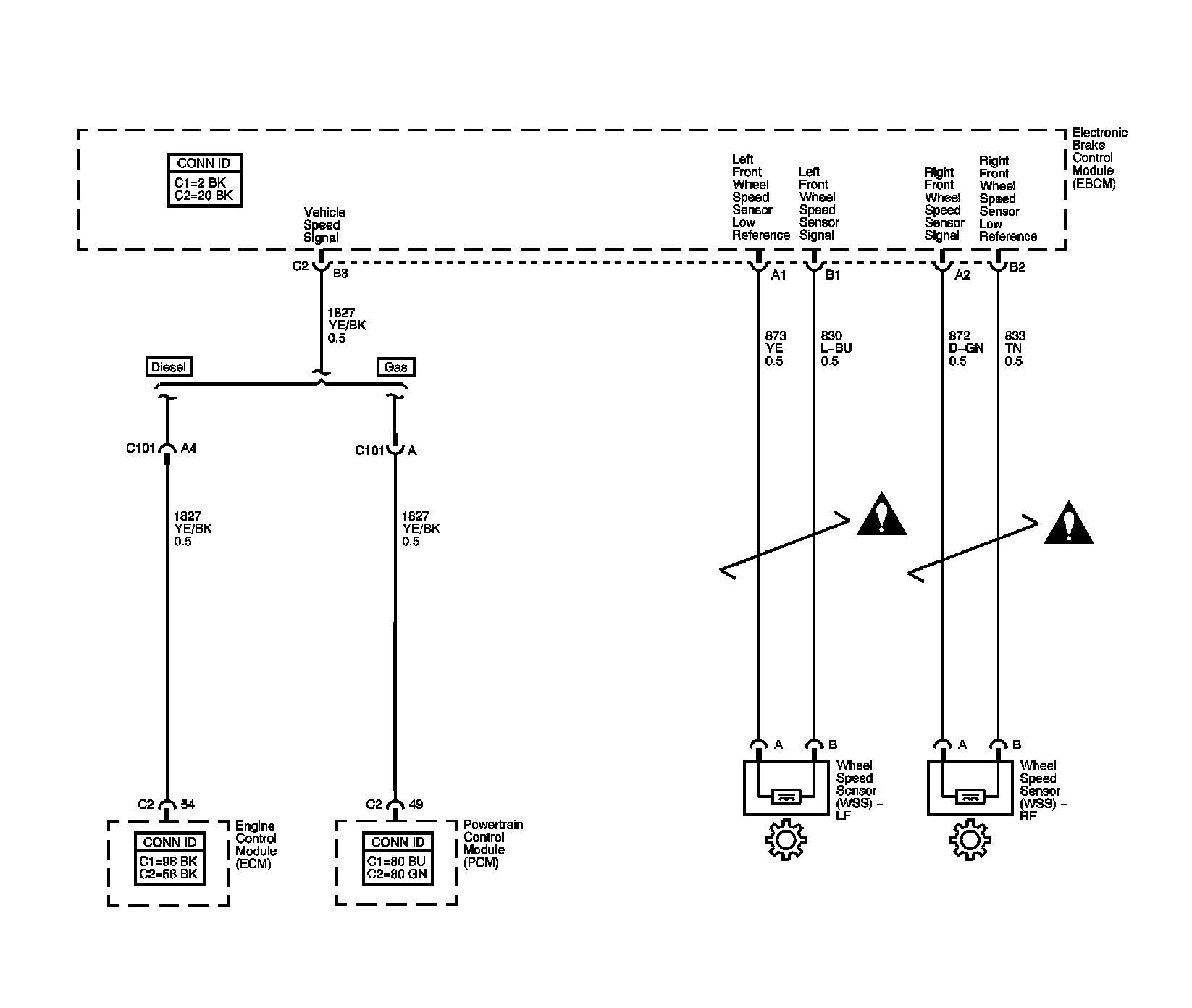

Antilock Brake System Schematics 4:

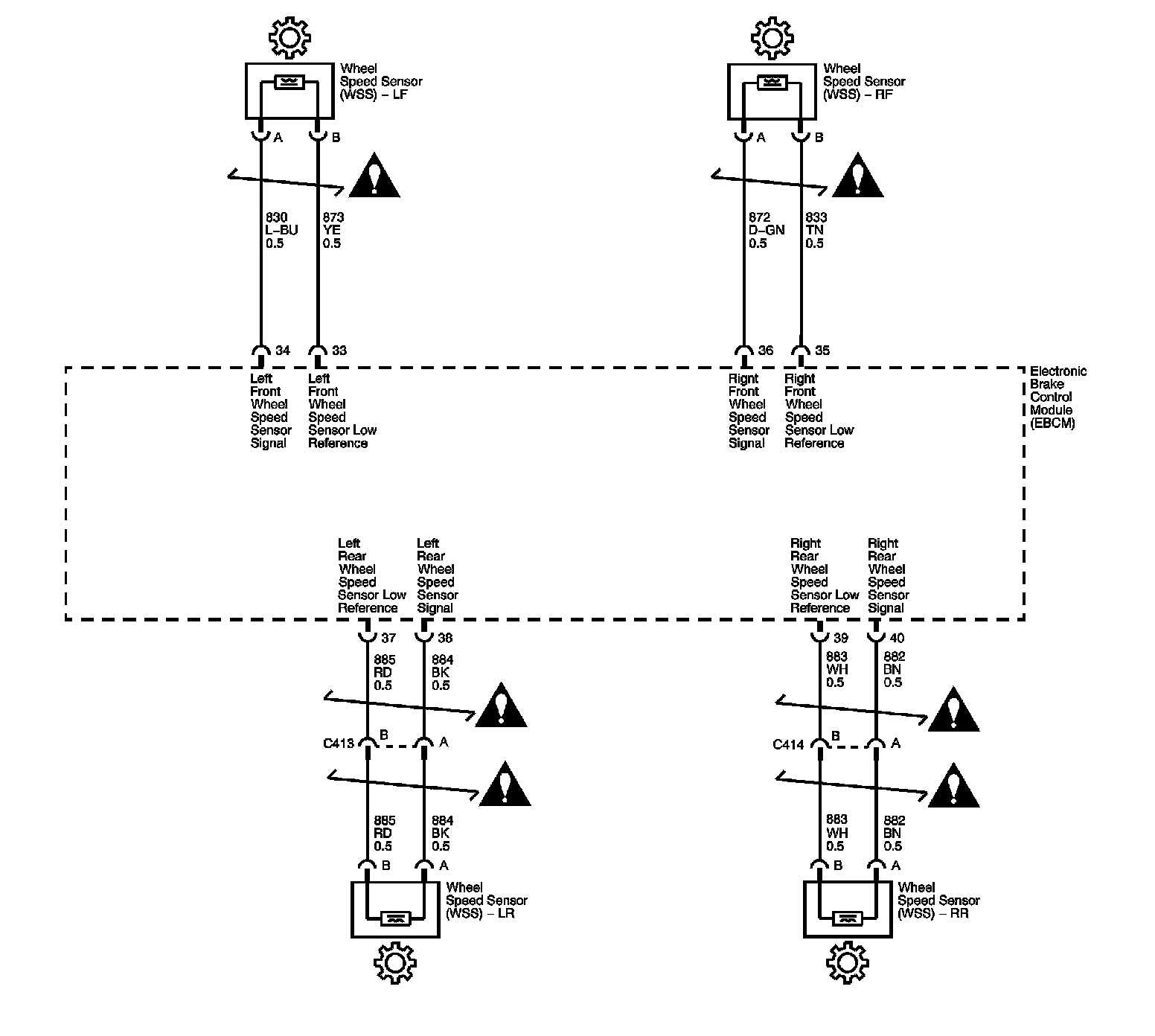

Antilock Brake System Schematics 5:

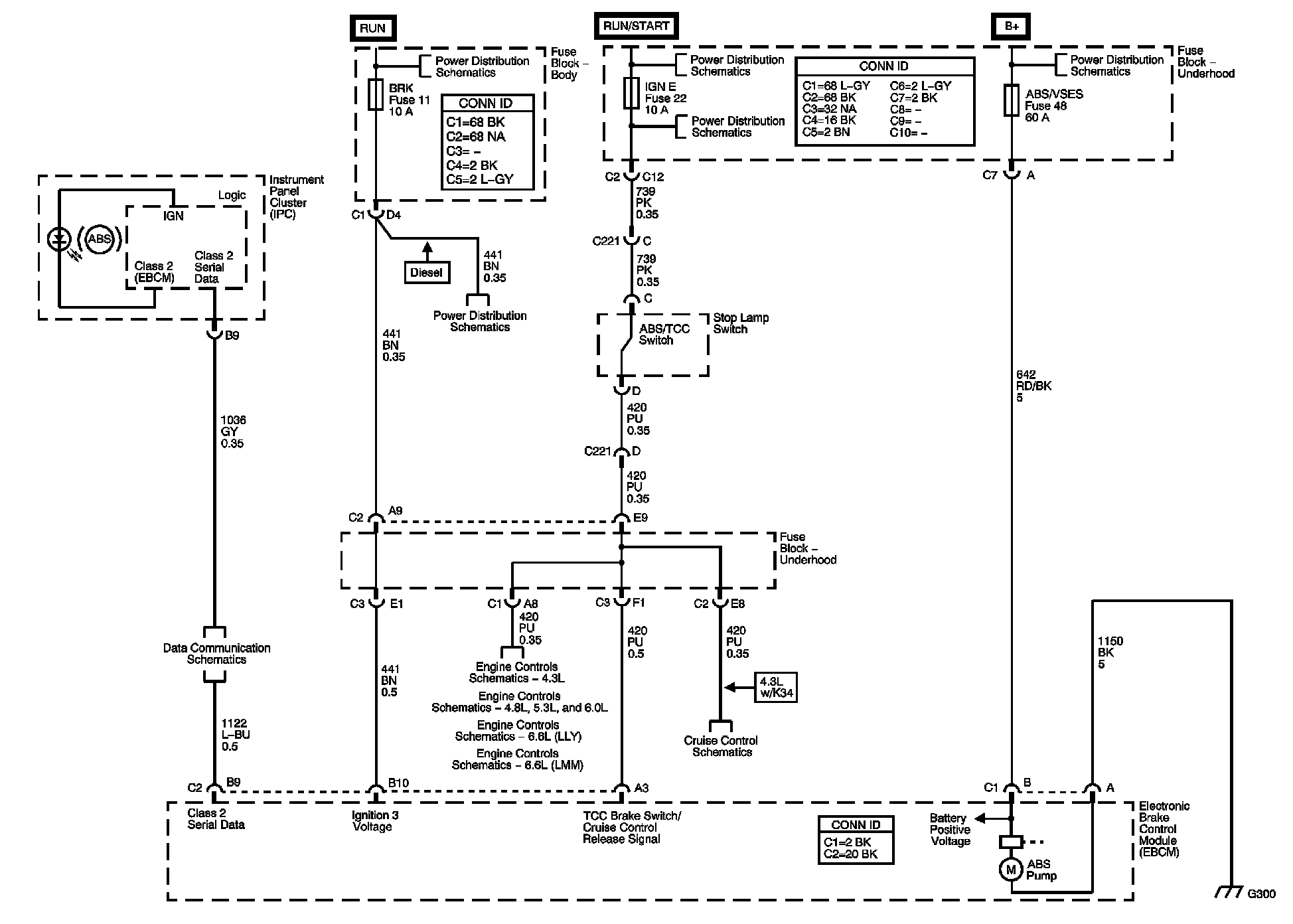

Antilock Brake System Schematics 6:

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
