Home >> Chevrolet >> 2007 >> Express 2500 V8-4.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Transmission Control Systems >> 4L80-E/4L85-E Automatic Transmission

4L80-E/4L85-E Automatic Transmission



Automatic Transmission Inline 20-Way Connector End View

C175 Engine Side to Transmission Side

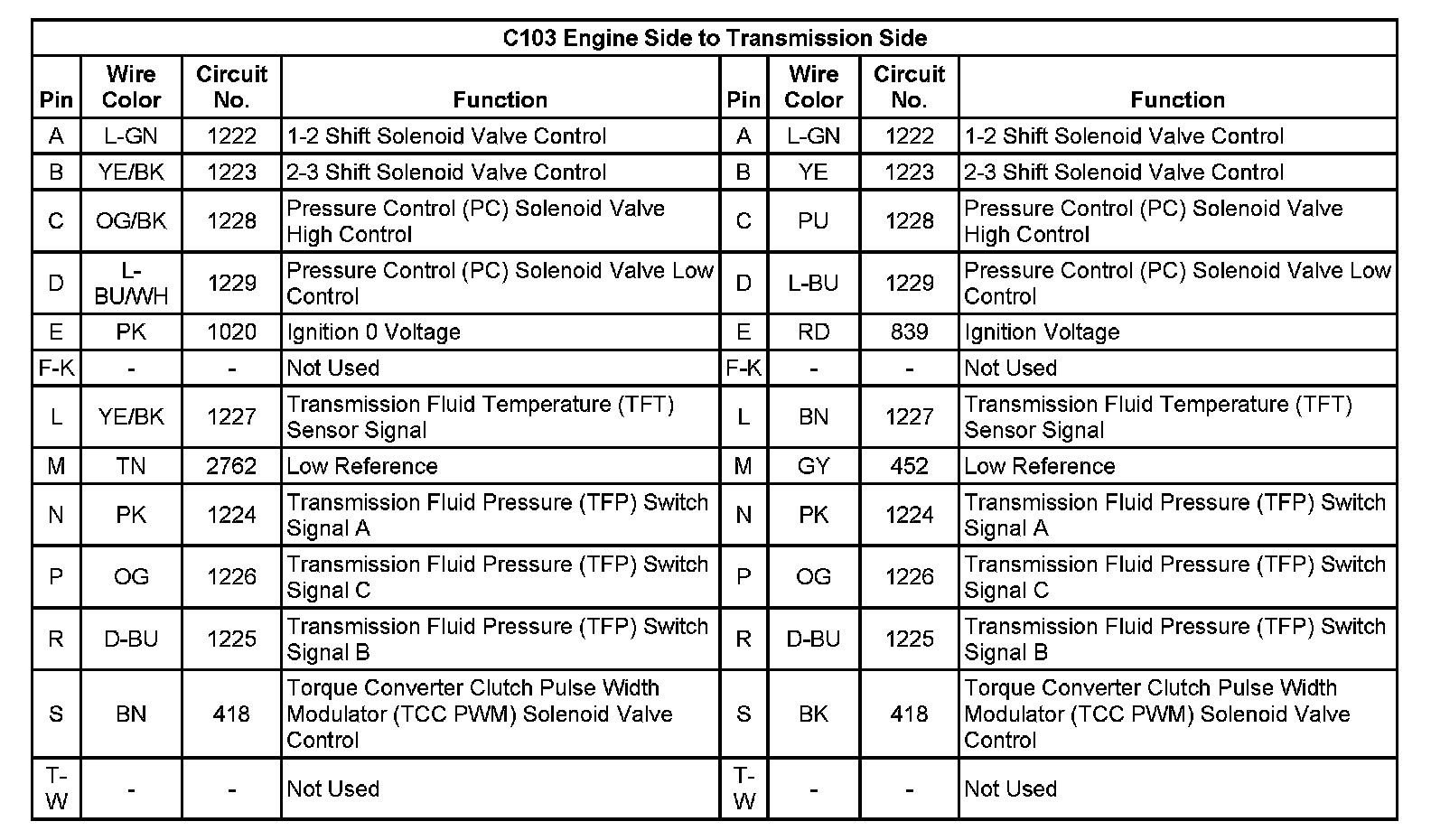

C103 Engine Side To Transmission Side:
