4L60-E/4L65-E/4L70-E Automatic Transmission



Automatic Transmission Inline 20-Way Connector End View

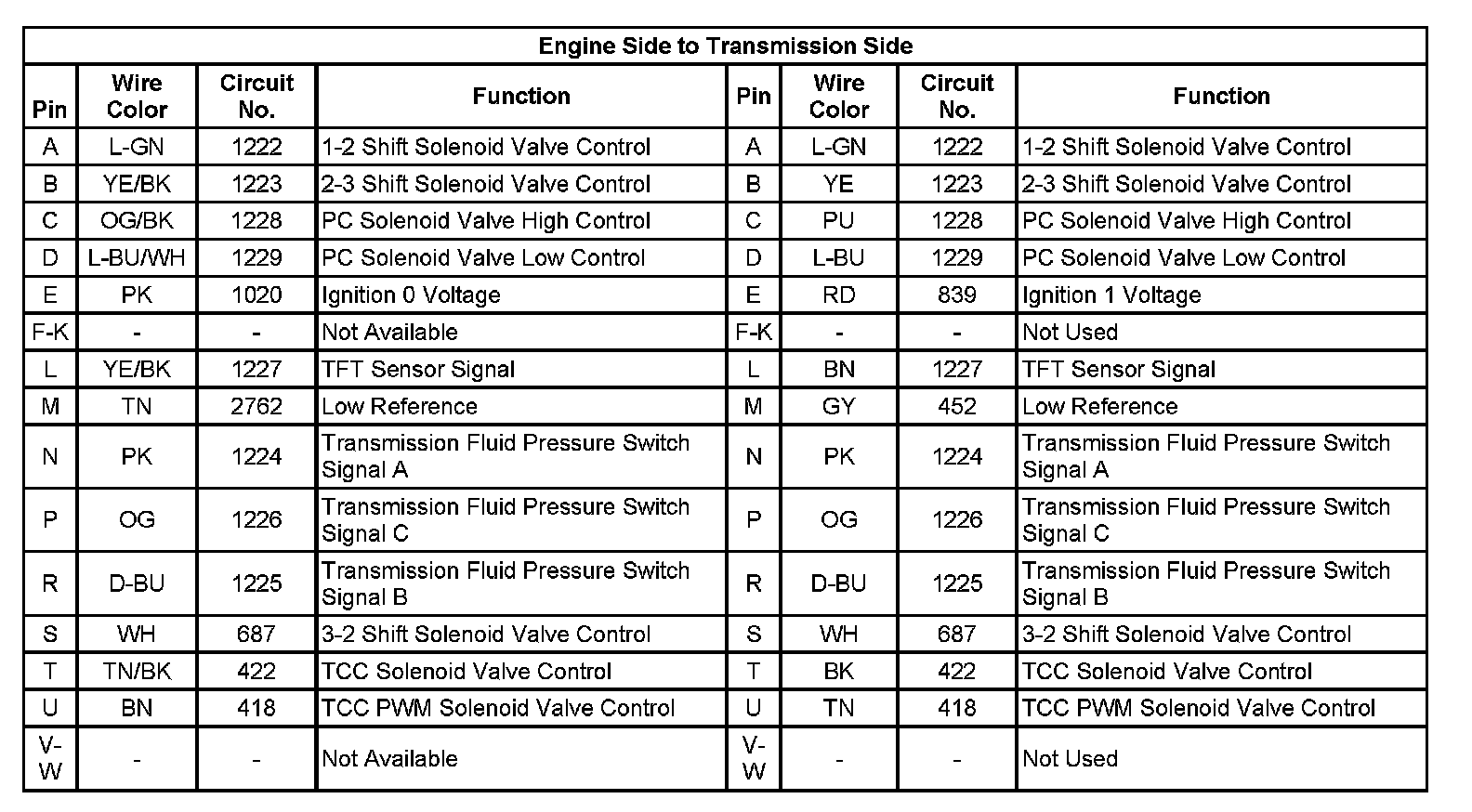

Engine Side to Transmission Side







Engine Side To Transmission Side:
