C409
C409

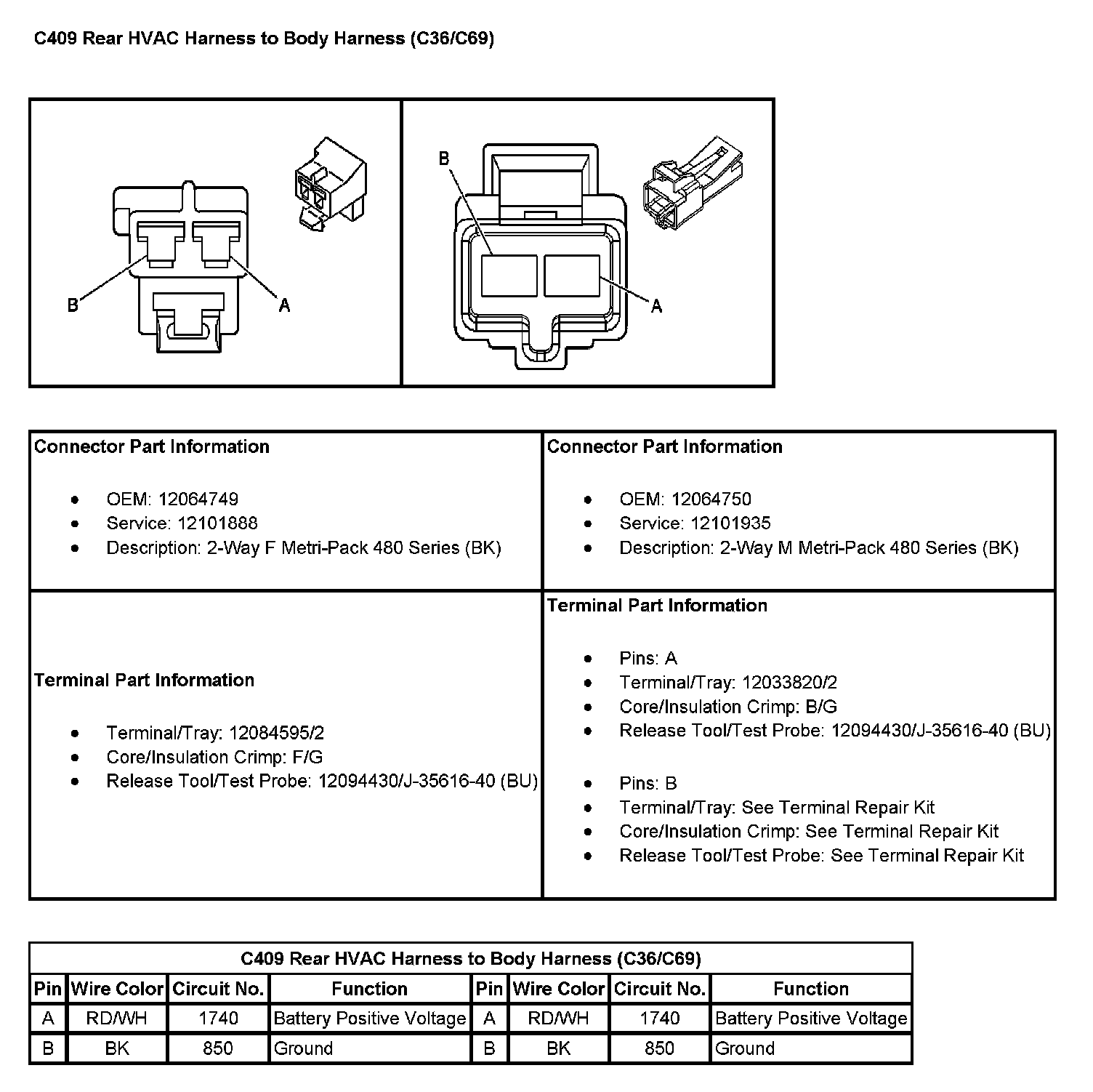

C409 Rear HVAC Harness To Body Harness (With RPO Codes C36/C69):

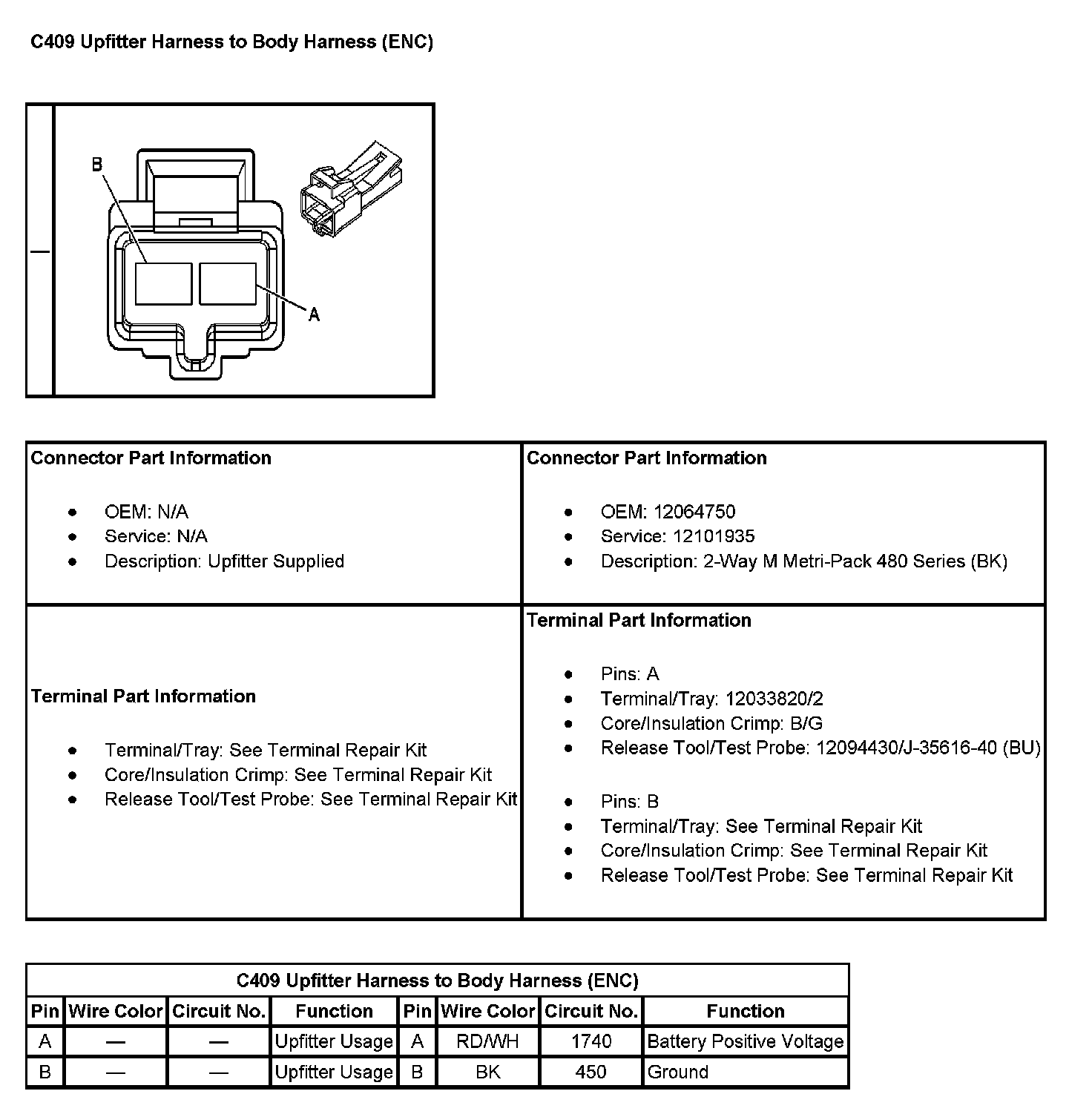

C409 Upfitter Harness To Body Harness (ENC):
