C407
C407

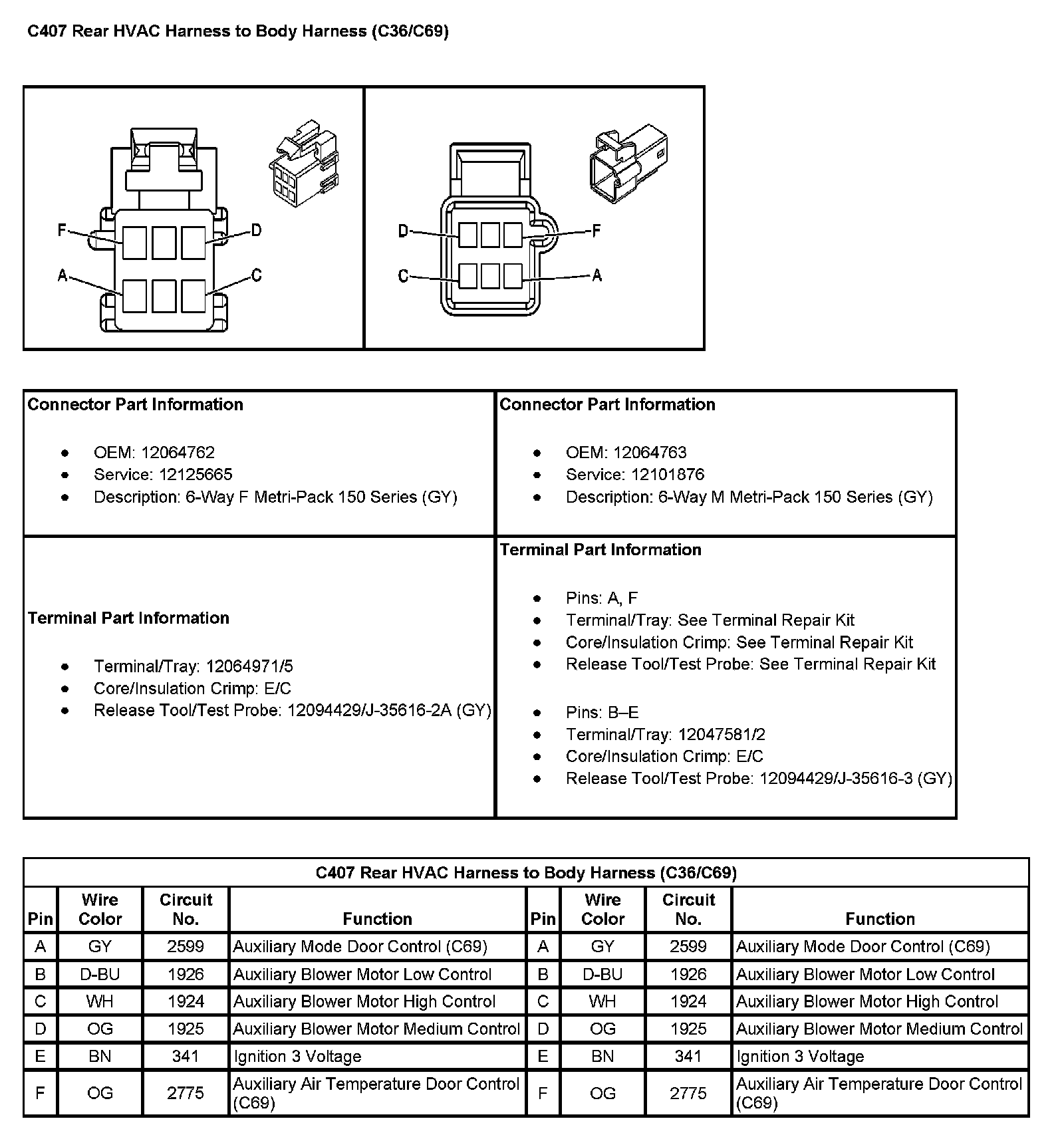

C407 Rear HVAC Harness To Body Harness (With RPO Codes C36/C69):

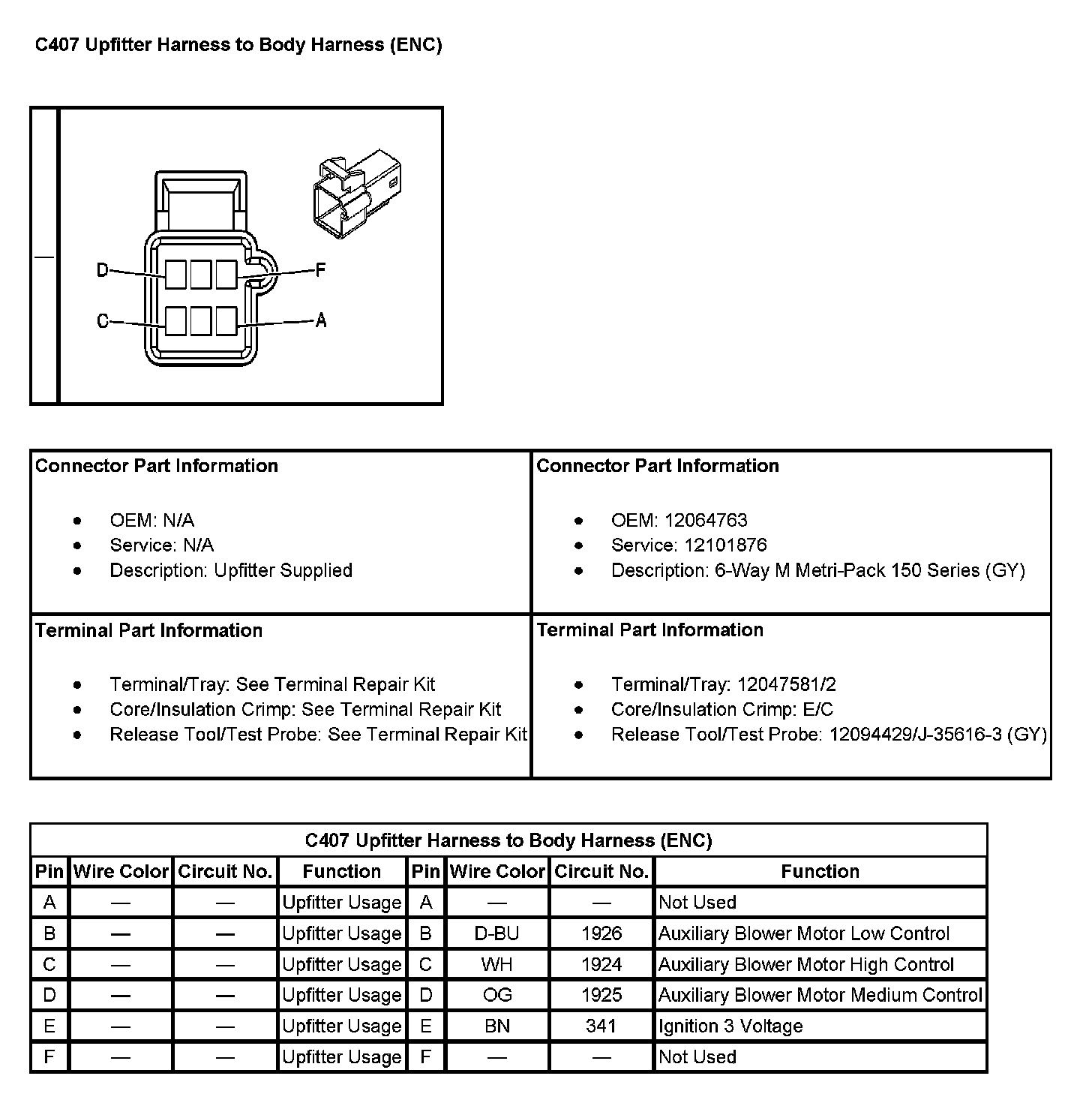

C407 Upfitter Harness To Body Harness (ENC):
