Home >> Chevrolet >> 2007 >> Express 2500 V8-4.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Starting and Charging >> Multiple Junction Connector >> C300 - C399 >> C321

C321

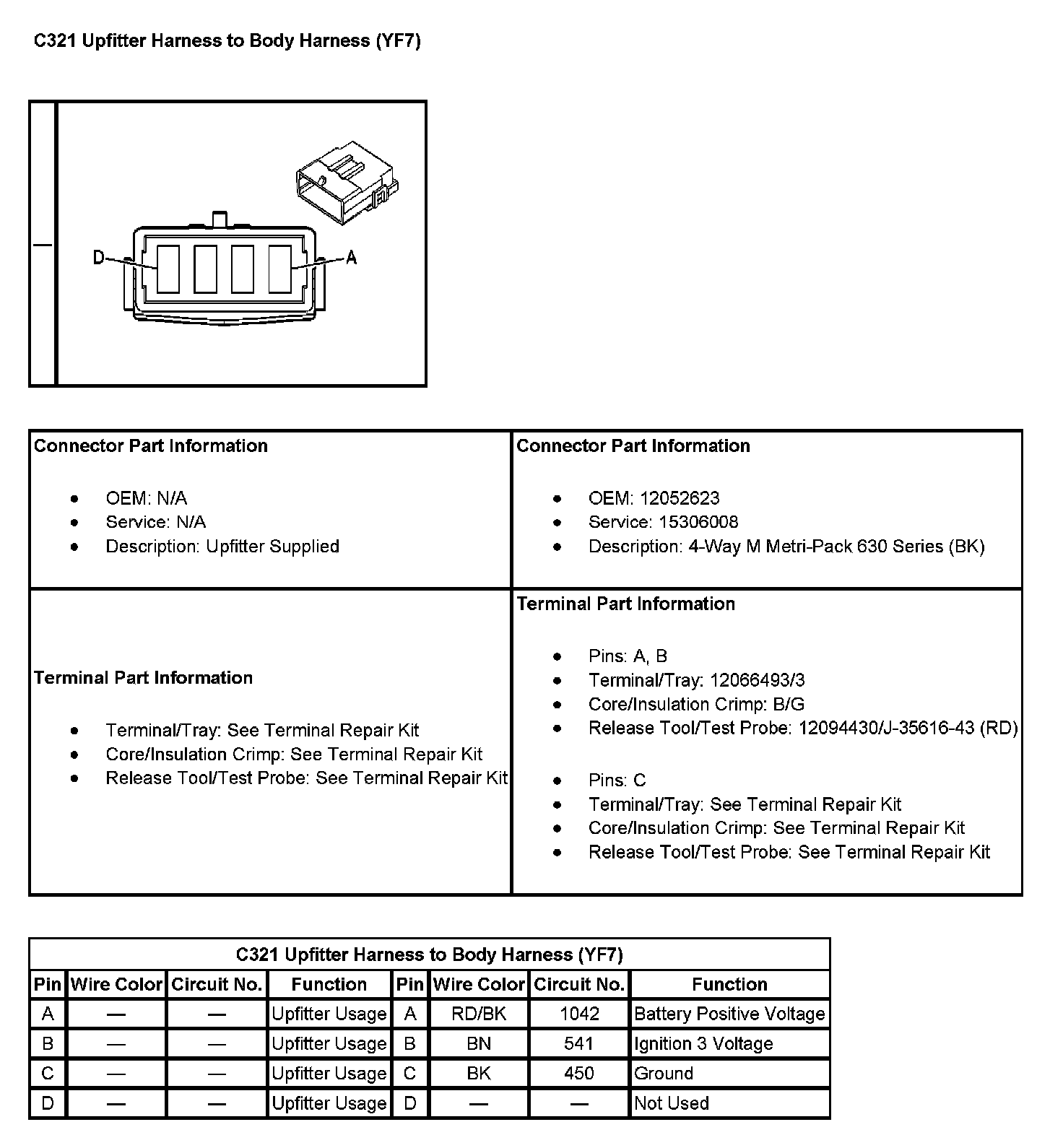

C321 Upfitter Harness To Body Harness (With RPO Code YF7):
