Home >> Chevrolet >> 2007 >> Express 2500 V8-4.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Starting and Charging >> Multiple Junction Connector >> C200 - C299 >> C221

C221

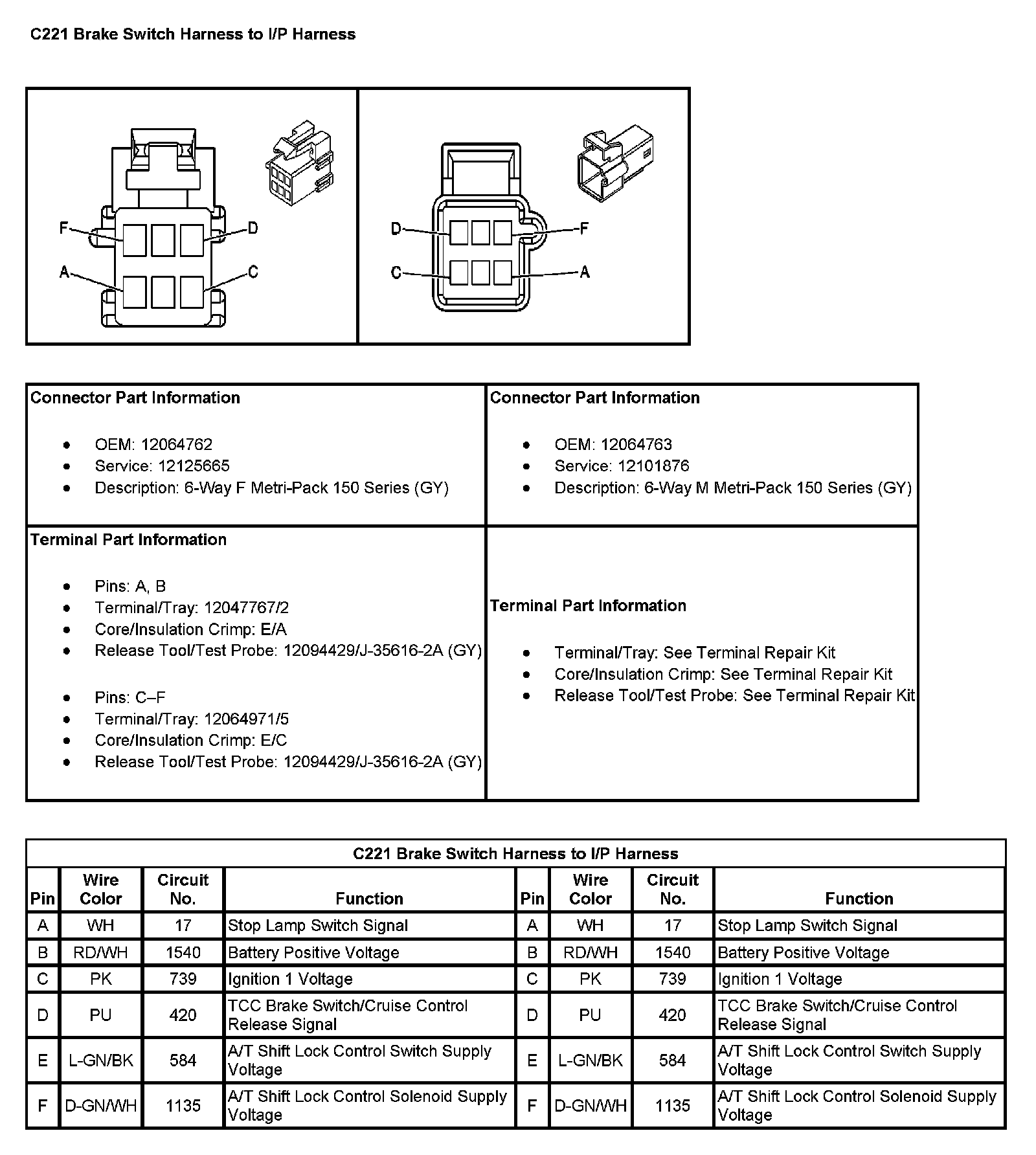

C221 Brake Switch Harness To I/P Harness:
