C115

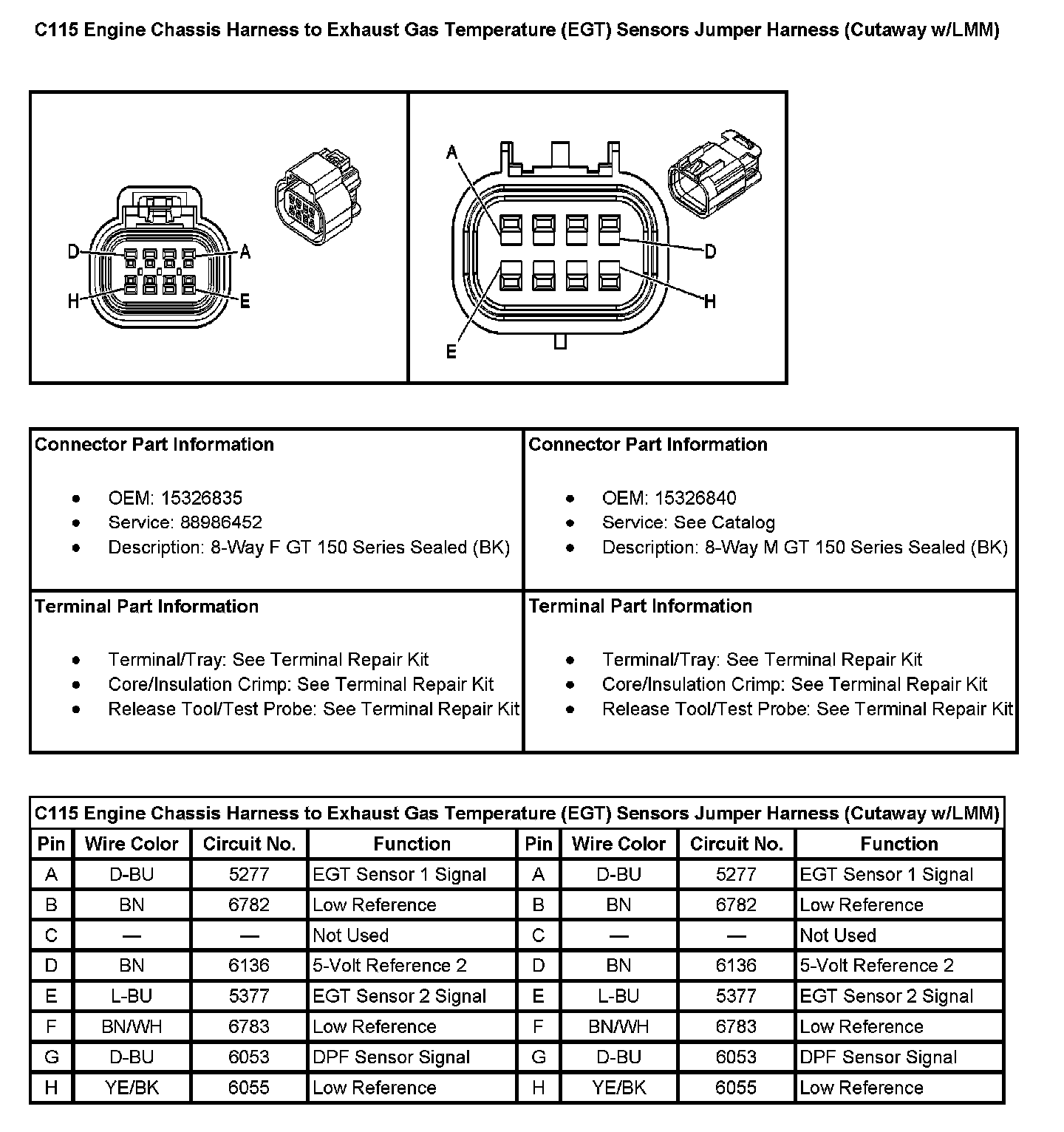

C115 Engine Chassis Harness To Exhaust Gas Temperature (EGT) Sensors Jumper Harness (Cutaway W/LMM):
