C111

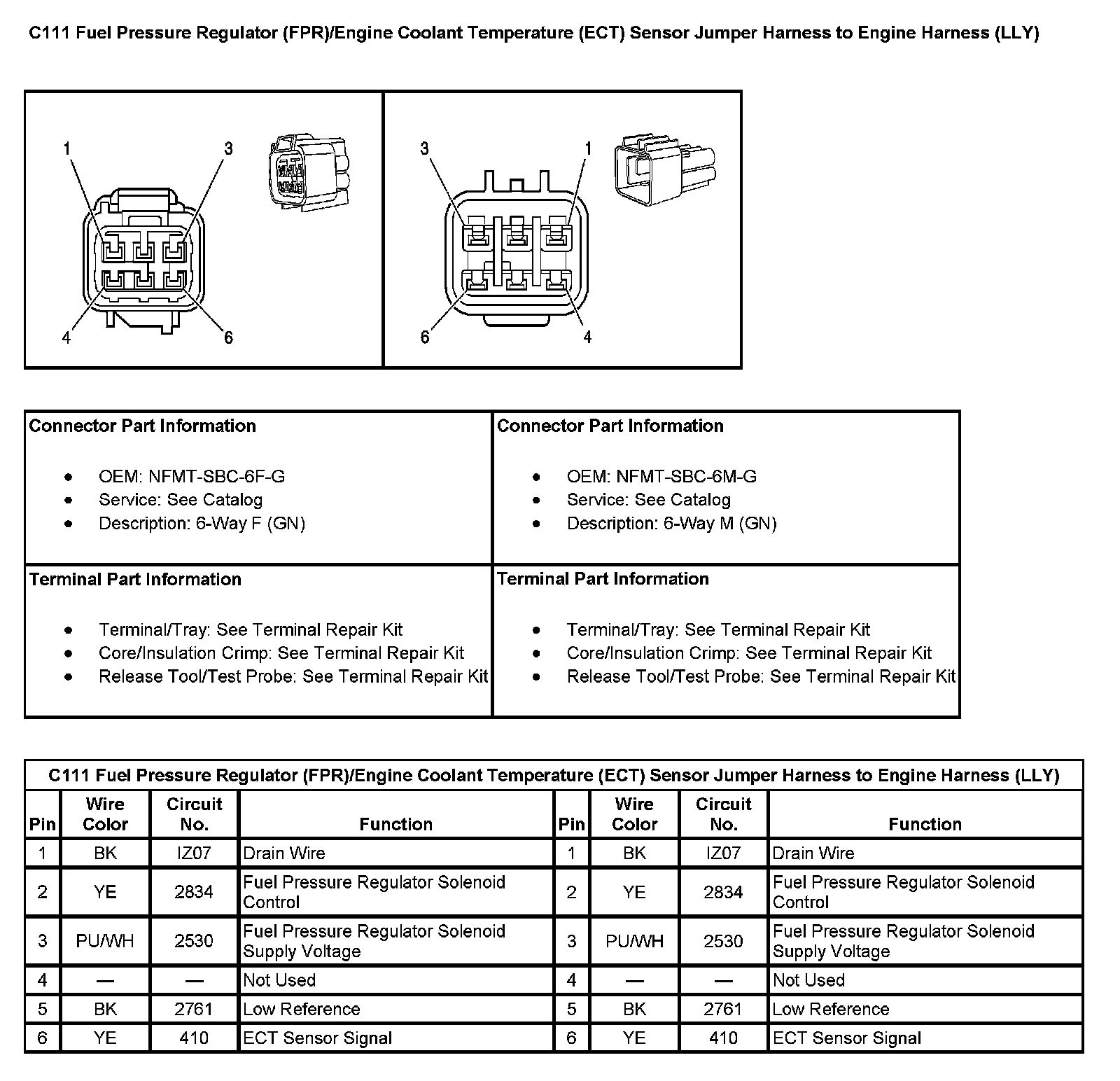

C111 Fuel Pressure Regulator (FPR)/Engine Coolant Temperature (ECT) Sensor Jumper Harness To Engine Harness (LLY):

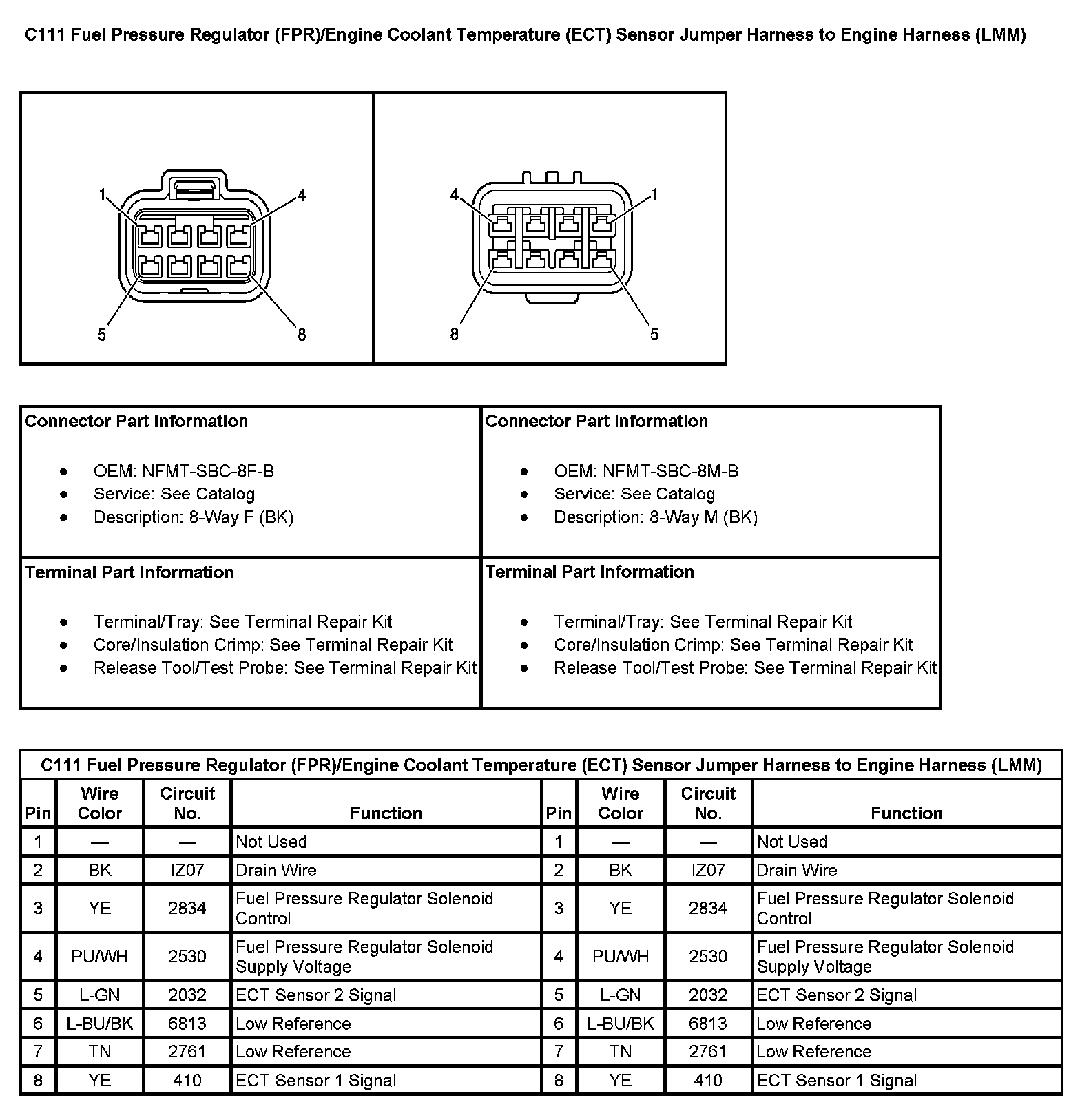

C111 Fuel Pressure Regulator (FPR)/Engine Coolant Temperature (ECT) Sensor Jumper Harness To Engine Harness (LMM):
