Home >> Chevrolet >> 2007 >> Express 2500 V8-4.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Starting and Charging >> Multiple Junction Connector >> C100 - C199 >> C107

C107

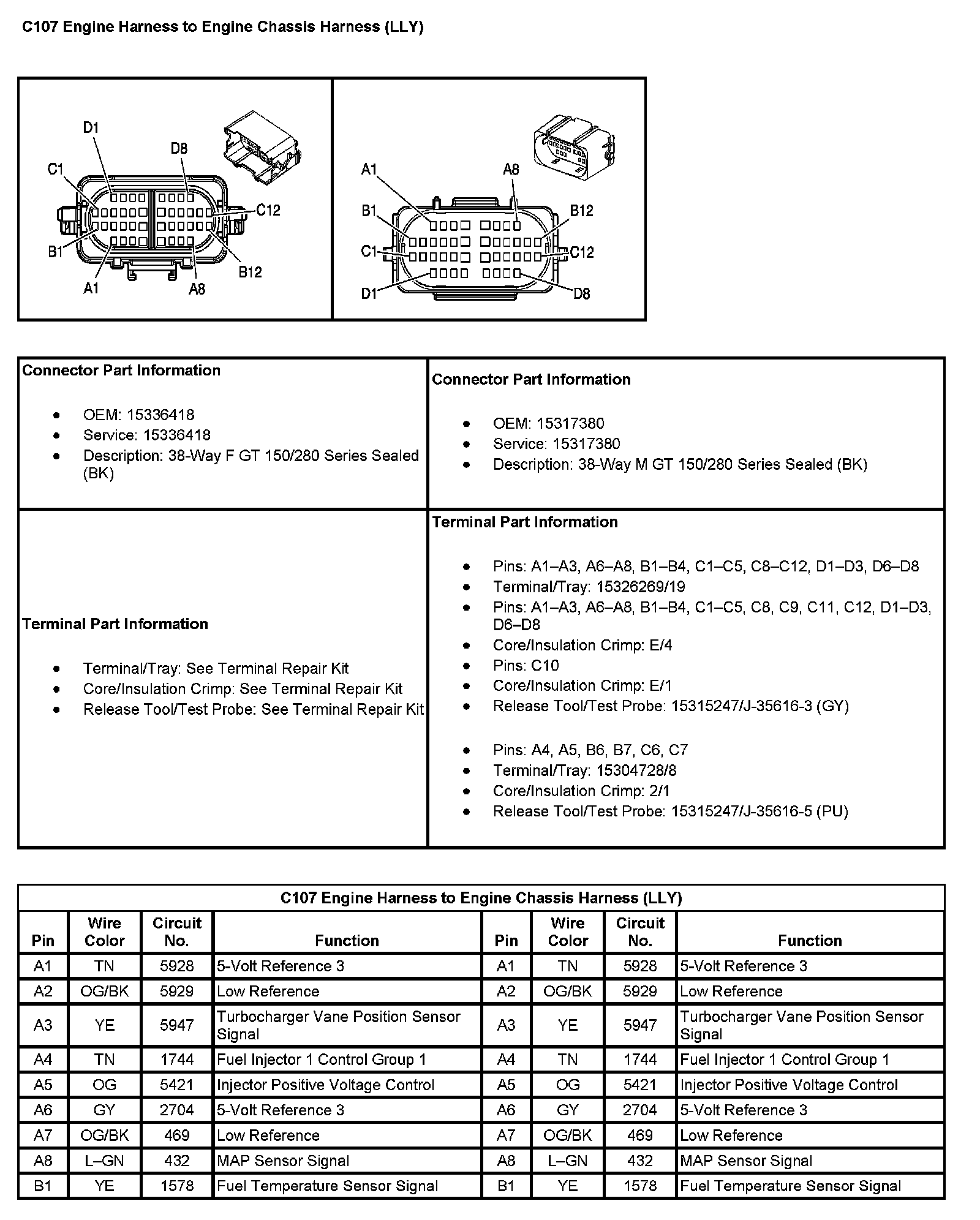

C107 Engine Harness To Engine Chassis Harness (With RPO Code LLY) (Pin A1 To B1):

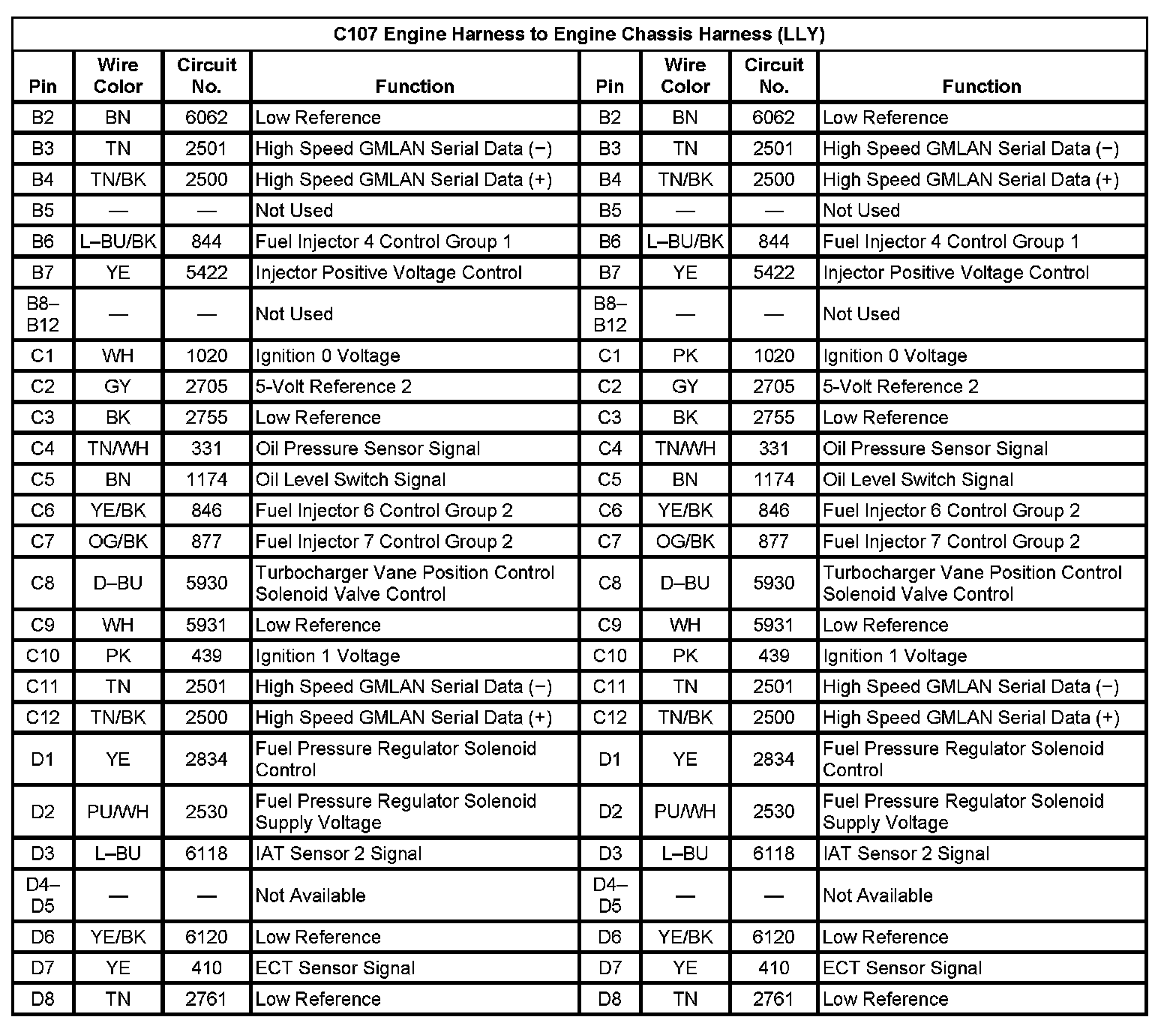

C107 Engine Harness To Engine Chassis Harness (With RPO Code LLY) (Pin B2 To D8):

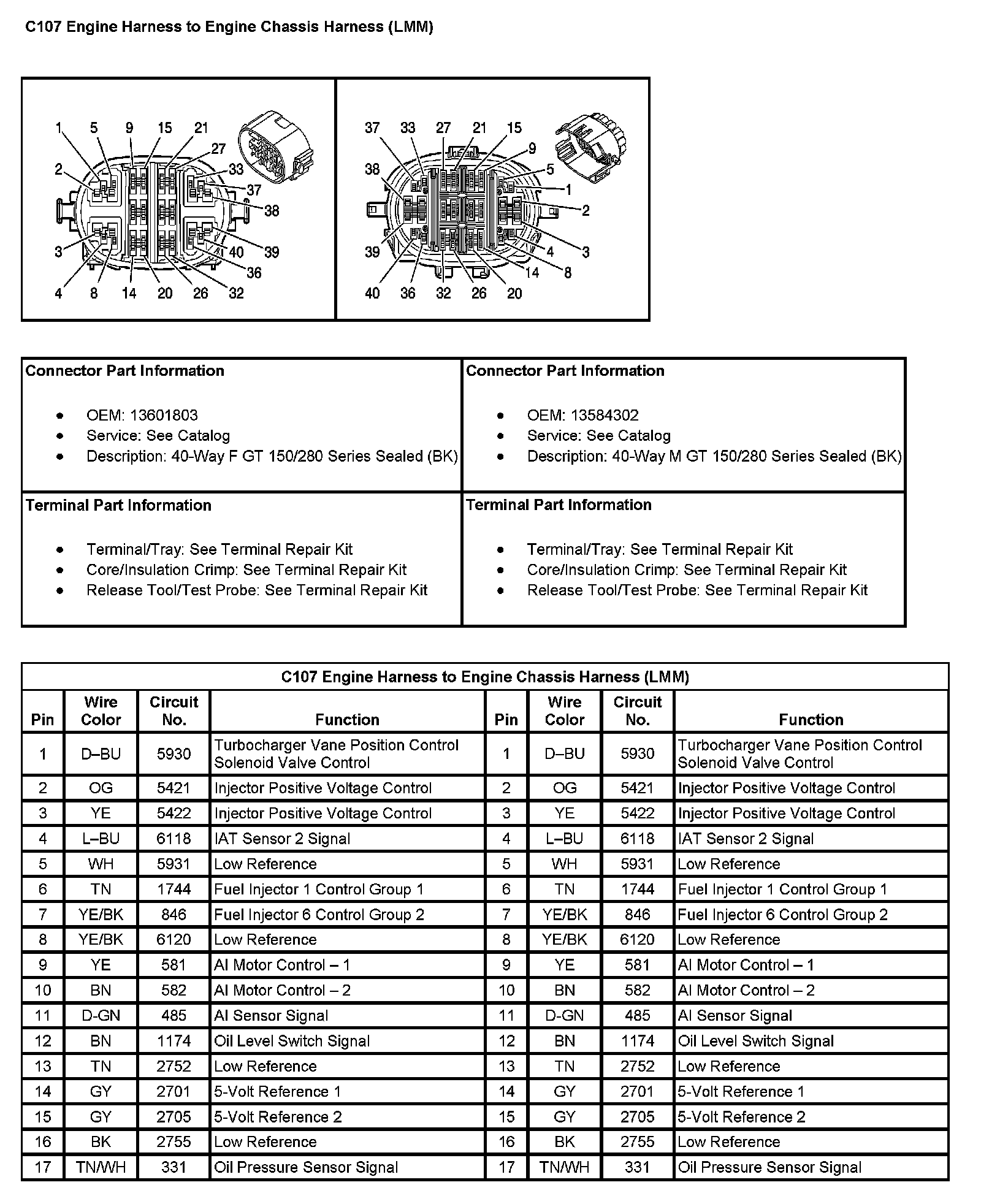

C107 Engine Harness To Engine Chassis Harness (LMM) (Pin 1 To 17):

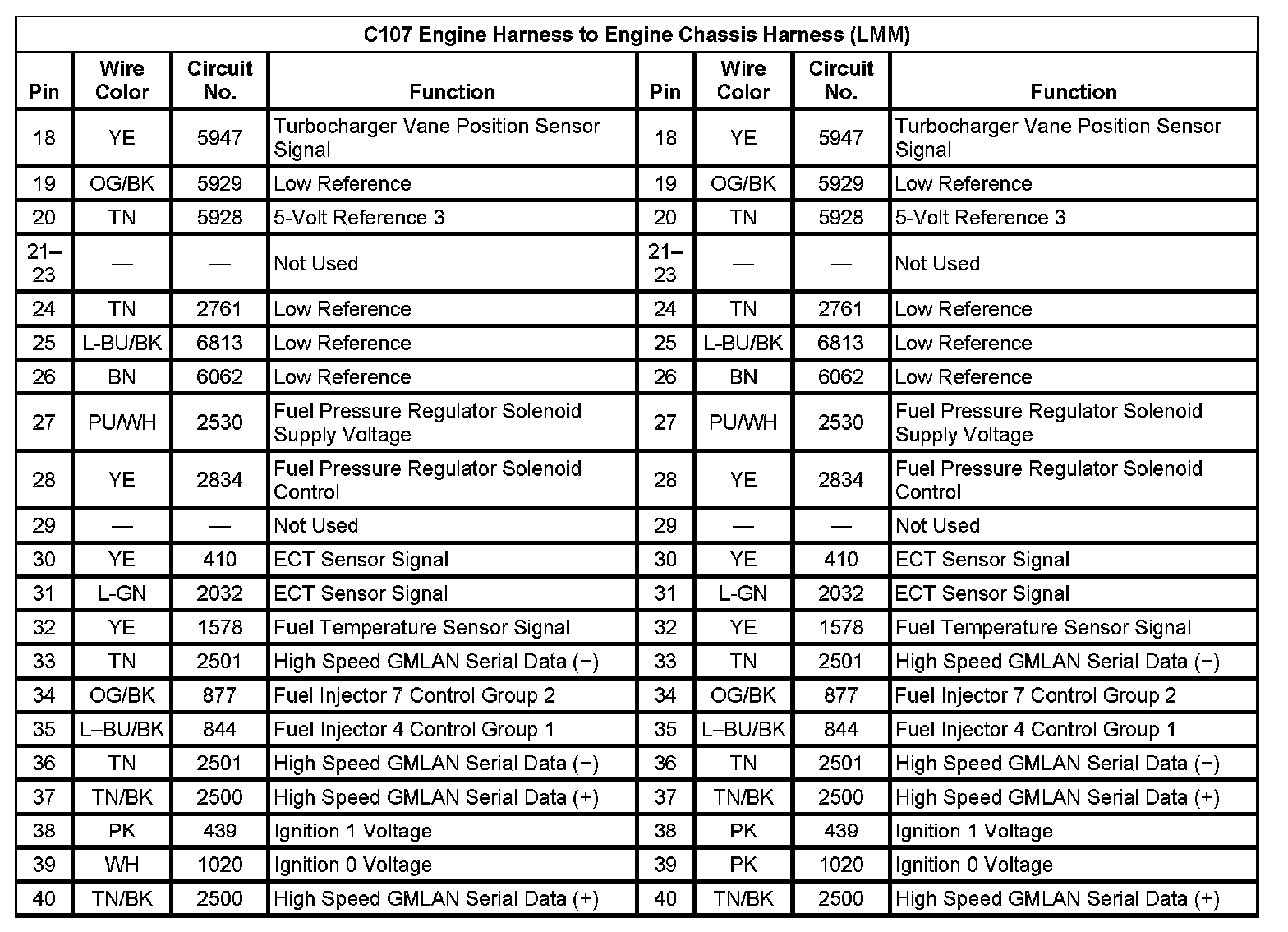

C107 Engine Harness To Engine Chassis Harness (LMM) (Pin 18 To 40):
