C101
C101

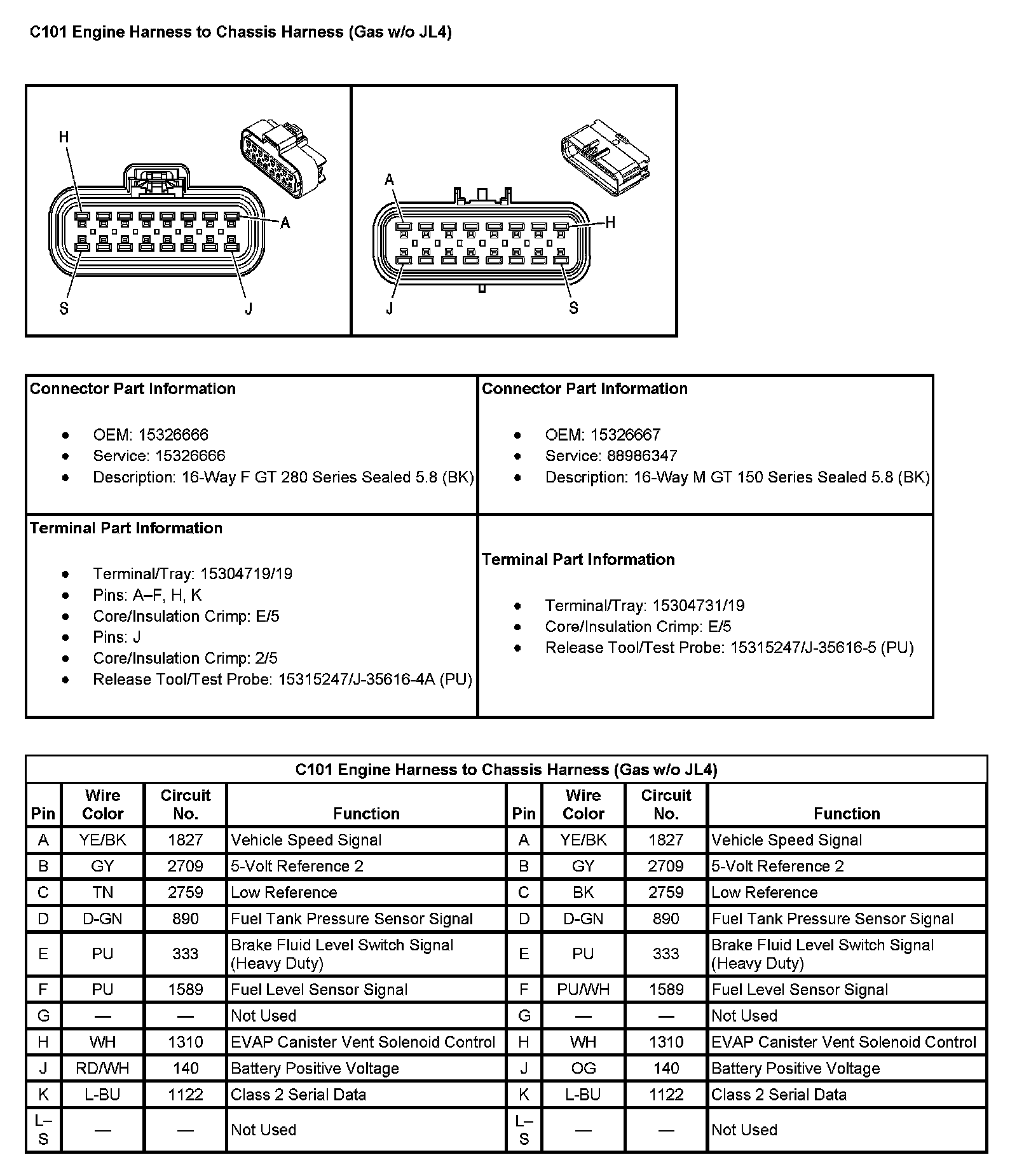

C101 Engine Harness To Chassis Harness (Gas Without RPO Code JL4):

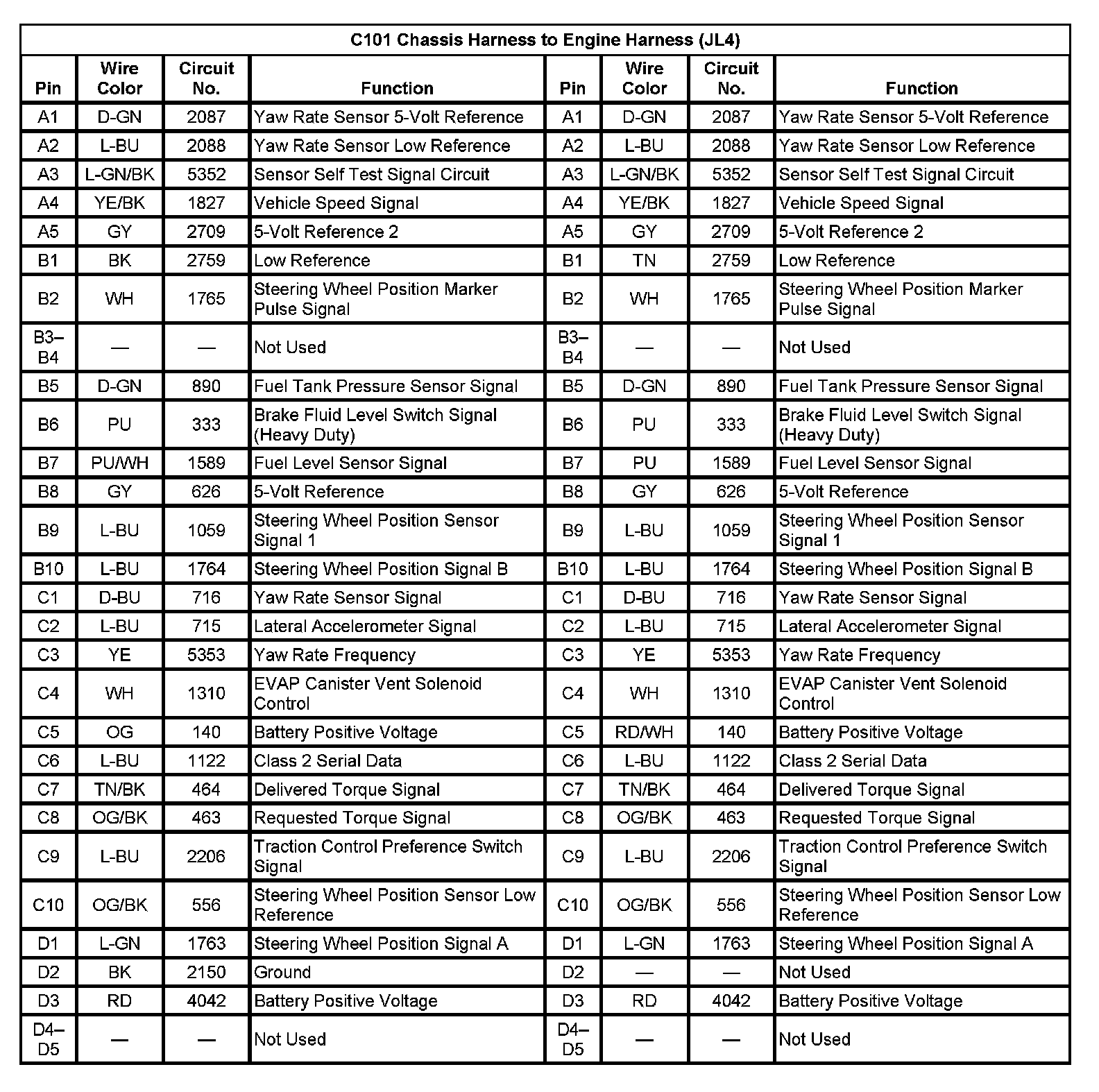

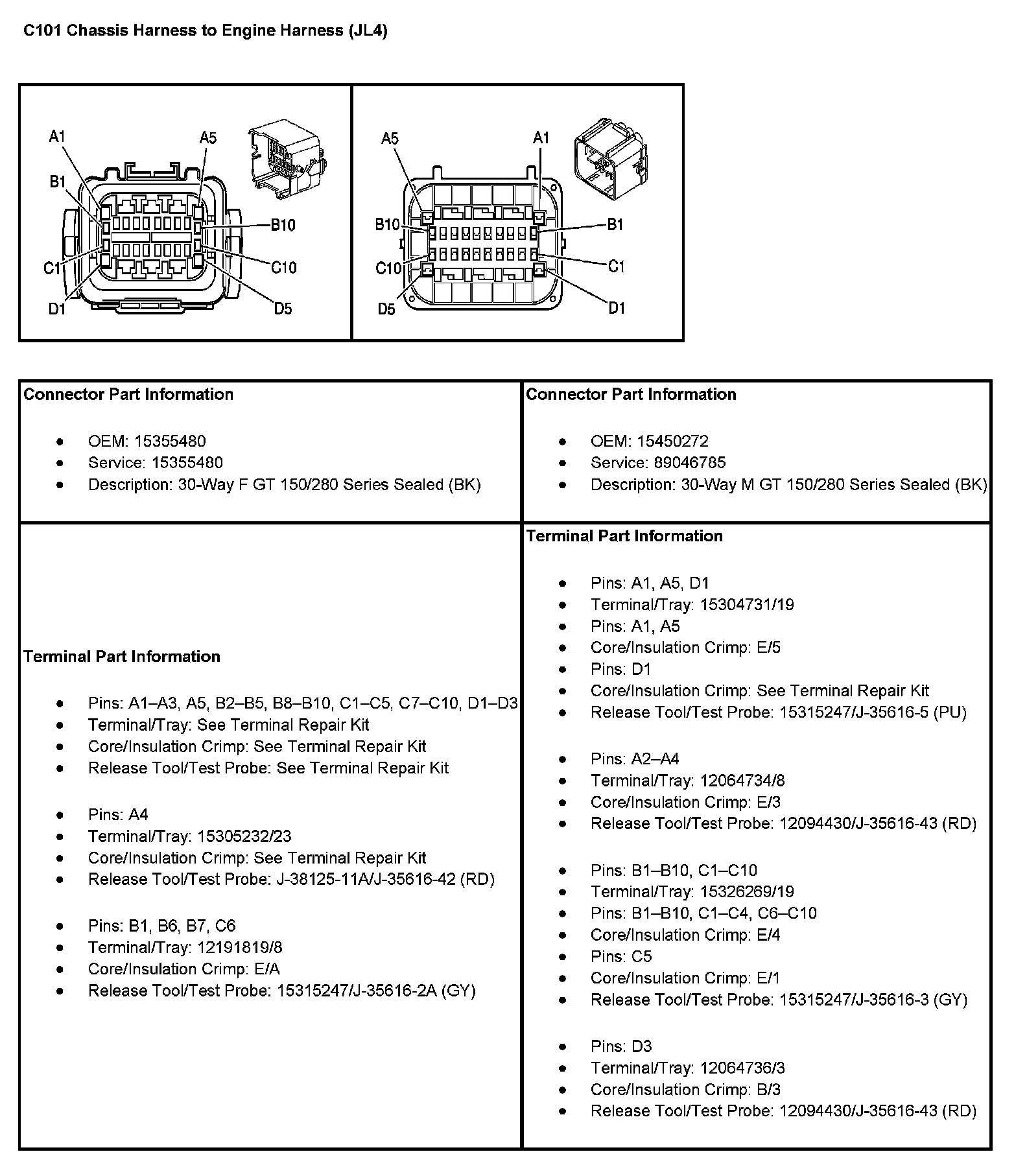

C101 Chassis Harness To Engine Harness (With RPO Code JL4):
C101 Chassis Harness To Engine Harness (With RPO Code JL4):
