Outside Rearview Mirror
Outside Rearview Mirror

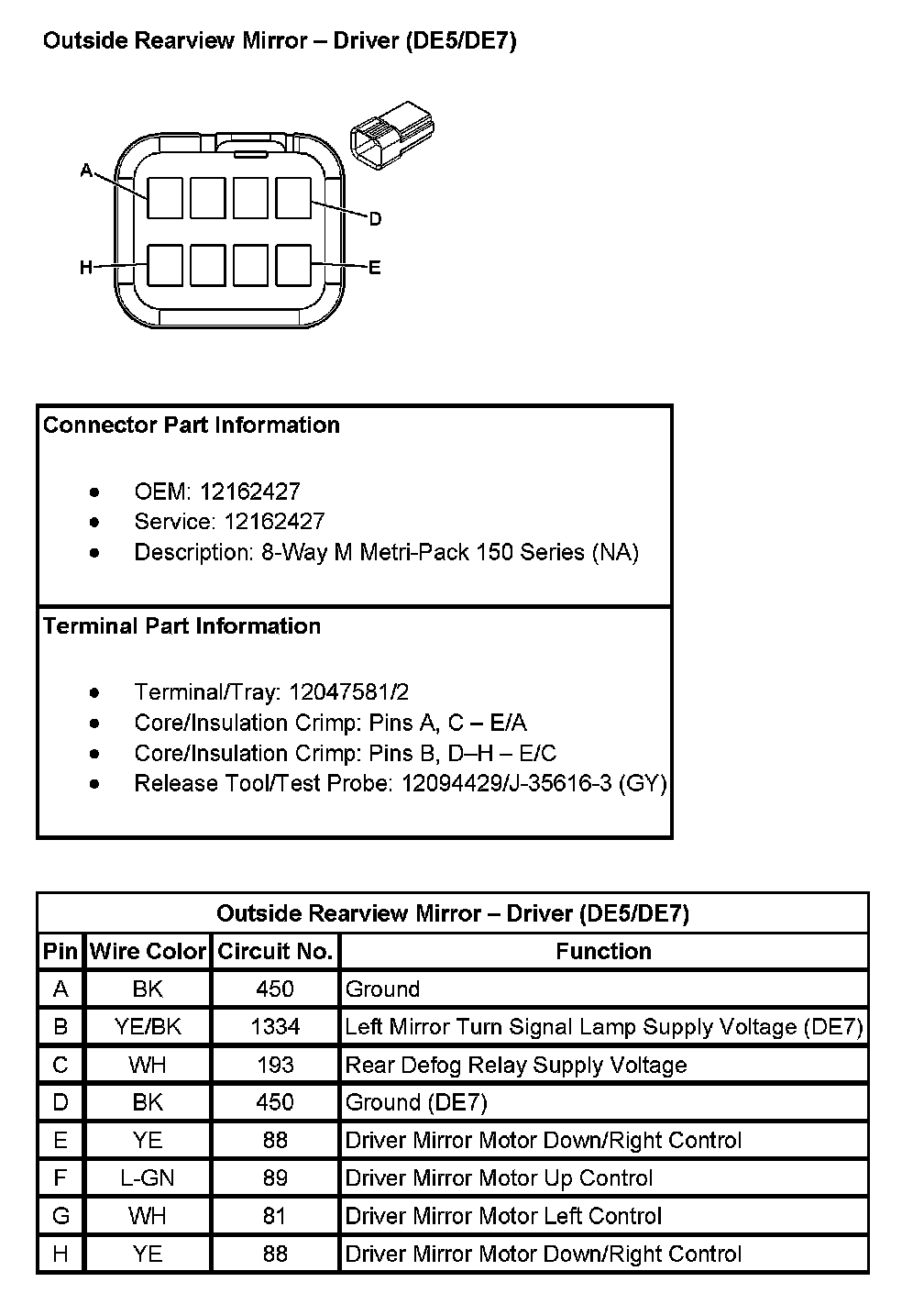

Outside Rearview Mirror - Driver (With RPO Codes DE5/DE7):

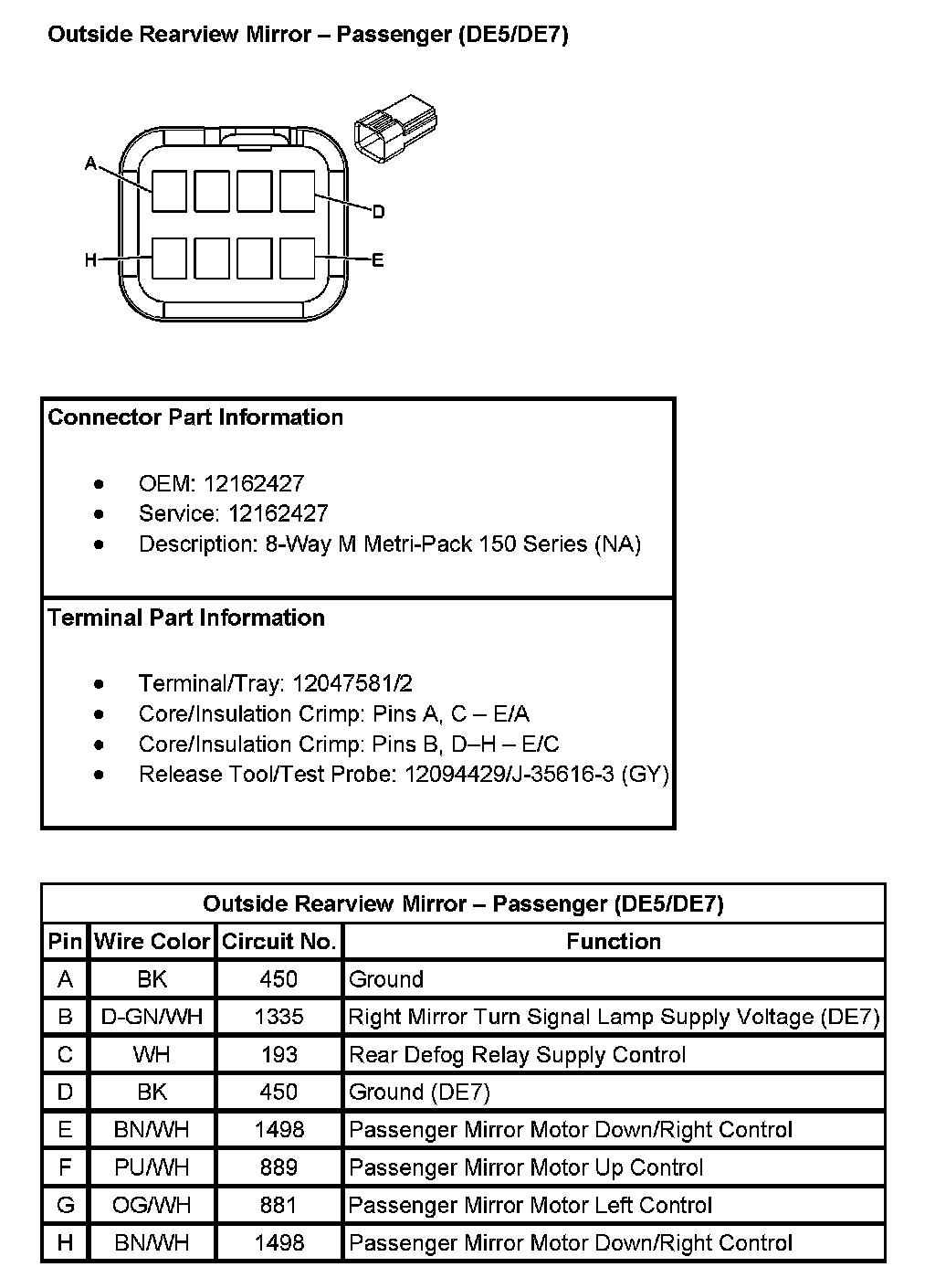

Outside Rearview Mirror - Passenger (With RPO Codes DE5/DE7):
