Home >> Chevrolet >> 2007 >> Express 2500 V8-4.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Dome Lamp >> Dome Lamp Relay

Dome Lamp Relay

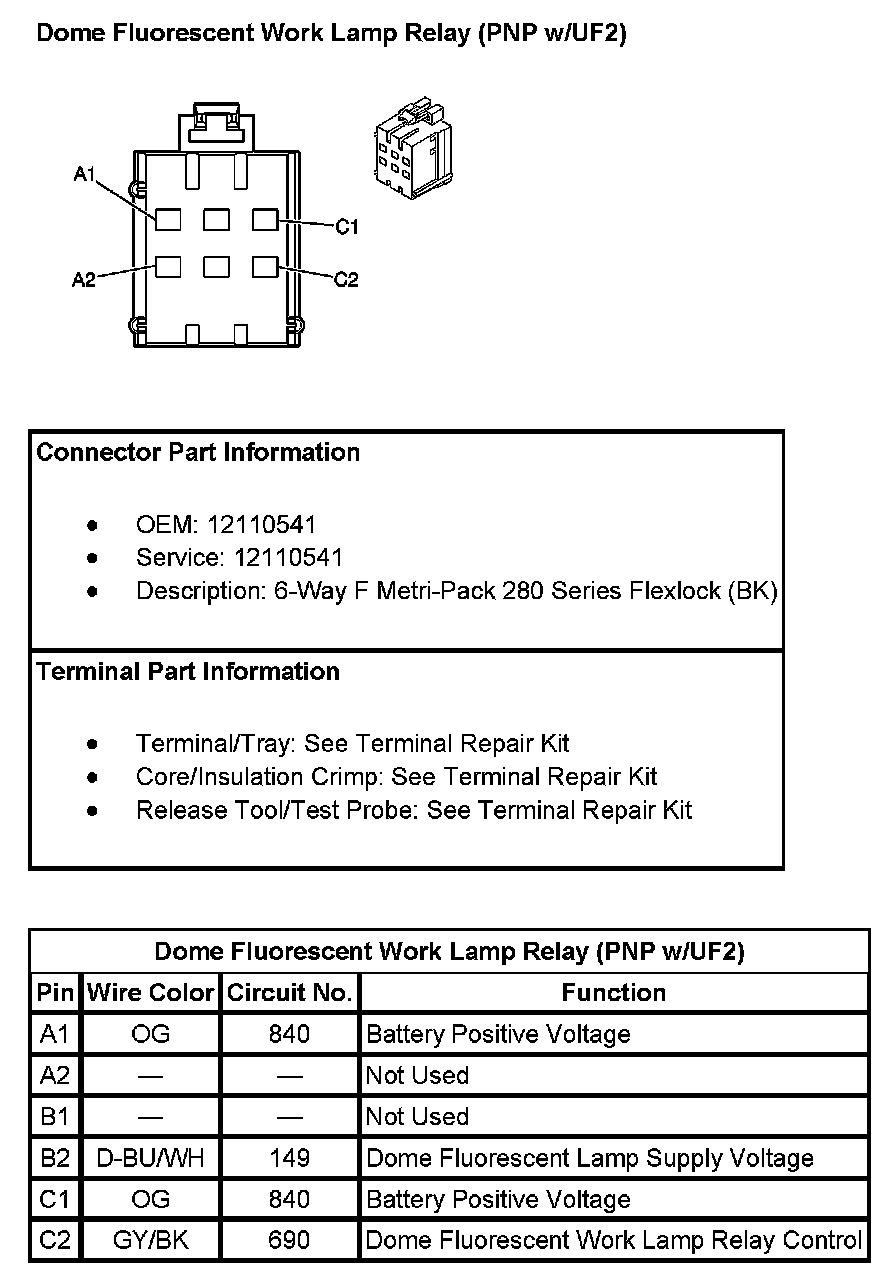

Dome Fluorescent Work Lamp Relay (PNP With RPO Code UF2):
