C311
C311

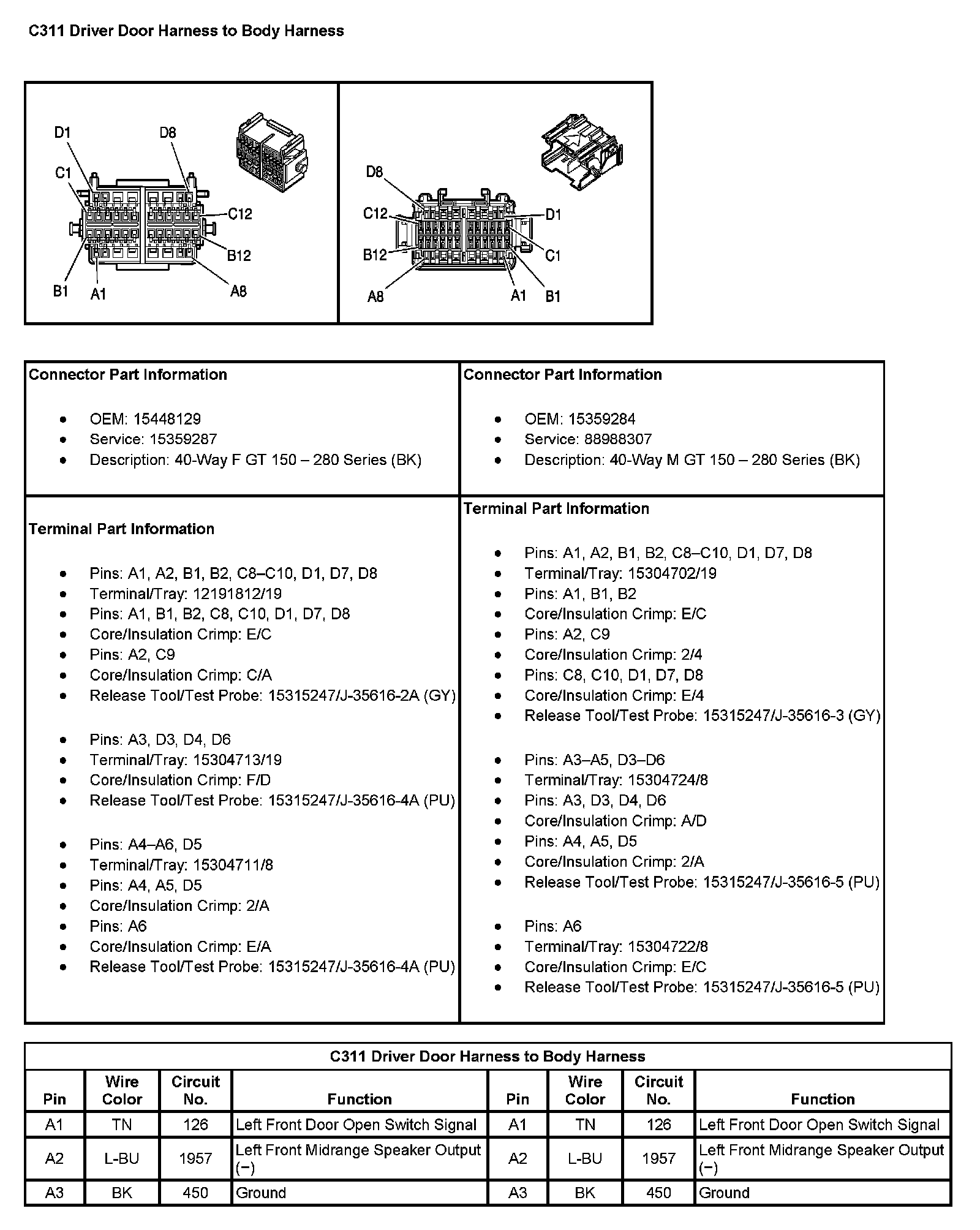

C311 Driver Door Harness To Body Harness (Pin A1 To A3):

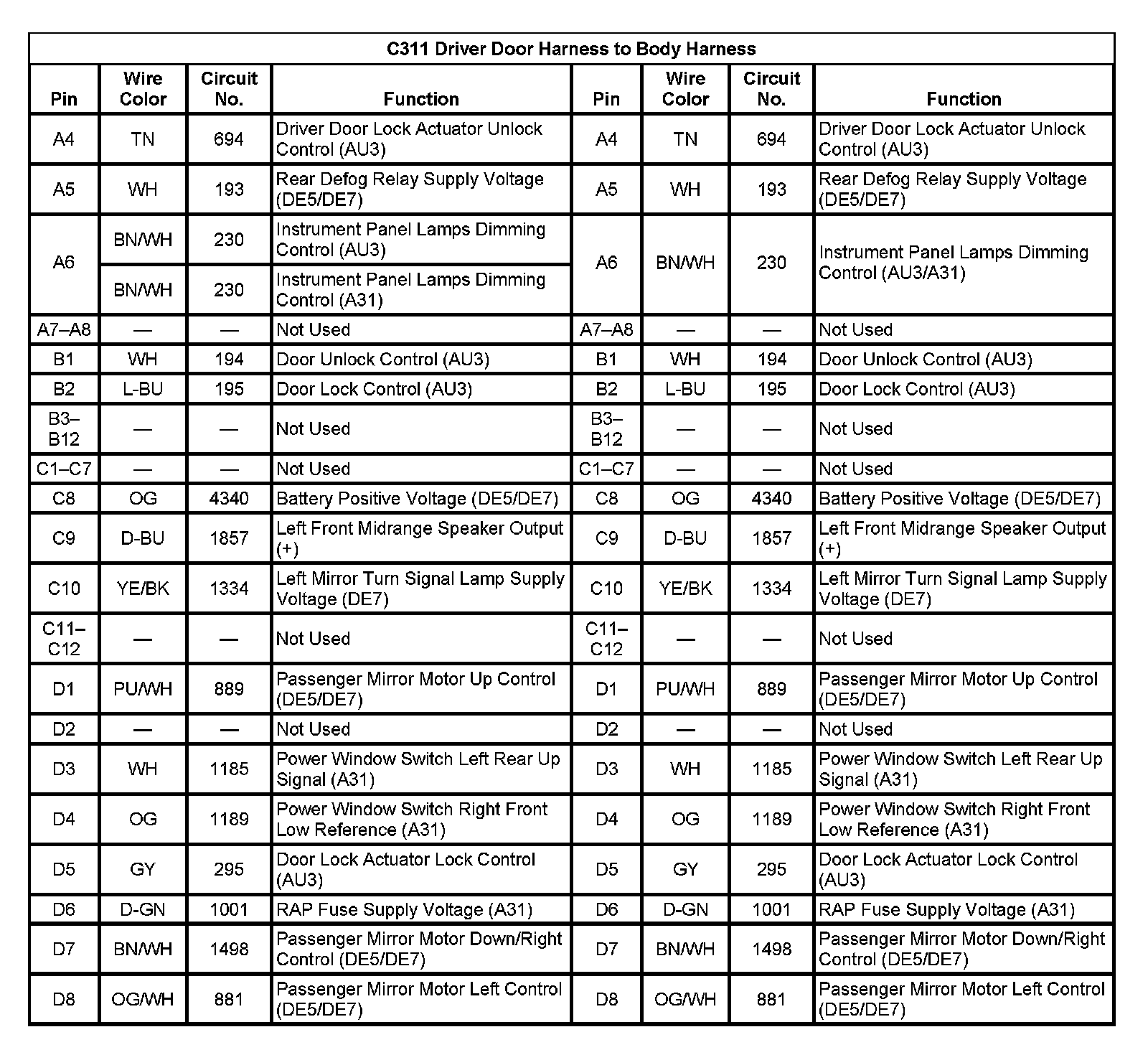

C311 Driver Door Harness To Body Harness (Pin A4 To D8):
