C307

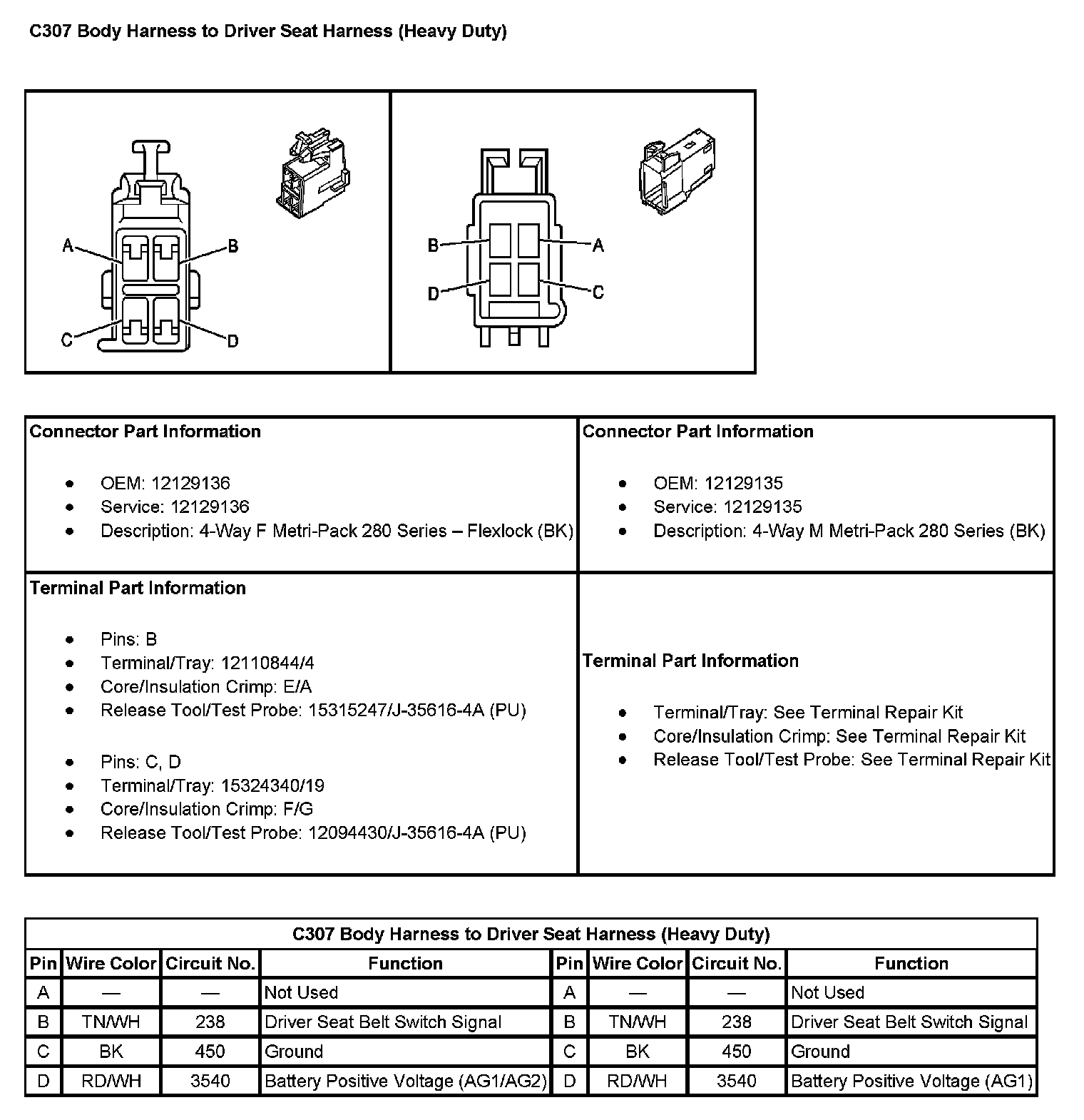

C307 Body Harness To Driver Seat Harness (Heavy Duty):

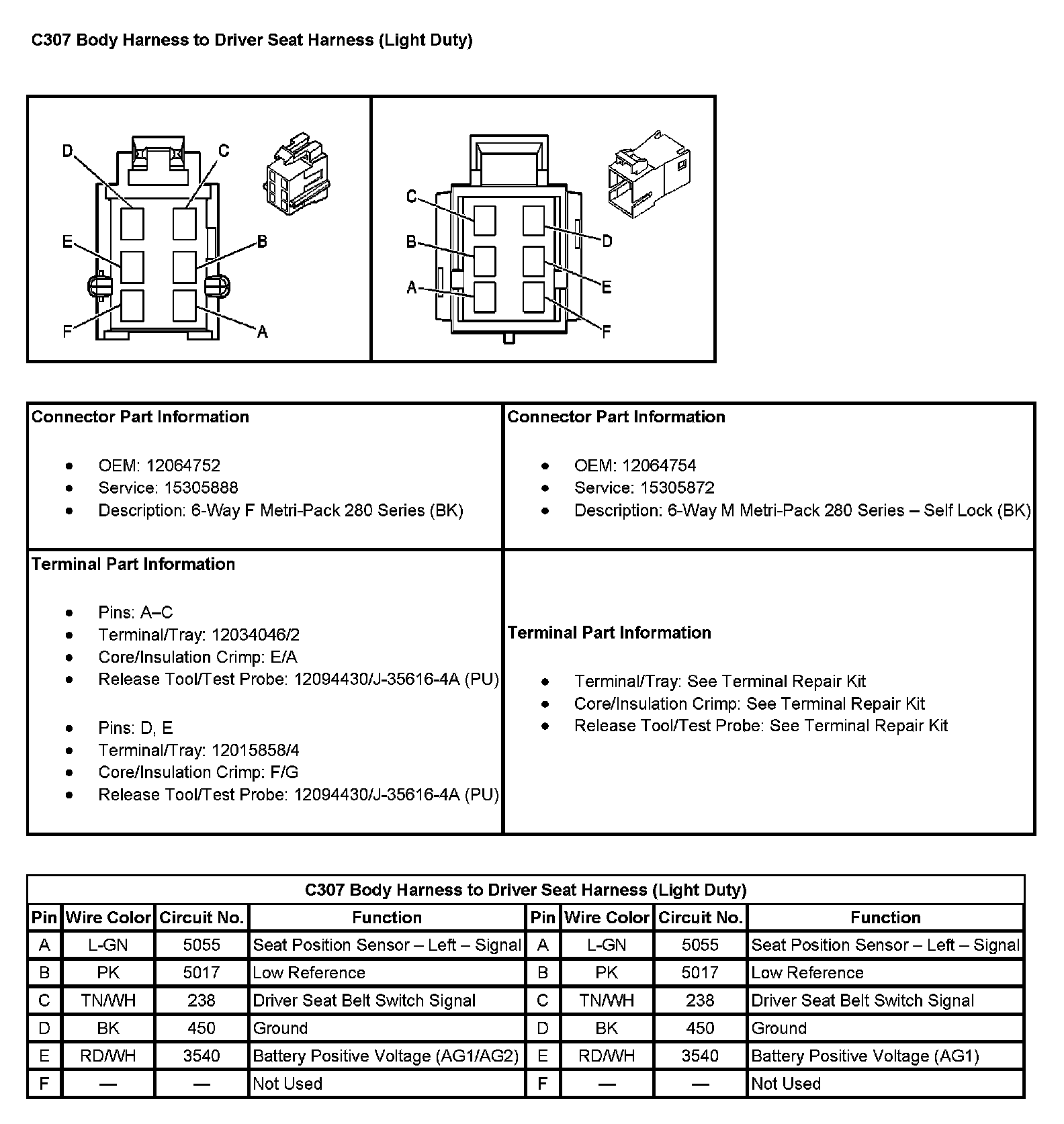

C307 Body Harness To Driver Seat Harness (Light Duty):
