C108

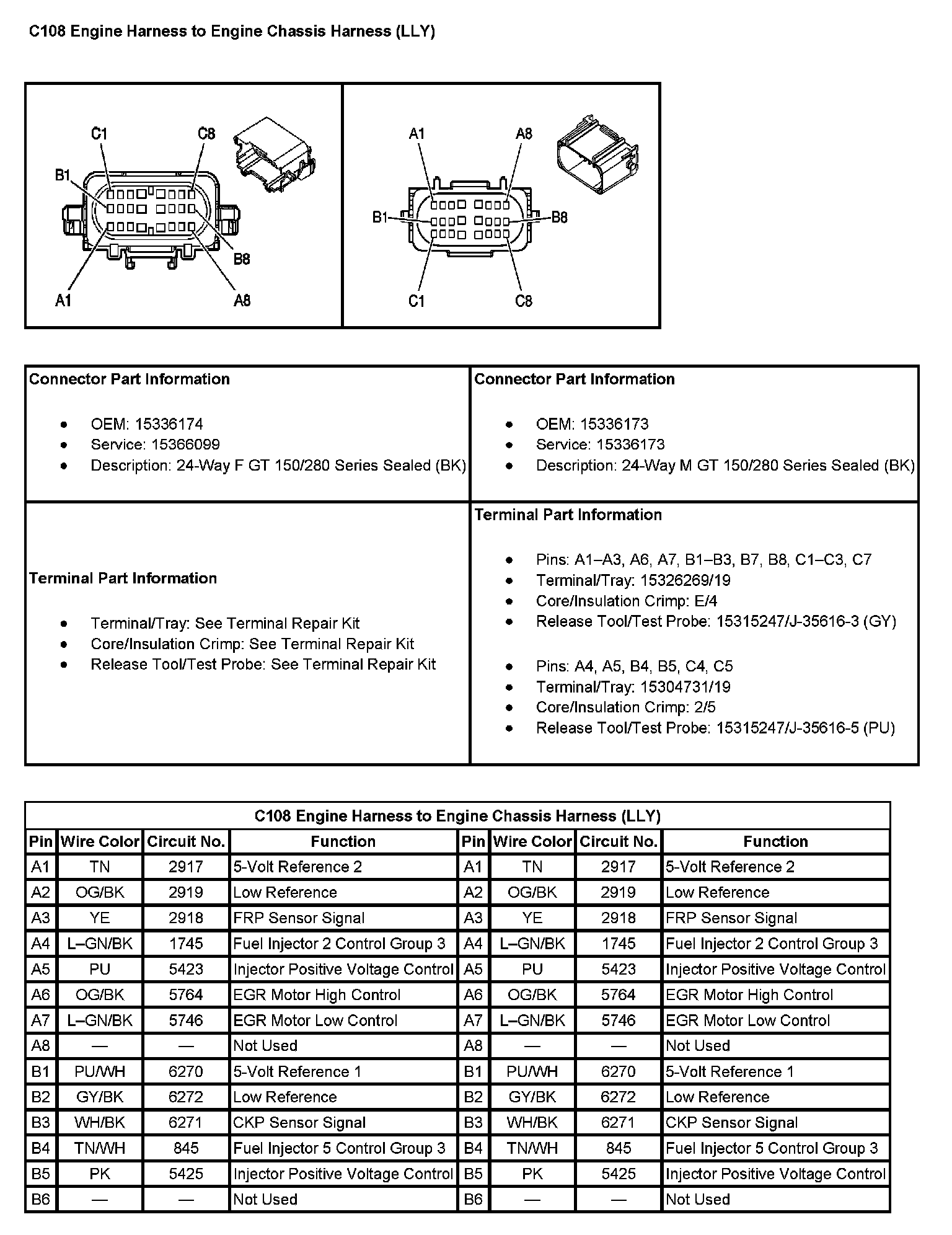

C108 Engine Harness To Engine Chassis Harness (LLY) (Pin A1 To B6):

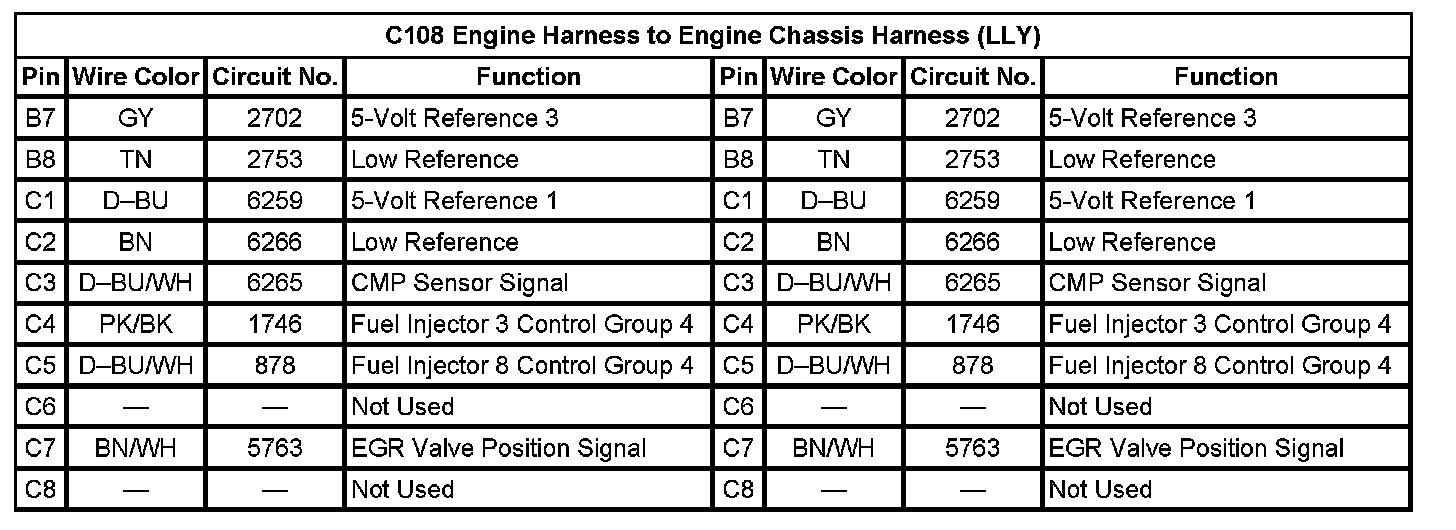

C108 Engine Harness To Engine Chassis Harness (LLY) (Pin B7 To C8):

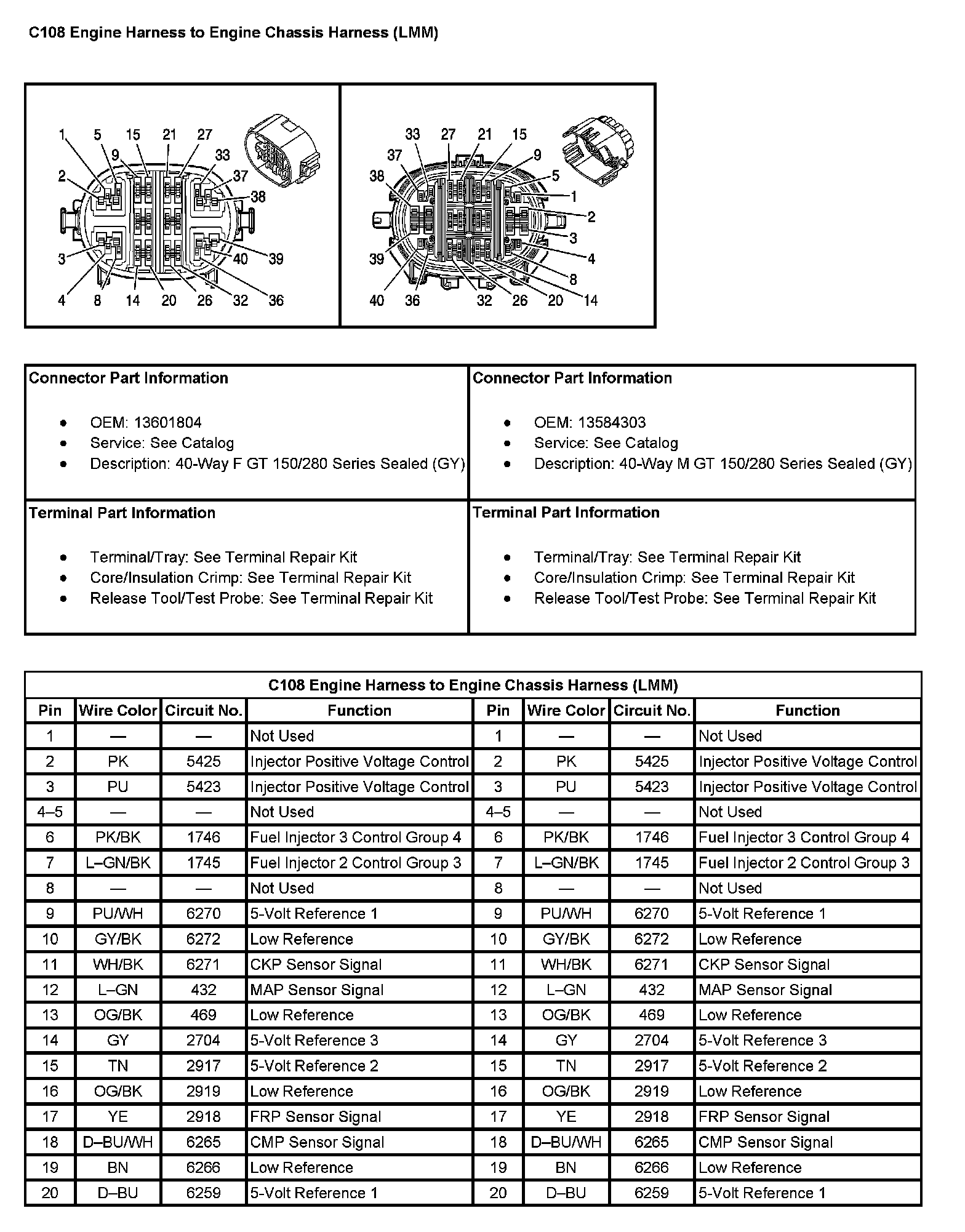

C108 Engine Harness To Engine Chassis Harness (LMM) (Pin 1 To 20):

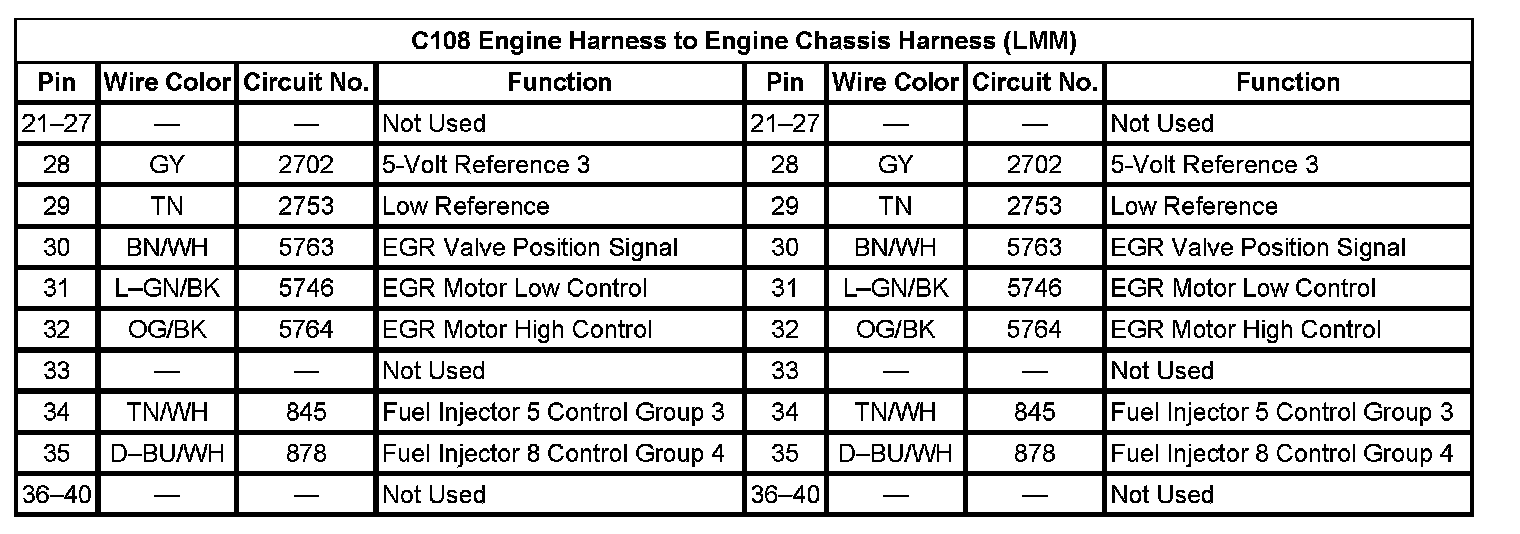

C108 Engine Harness To Engine Chassis Harness (LMM) (Pin 21 To 40):
