C100

C100 I/P Harness To Engine Harness (Gas With RPO Code JL4) (Pin A To K):

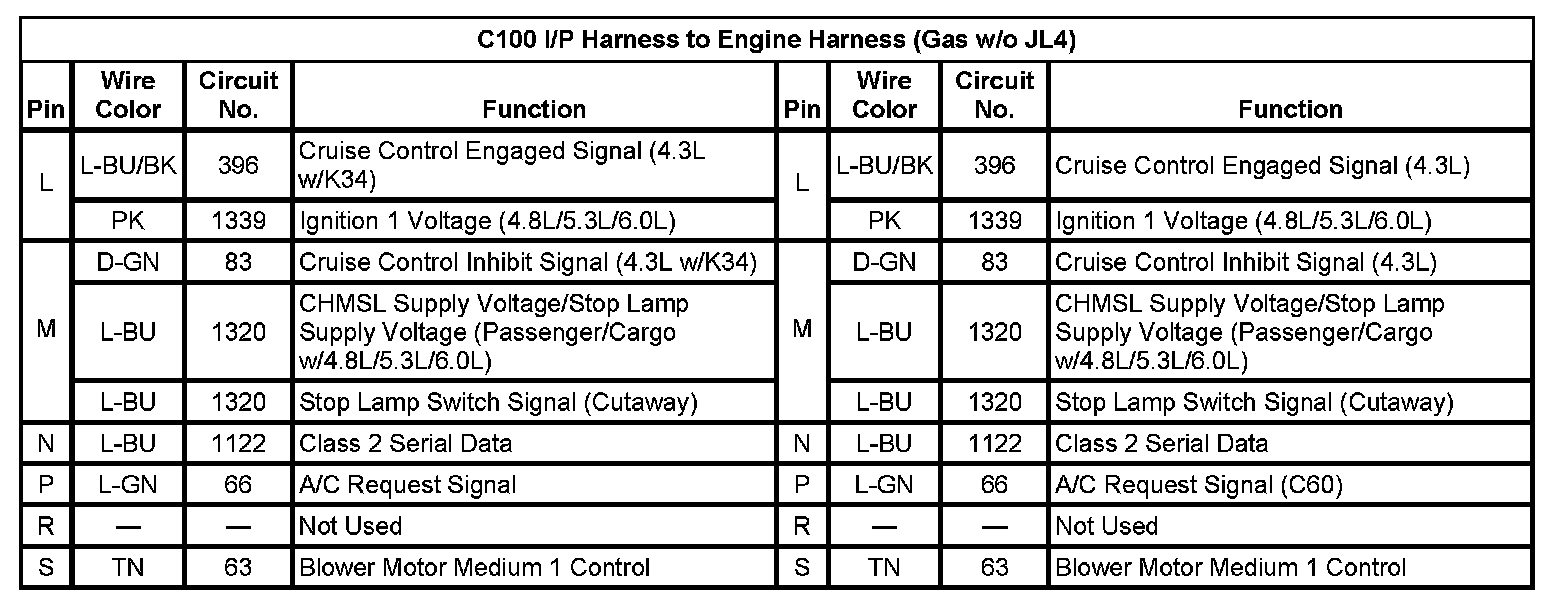

C100 I/P Harness To Engine Harness (Gas With RPO Code JL4) (Pin L To S):

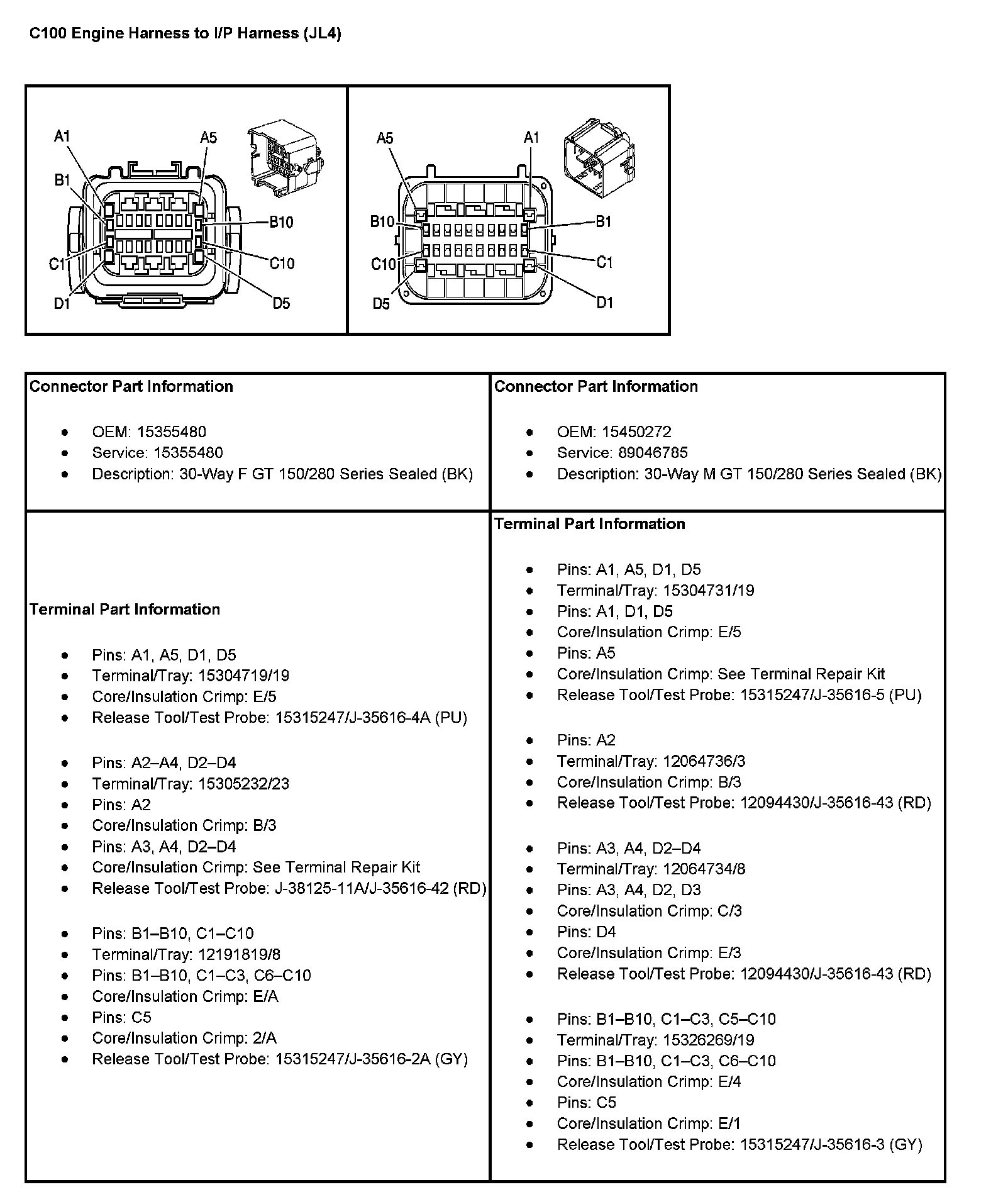

C100 Engine Harness To I/P Harness (With RPO Code JL4):

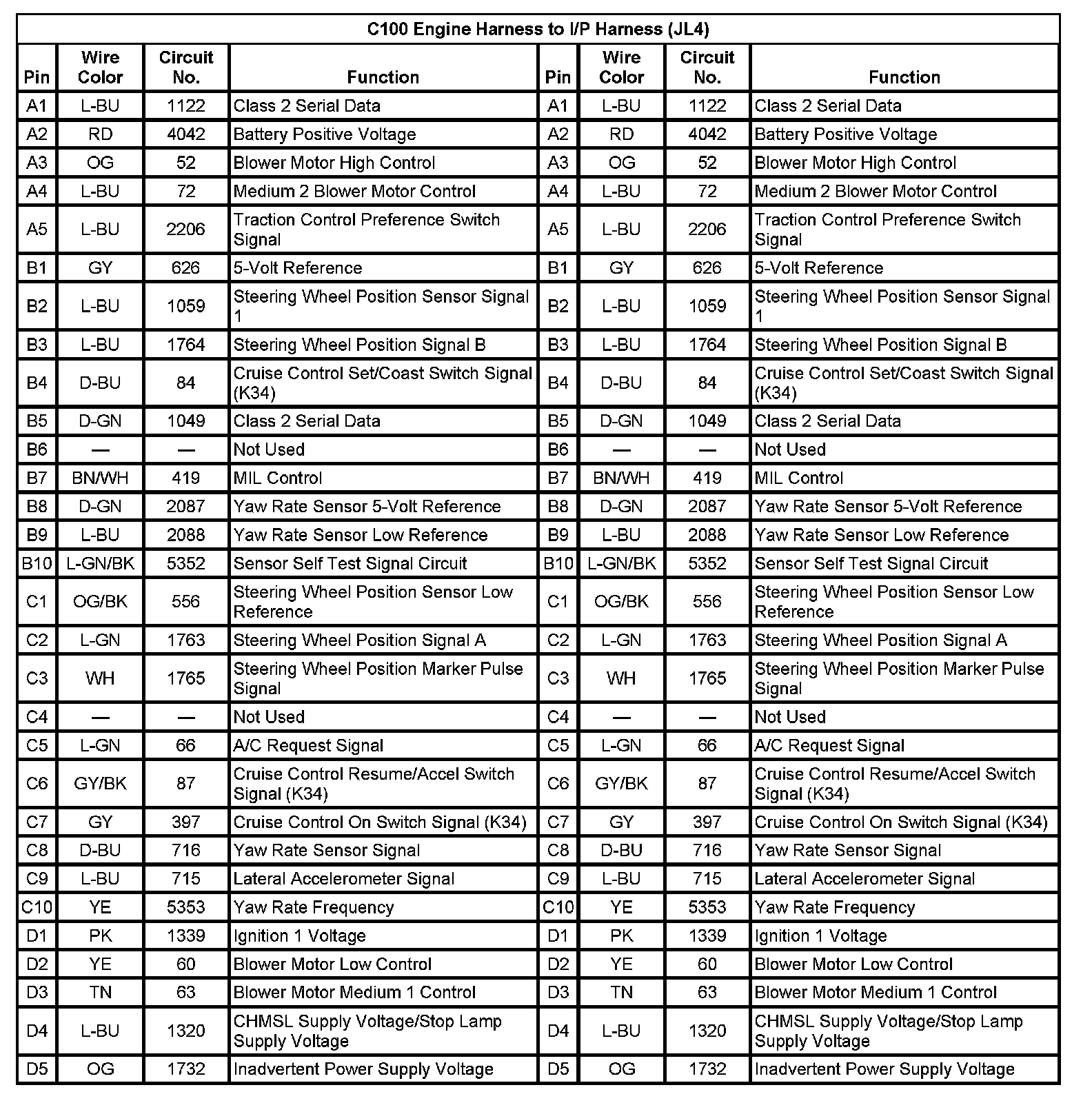

C100 Engine Harness To I/P Harness (With RPO Code JL4):
