Body Side Trim Panel Replacement - Left Side

Body Side Trim Panel Replacement - Left Side

Removal Procedure




1. Remove the rear passenger seats as needed.
2. Remove the front door lower pillar garnish molding.

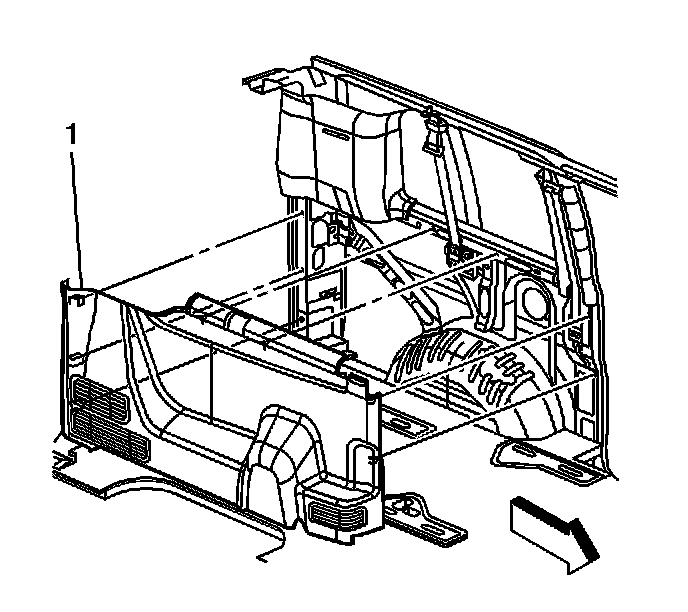

3. Grasp and gently pull the body side front lower trim panel (1) in order to disengage the clips.
4. Remove the body side trim panel (1) from the vehicle.
5. Inspect the body side front lower trim panel (1) for broken or missing retaining clips. Replace the retaining clips as needed.

Installation Procedure




1. Install the body side trim panel (1) to the vehicle.
2. Press on the body side front lower trim pane (1) in order to engage the clips.
3. Install the front door lower pillar garnish molding.
4. Install the rear passenger seats when needed.
