Body Side Front Garnish Molding Replacement - Left Side

Body Side Front Garnish Molding Replacement - Left Side

Removal Procedure

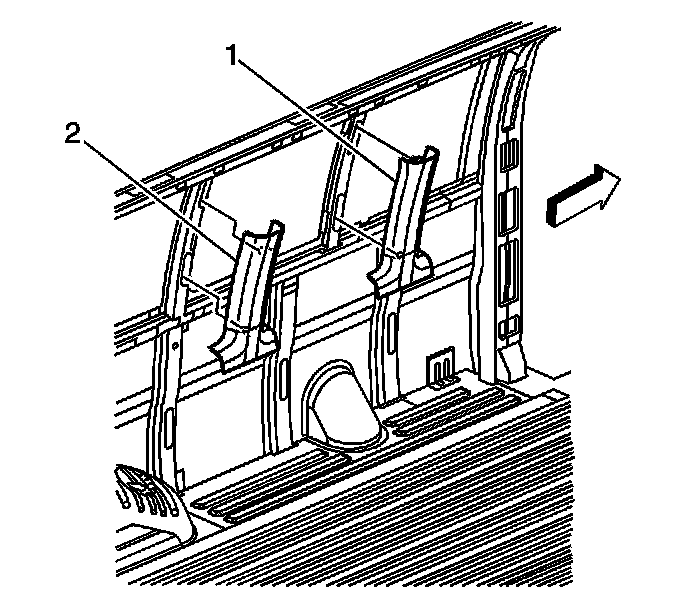

1. Pull out on the center pillar garnish (1,2) molding to disengage the clips.
2. Remove the center pillar garnish molding.

Installation Procedure




1. Align the body side upper (1,2) garnish molding clips to the holes in the body.
2. Push in on the body side upper (1,2) garnish molding to engage the clips.
