Lock Cylinder Switch: Locations

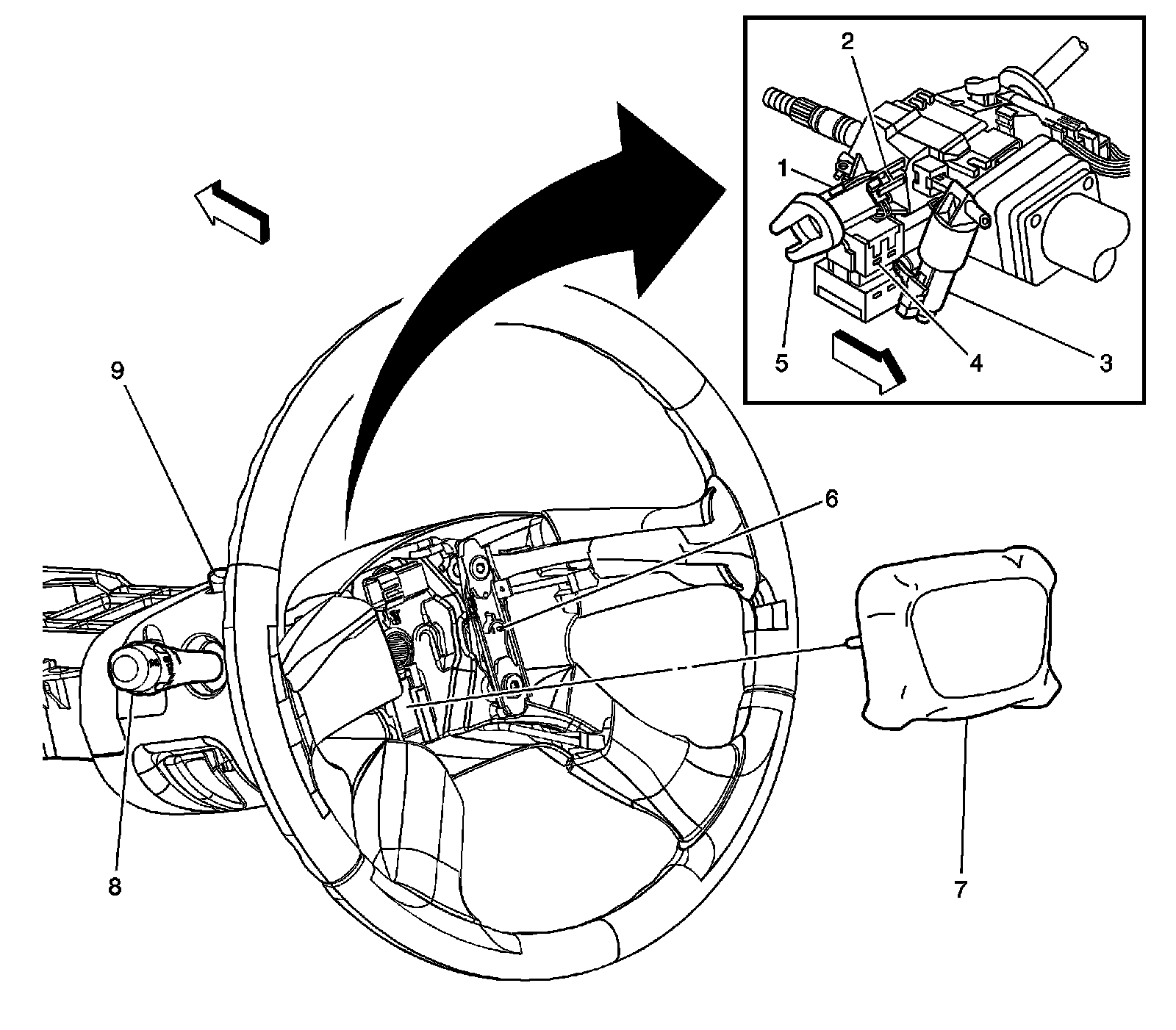

Immobilizer Component Views

Upper Steering Column




1 - Passlock Sensor
2 - Ignition Key Alarm Switch
3 - Ignition Lock Cylinder Control Actuator
4 - Ignition Switch
5 - Ignition Key Cylinder
6 - Horn Switch
7 - Inflatable Restraint Steering Wheel Module
8 - Turn Signal/Multifunction Switch
9 - Hazard Switch
