Front Bumper Fascia Replacement
Front Bumper Fascia Replacement

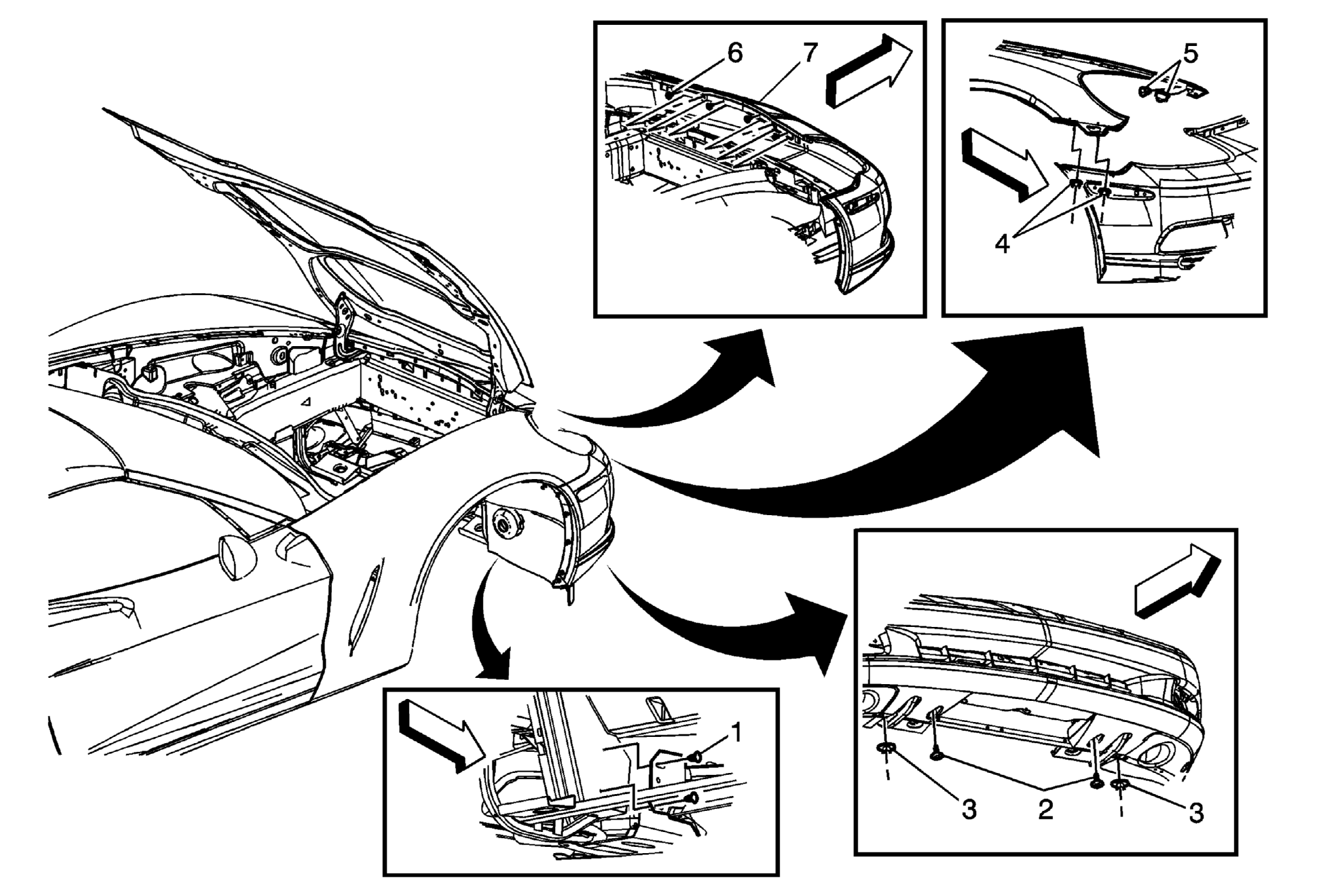

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the front wheelhouse (front liner) liner. Refer to Front Wheelhouse Liner Replacement (Front Liner) or Front Wheelhouse Liner Replacement (Rear Liner) . |
|
| 1 | Front Fascia Extension Plastic Retainers (Qty: 4) Tip: Release only the four retainers holding the front fascia extension to the radiator baffle. The fascia extension will come off with the fascia. |
| 2 | Front Fascia Lower Screws (Qty: 2)
NOTE:
Refer to Fastener Notice
.
Tighten: 2 N.m (18 lb in) |
| 3 | Front Fascia Lower Nuts (Qty: 2) Tighten: 5.5 N.m (49 lb in) |
| 4 | Front Fascia To Fender Nuts (Qty: 4) Tighten: 5 N.m (44 lb in) |
| 5 | Front Fascia Upper Retaining Clips (Qty: 4) Tip: Use a small nylon wedge tool to release the anti-rotation retainer on the outboard end of the fender/fascia joint and pull upwards and out to release it from the fender. |
| 6 | Front Fascia Upper Screws (Qty: 4) Tighten: 2 N.m (18 lb in) |
| 7 | Front Fascia |
