Seal Replacement - Fender to Hood

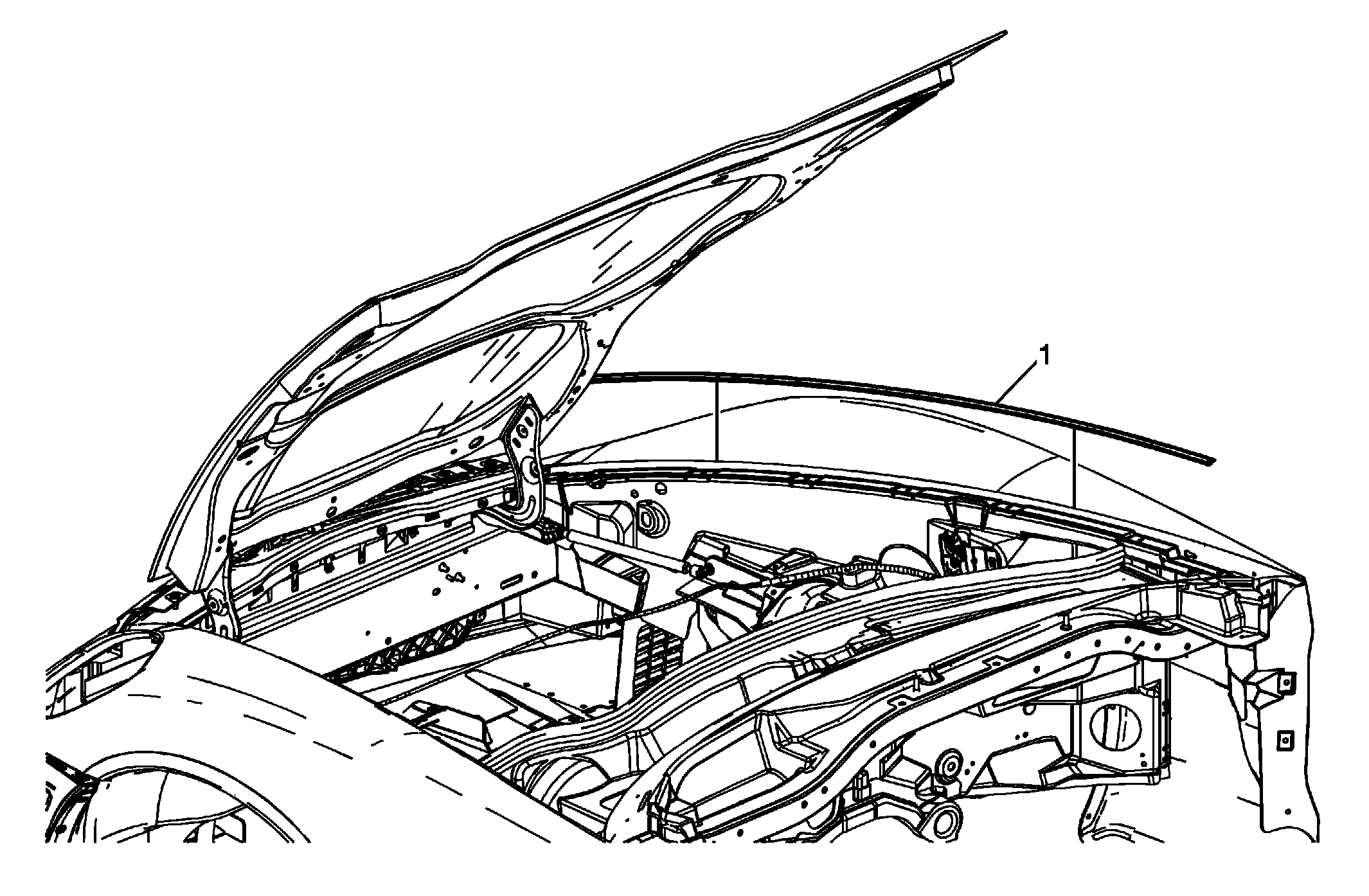

Fig 1: View Of Fender Seal
GM1701346Courtesy of GENERAL MOTORS CORP.
Seal Replacement - Fender to Hood

Callout Component Name
1 Fender Seal (Qty: 2)
Tip:  Clean the seal to fender contact surface before installing.
