Roof Panel Replacement

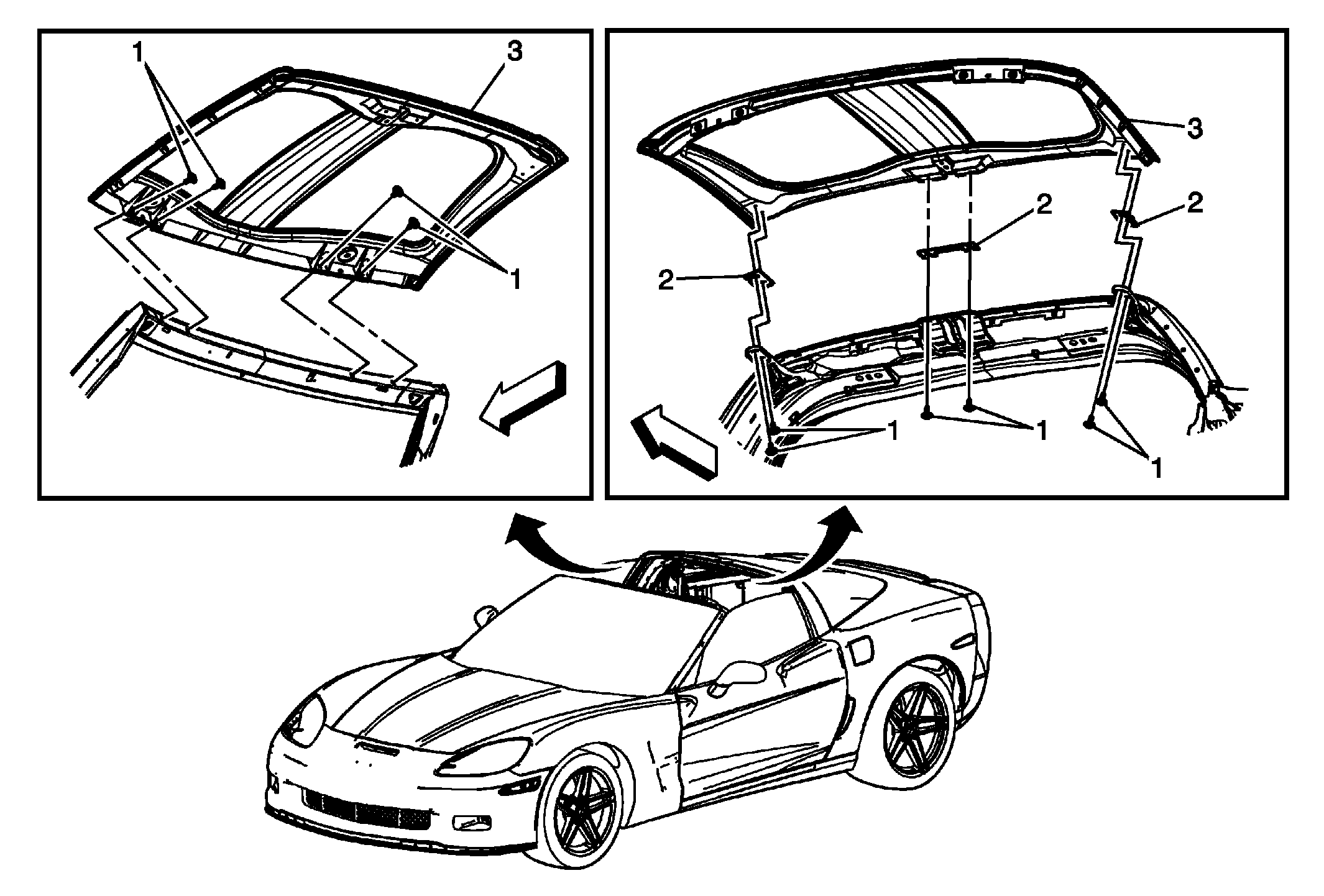

Fig 1: View Of Roof Panel, Bolts & Shims

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the headliner. Refer to Headlining Trim Panel Replacement . Remove the roof panel side weatherstrips, if required.
1	Roof Panel Bolt (Qty: 10) NOTE: Refer to Fastener Notice . Tip: New bolts MUST be used on installation. Tighten: 9 N.m (80 lb in)
2	Roof Panel Shim (Qty: 3) Tip: Shim quantity will vary.
3	Roof Panel
