Hood Latch Replacement

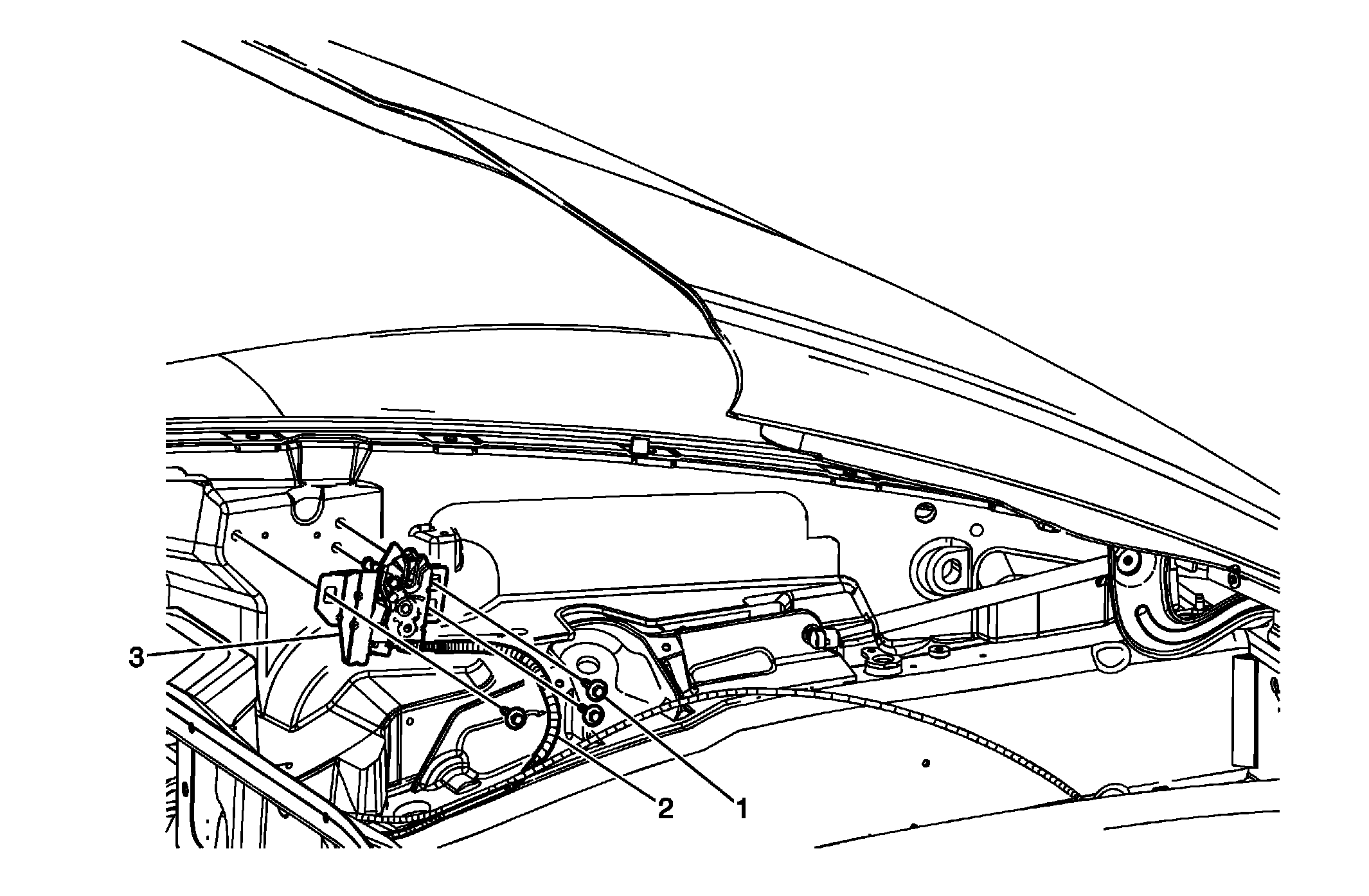

Fig 1: Locating Hood Latch, Release Cable & Latch Bolts
GM1701349Courtesy of GENERAL MOTORS CORP.
Hood Latch Replacement

Callout Component Name
1 Hood Latch Bolts (Qty: 3)
NOTE: Refer to Fastener Notice .

Tighten:  10 N.m (89 lb in)
2 Hood Latch Release Cable
Tip:  Disconnect the cable sheath grommet from the latch.
3 Hood Latch
Tip:
  • Mark the perimeter of the latch using a grease pencil.
  • Adjust as necessary.
