Automatic Transmission Controls Schematics

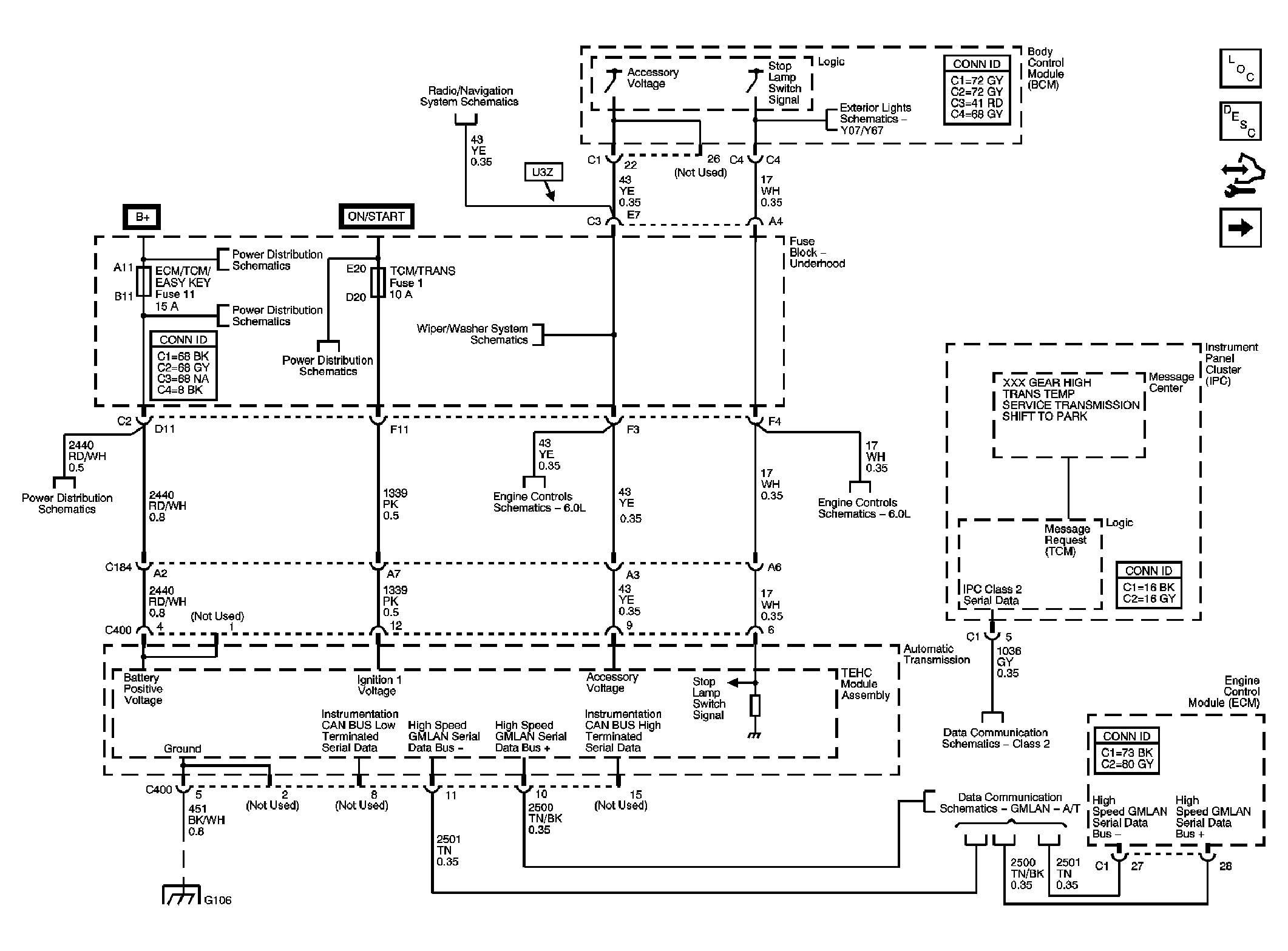

Fig 1: DLC, Ground, Power, and Stop Lamp Signal Schematic
GM1836704Courtesy of GENERAL MOTORS CORP.

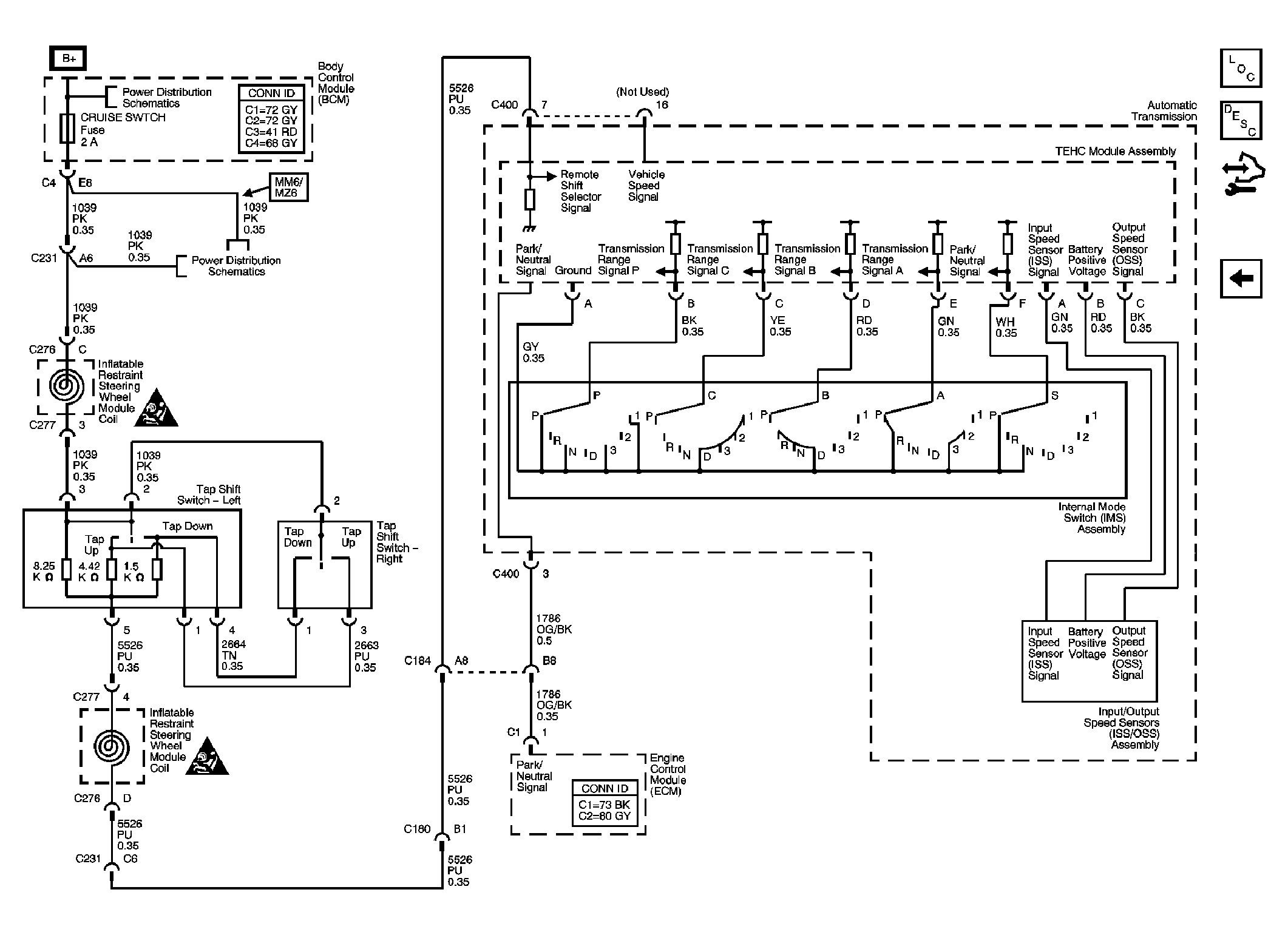

Fig 2: Input/Output Speed Sensors (ISS/OSS), Internal Mode Switch (IMS), and TAP Shift Switches Schematic
GM1836715Courtesy of GENERAL MOTORS CORP.
