Electronic Suspension Control Schematics

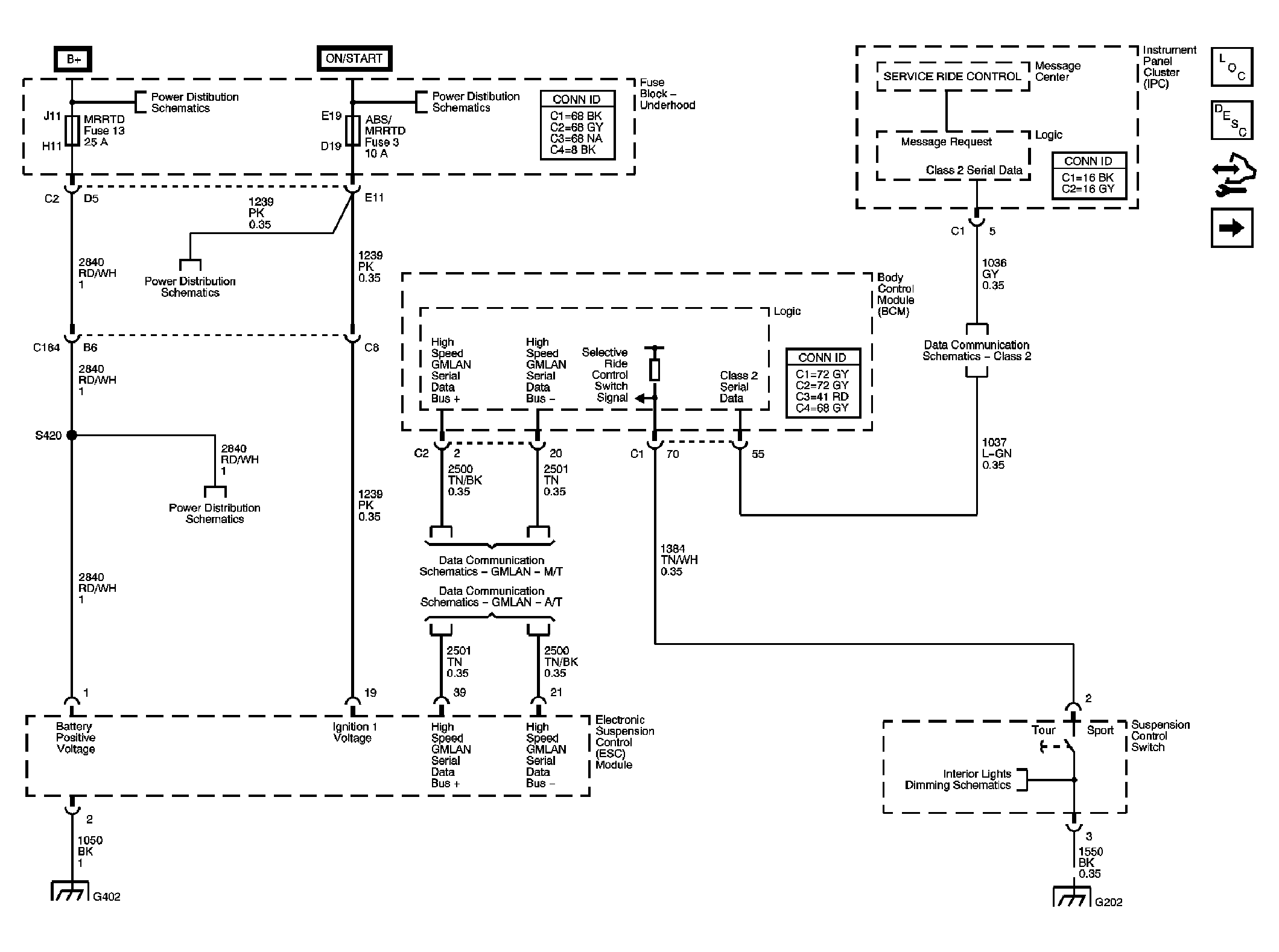

Fig 1: Control Switch, DLC, Ground, and Power Schematic

GM1772070

Courtesy of GENERAL MOTORS CORP.

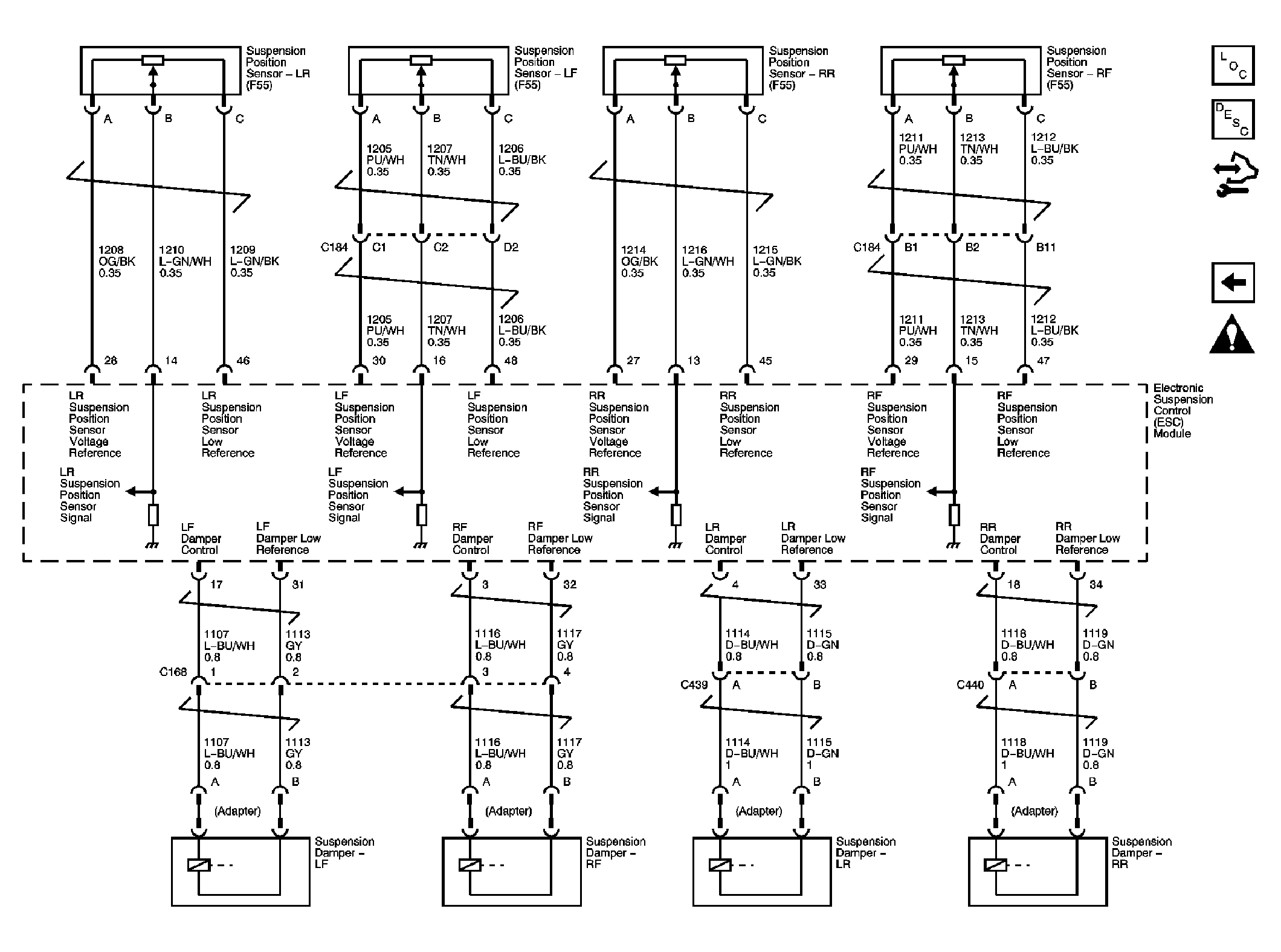

Fig 2: Sensors and Dampers Schematic

GM1772076

Courtesy of GENERAL MOTORS CORP.
