SIR Schematics

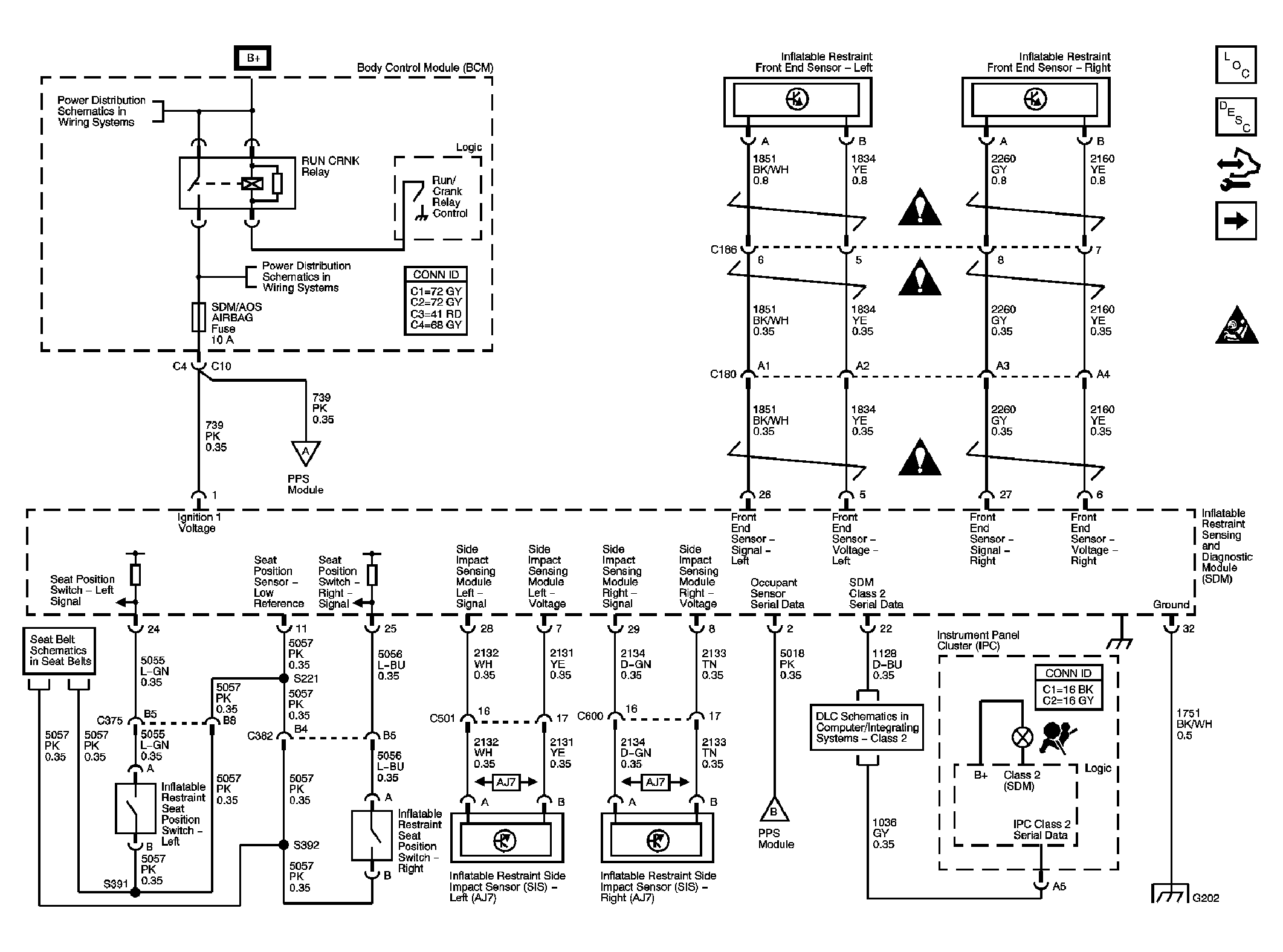

Fig 1: Ground, Indicator, Power, Sensors and Switches Schematic
GM1660136Courtesy of GENERAL MOTORS CORP.

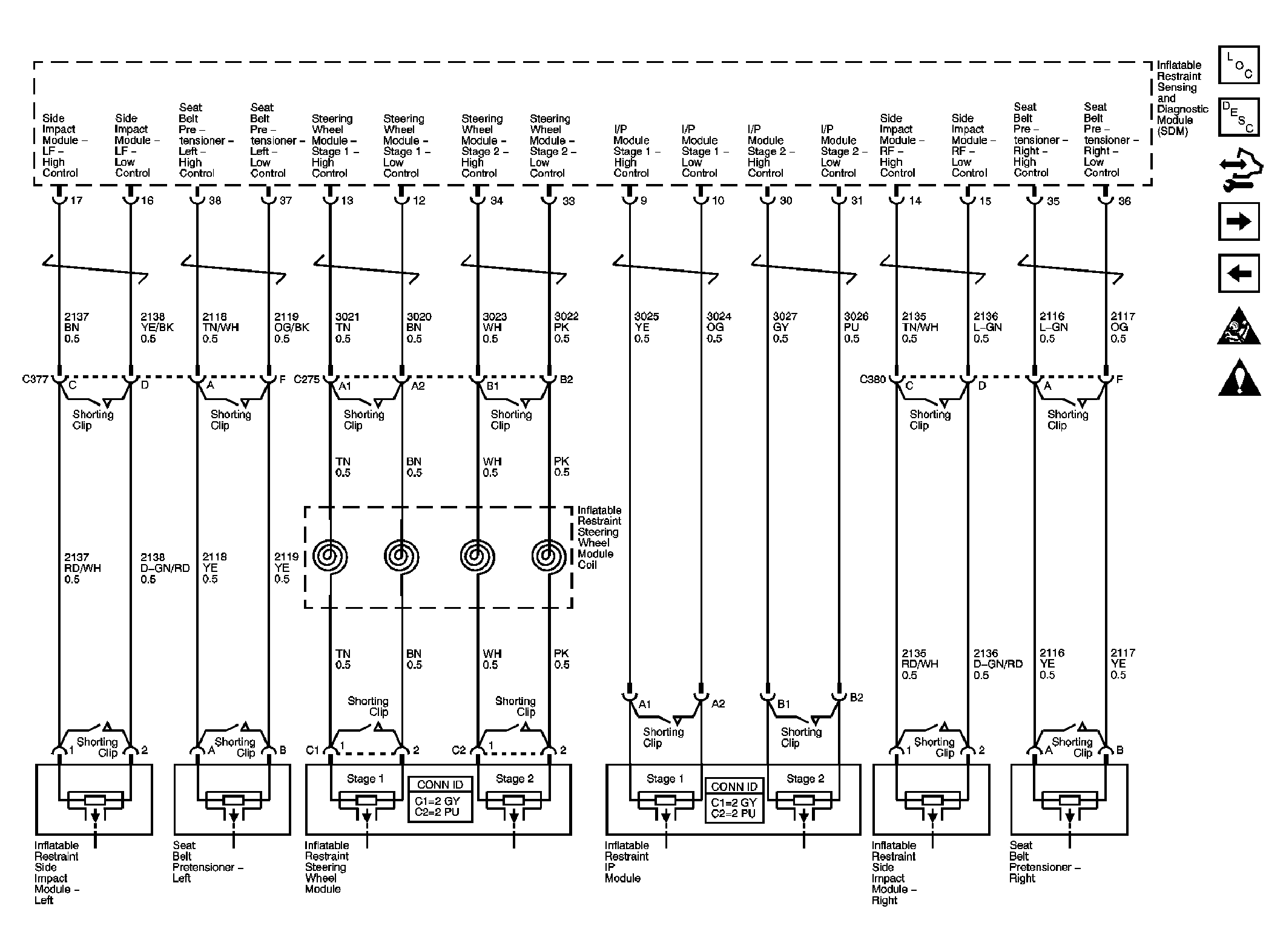

Fig 2: Deployment Loops Schematic
GM1742775Courtesy of GENERAL MOTORS CORP.

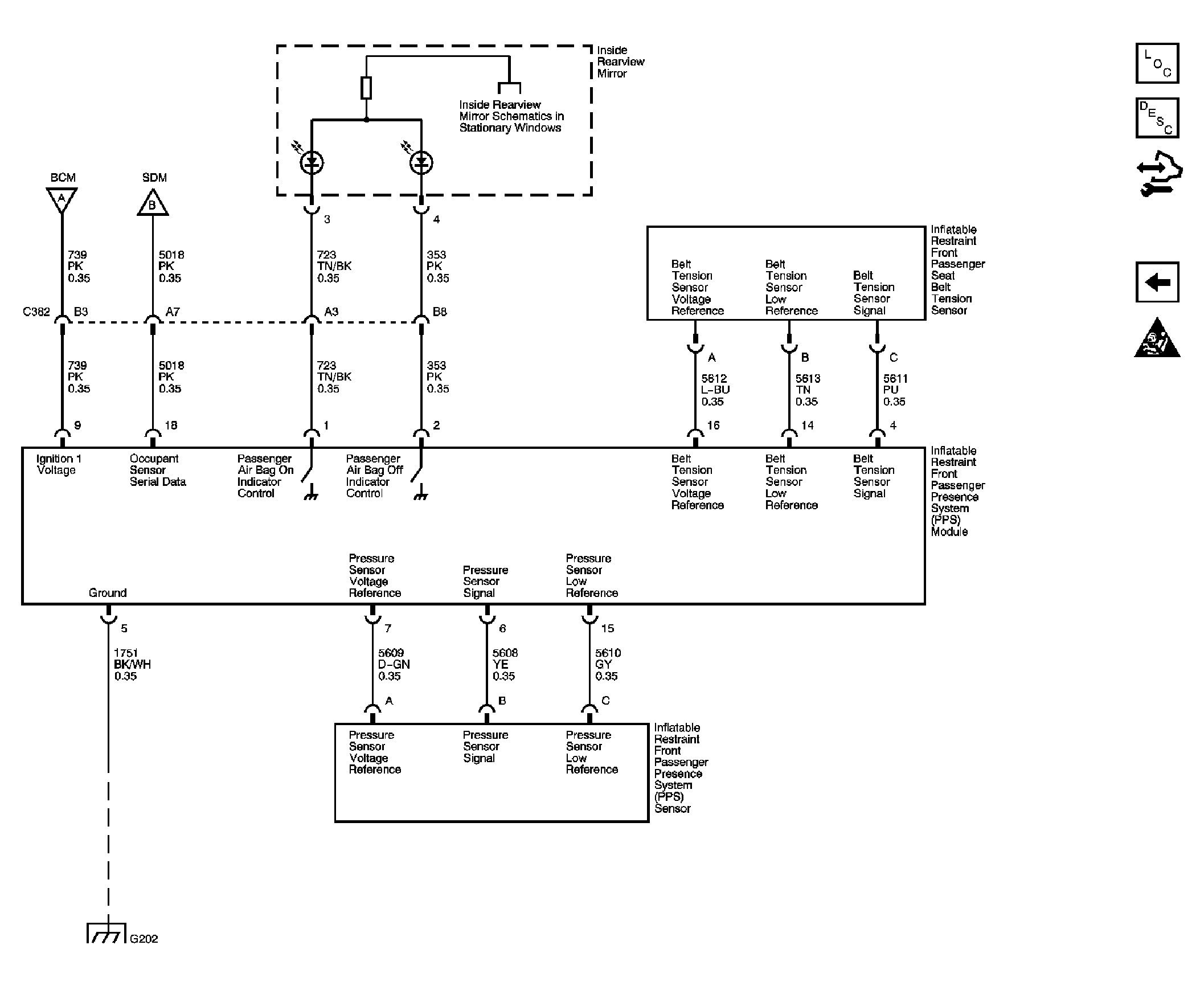

Fig 3: Passenger Presence System (PPS) Schematic
GM1660021Courtesy of GENERAL MOTORS CORP.
