HVAC Schematics

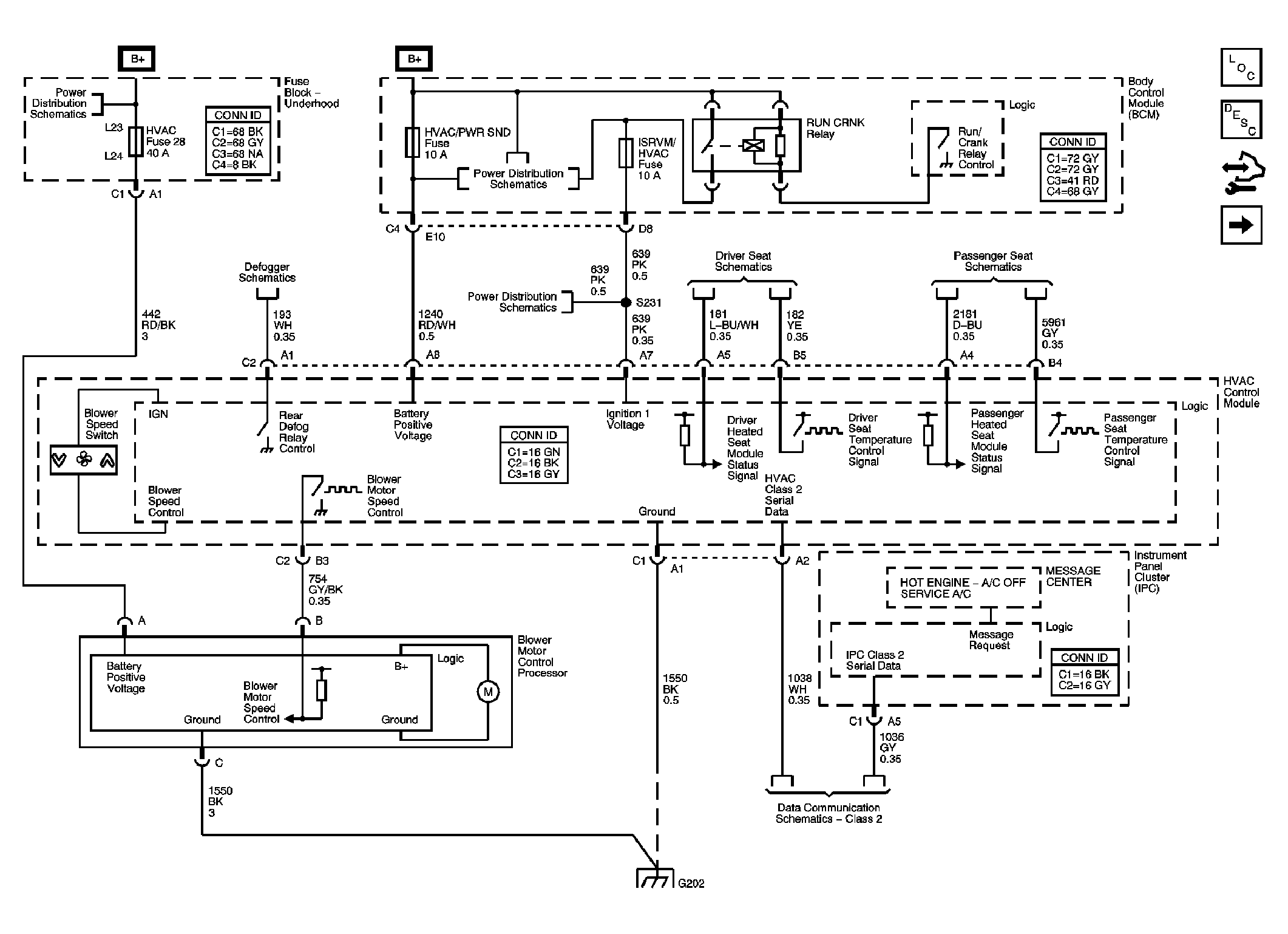

Fig 1: Blower Controls, DLC, Ground, Power, and Subsystem Schematic
GM1771819Courtesy of GENERAL MOTORS CORP.

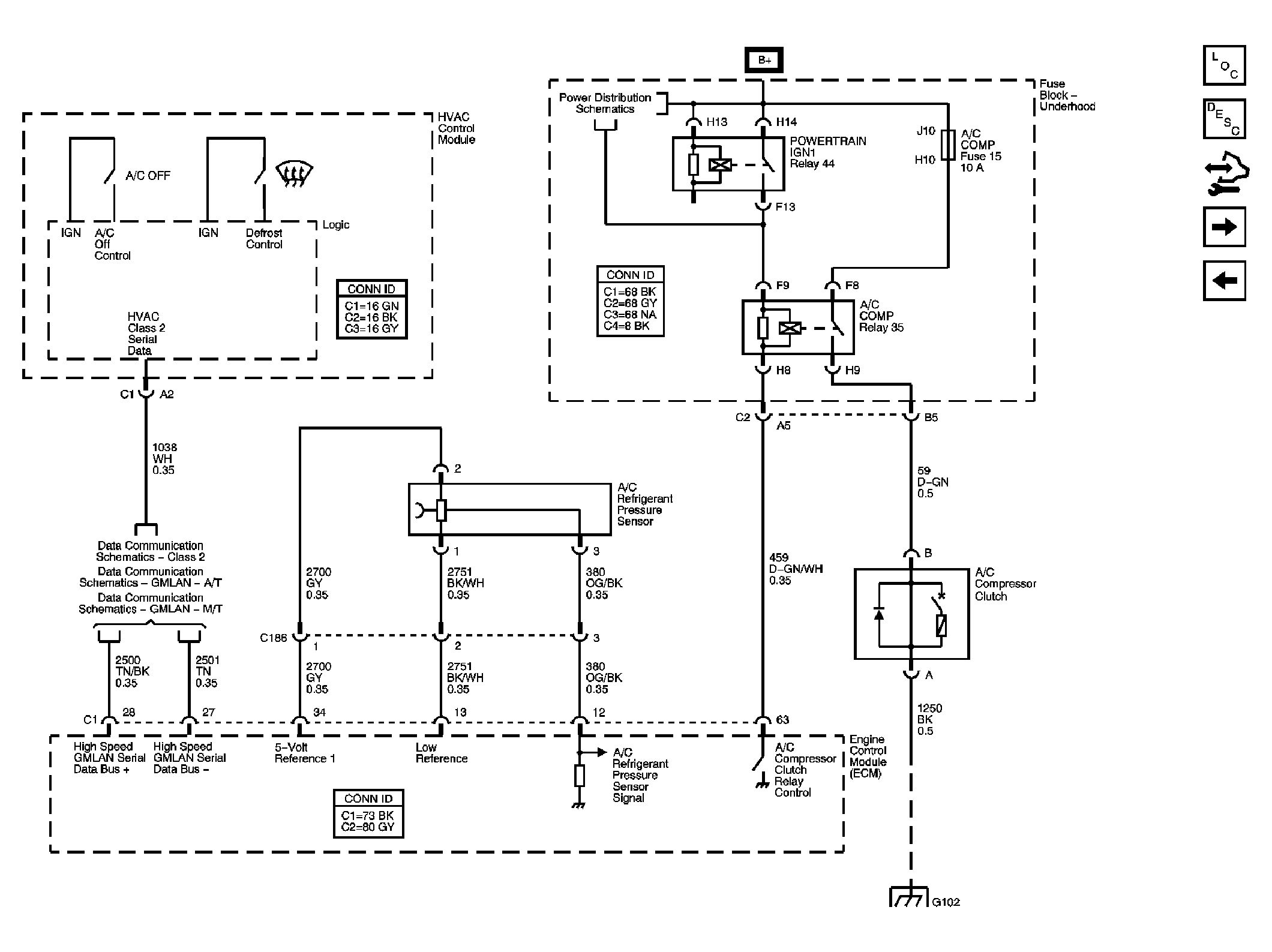

Fig 2: Compressor Controls Schematic
GM1771826Courtesy of GENERAL MOTORS CORP.

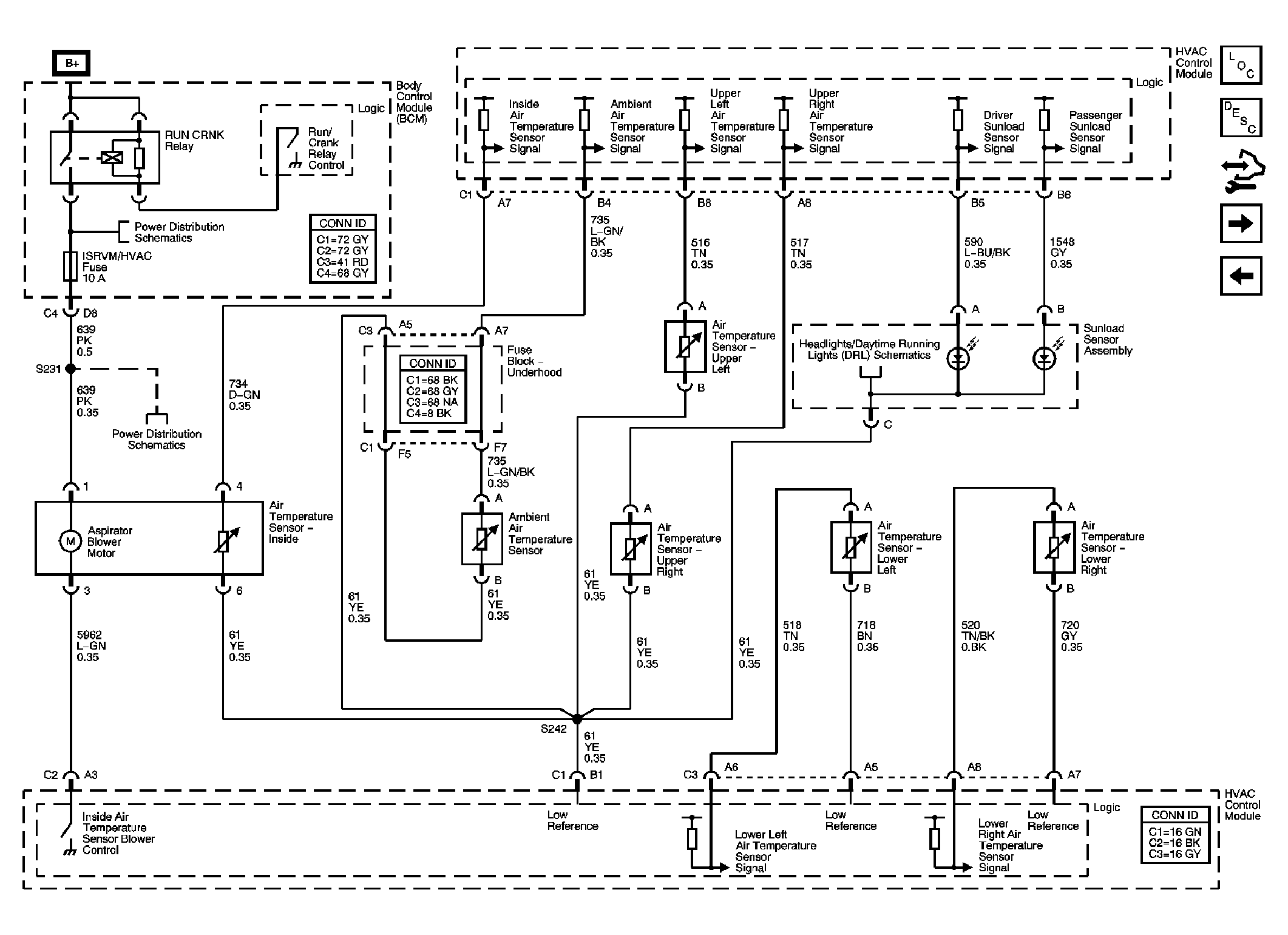

Fig 3: Temperature Sensors Schematic
GM1771828Courtesy of GENERAL MOTORS CORP.

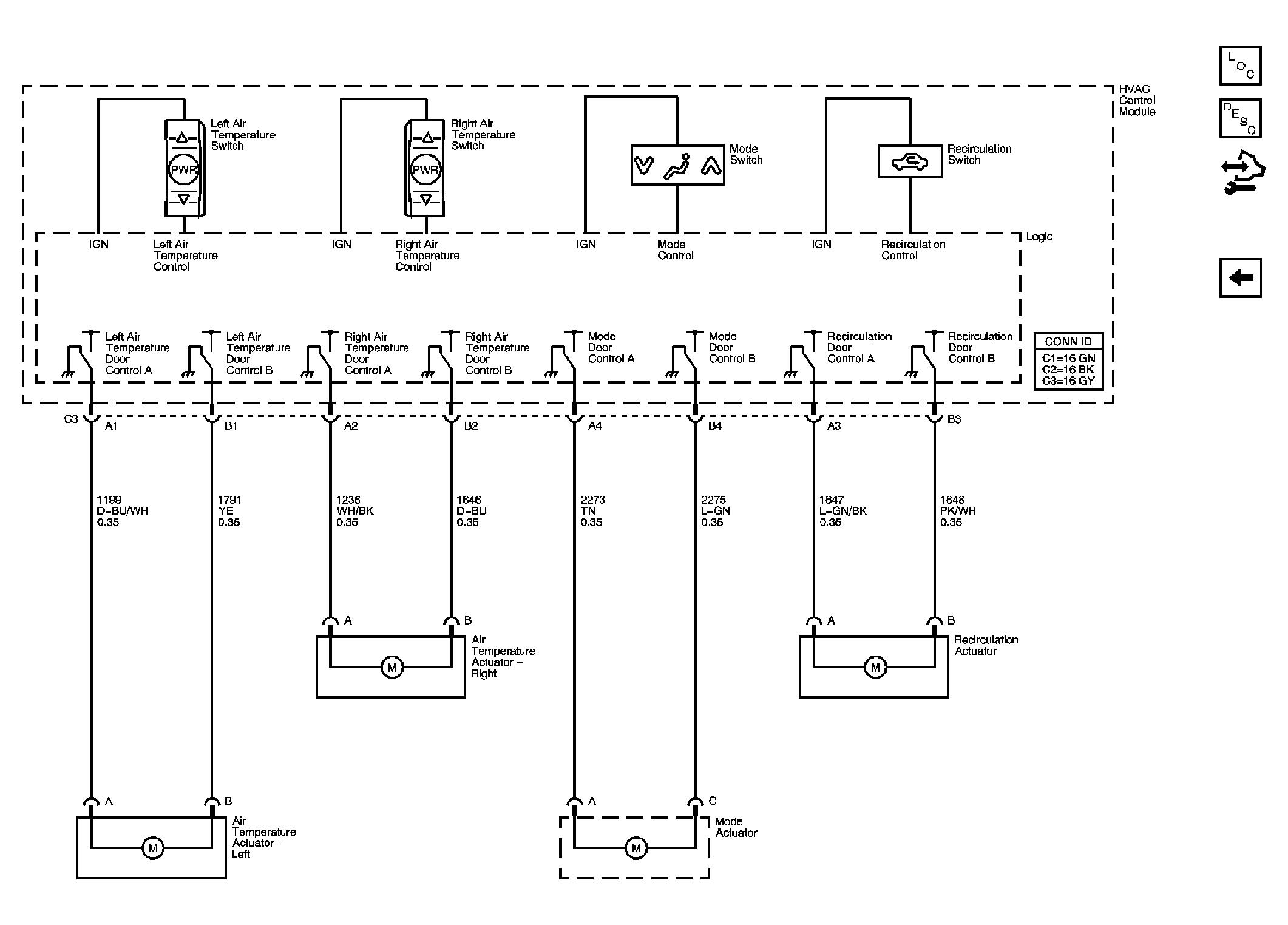

Fig 4: Actuators Schematic
GM1771833Courtesy of GENERAL MOTORS CORP.
