Engine Controls Schematics

WARNING: This page is about a different variant/trim than selected.

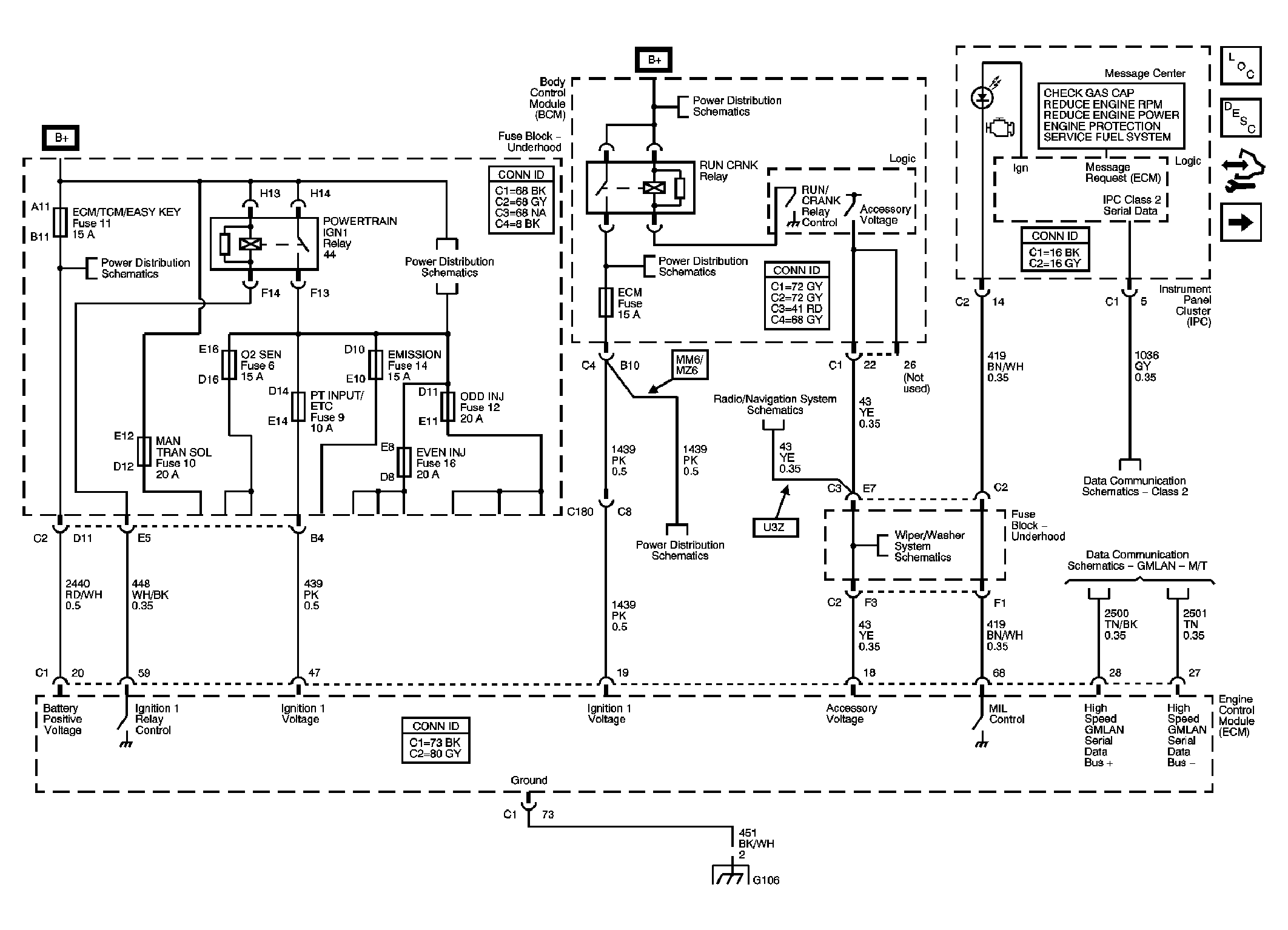

Fig 1: DLC, Ground, MIL, and Power Schematic

Courtesy of GENERAL MOTORS CORP.

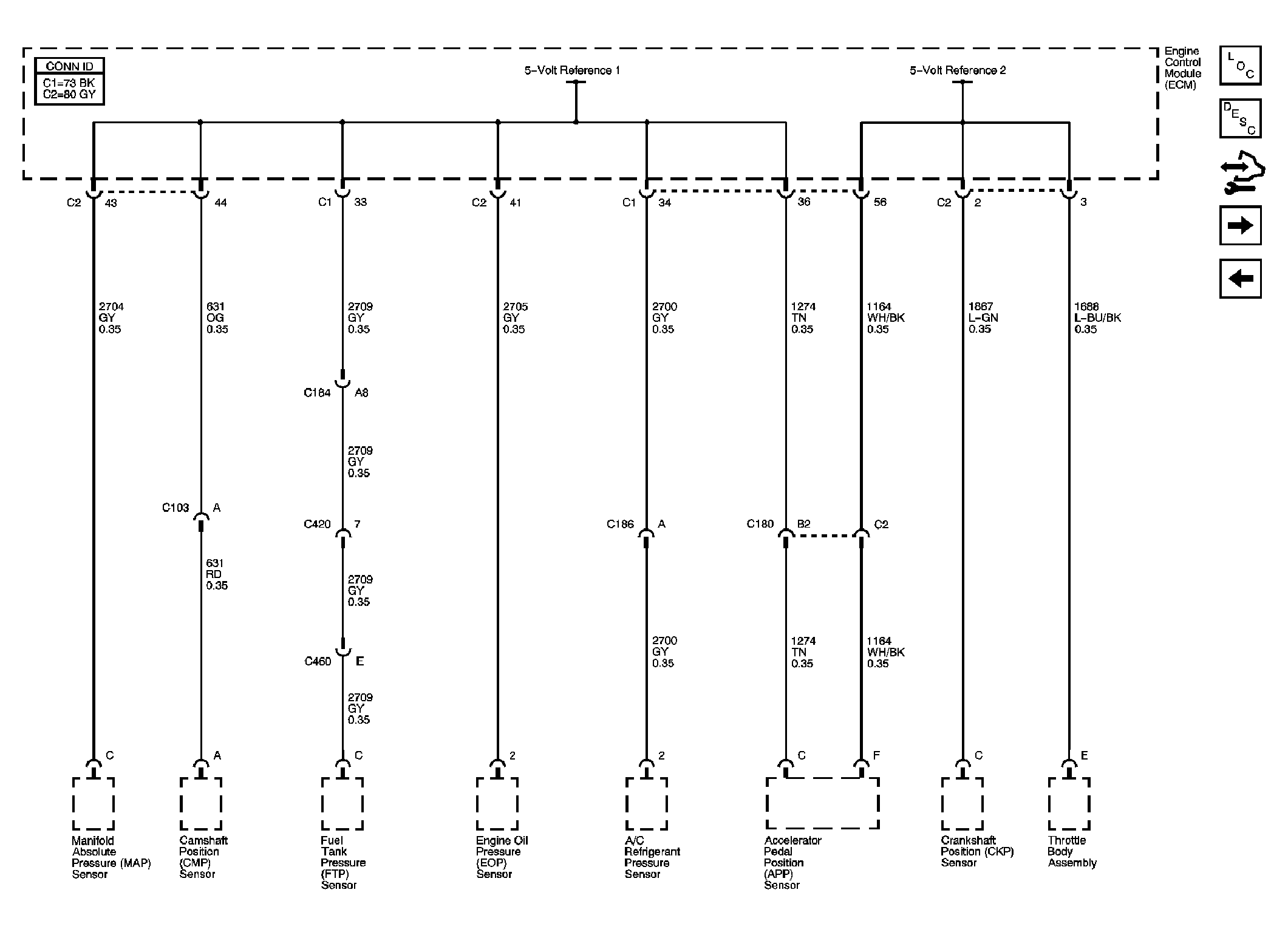

Fig 2: Engine Data Sensors - 5-Volt Reference Schematic

Courtesy of GENERAL MOTORS CORP.

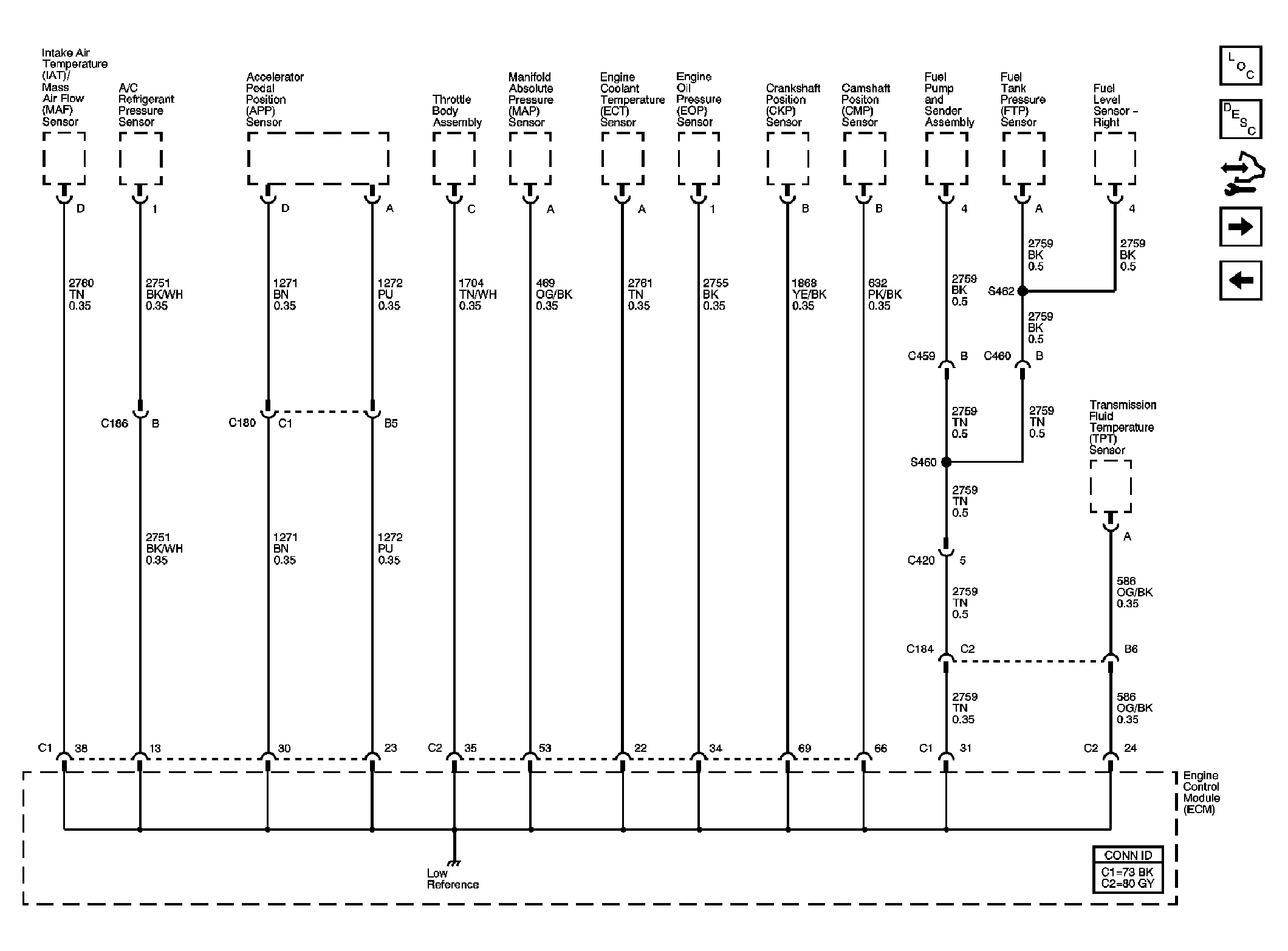

Fig 3: Engine Data Sensors - Low Reference Schematic

Courtesy of GENERAL MOTORS CORP.

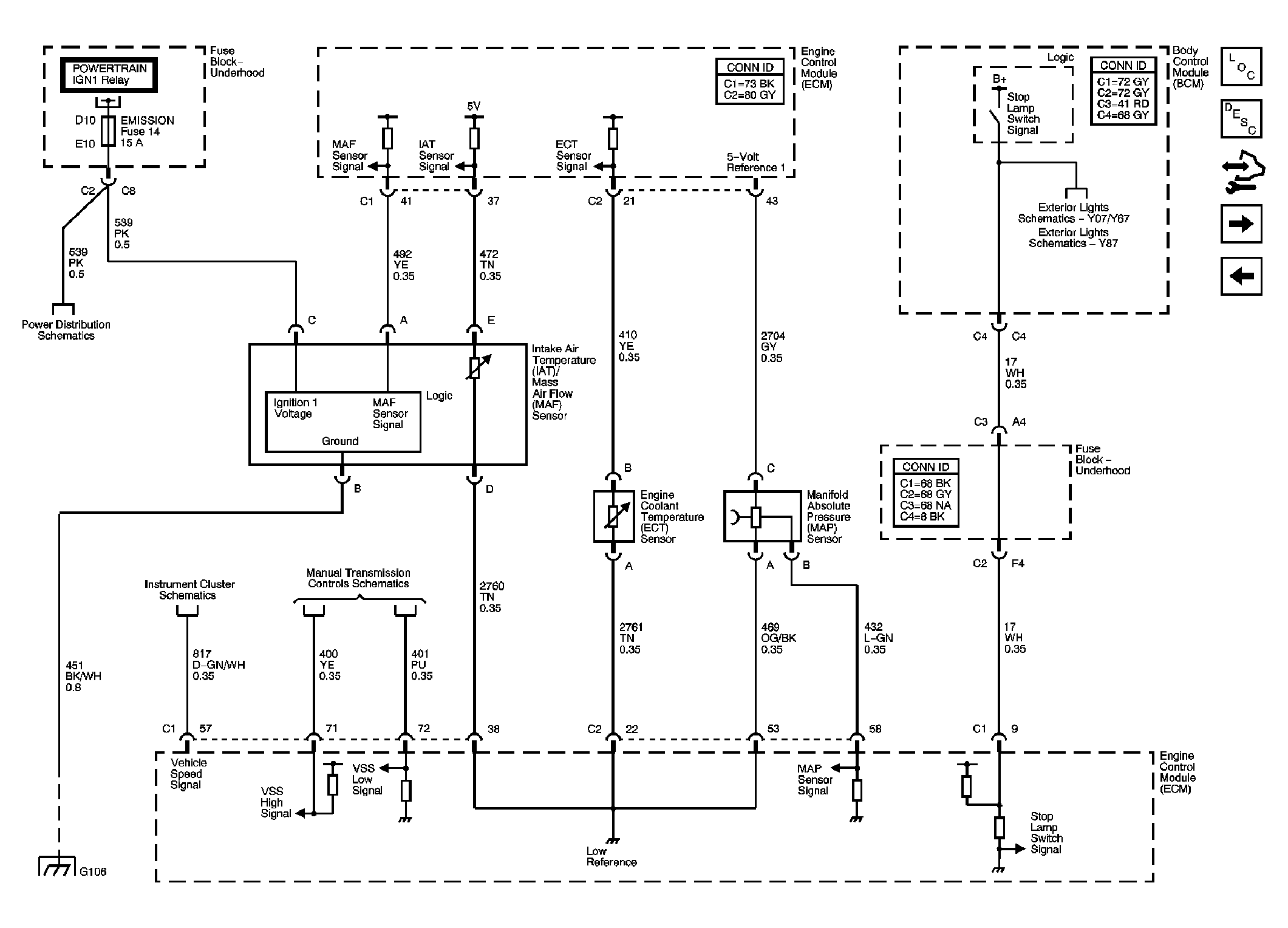

Fig 4: Engine Data Sensors - Pressure, Temperature, MAF, VSS, and Extended Brake Travel Schematic

Courtesy of GENERAL MOTORS CORP.

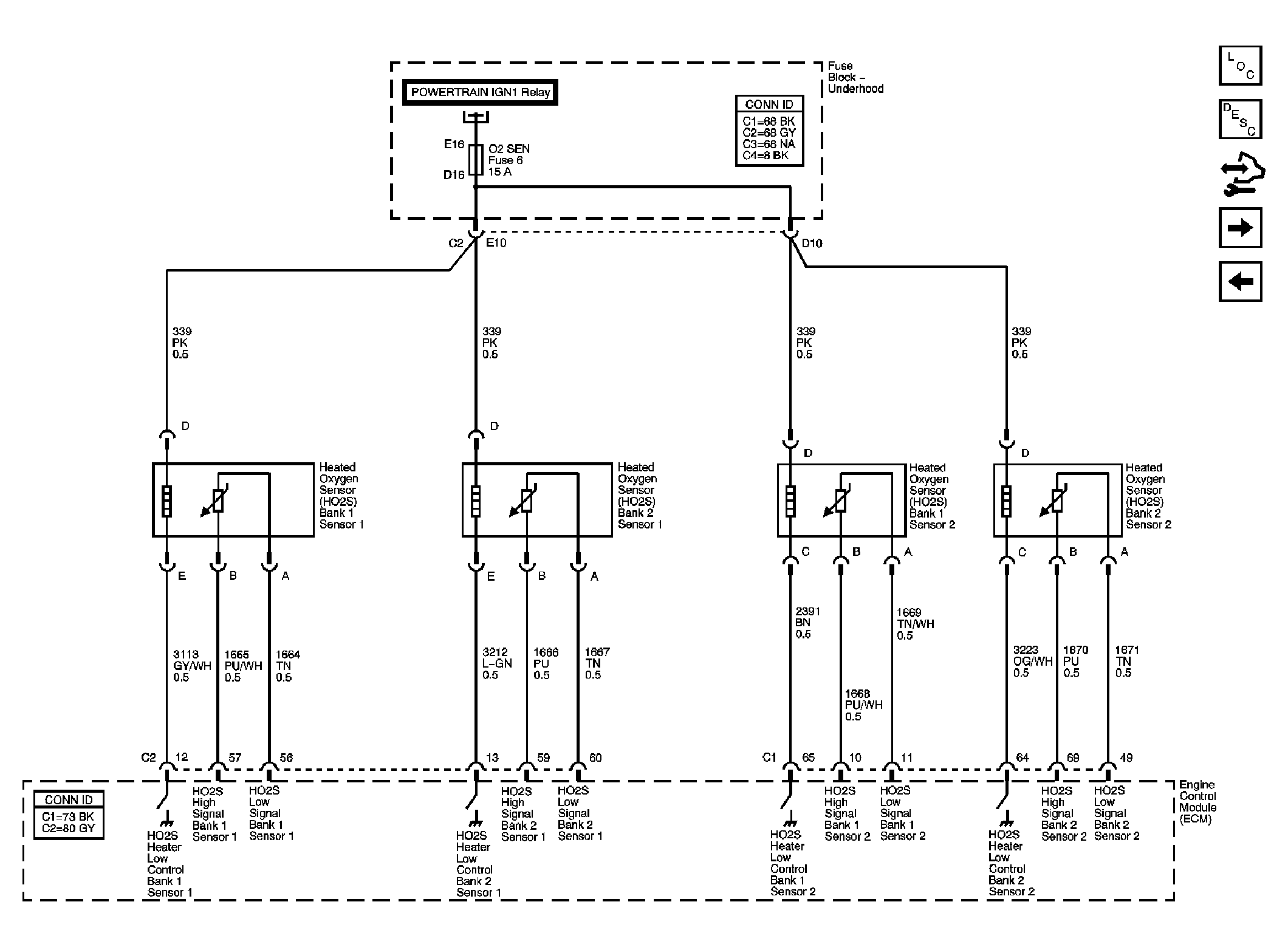

Fig 5: Engine Data Sensors - Oxygen Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

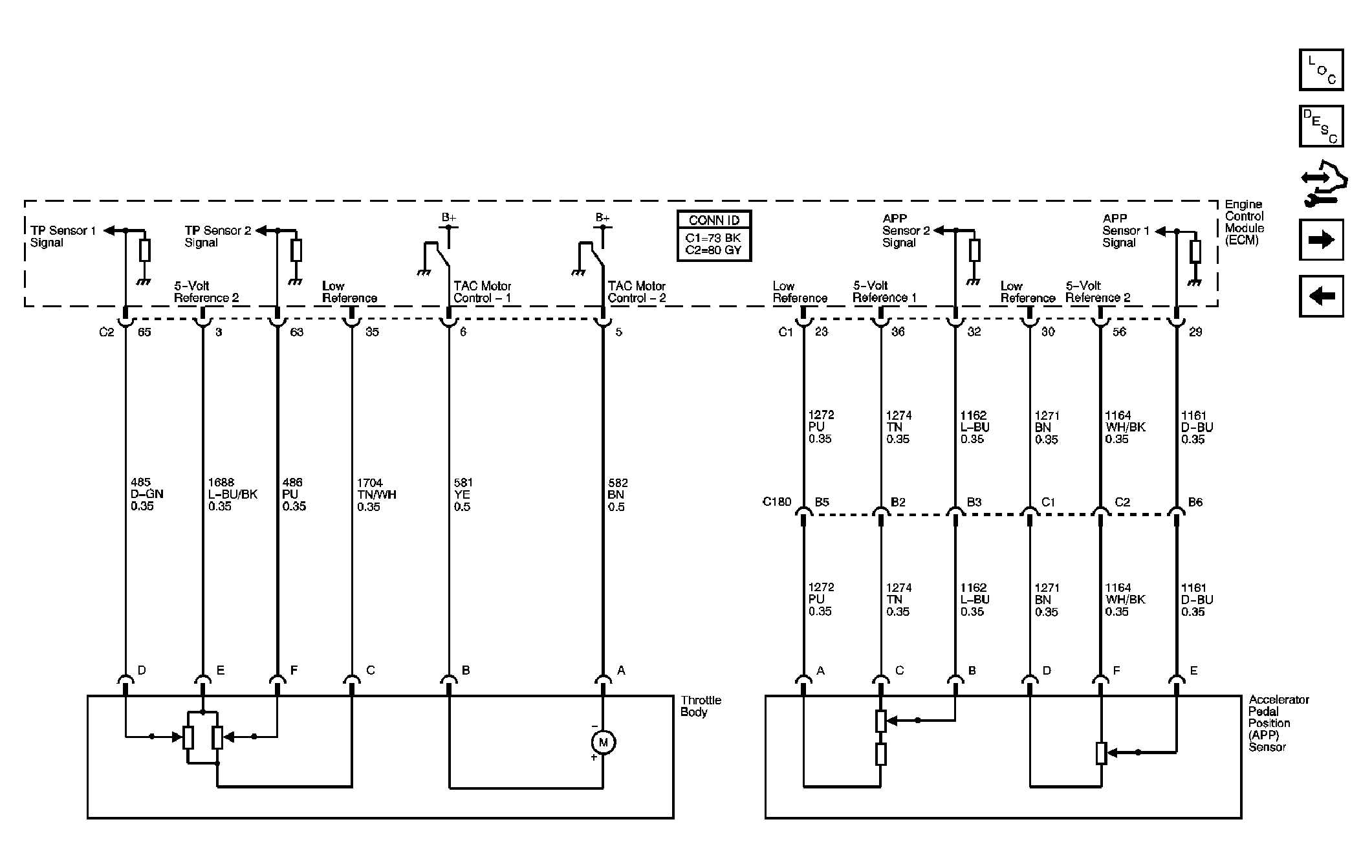

Fig 6: Engine Data Sensors - Electronic Throttle Controls Schematic

Courtesy of GENERAL MOTORS CORP.

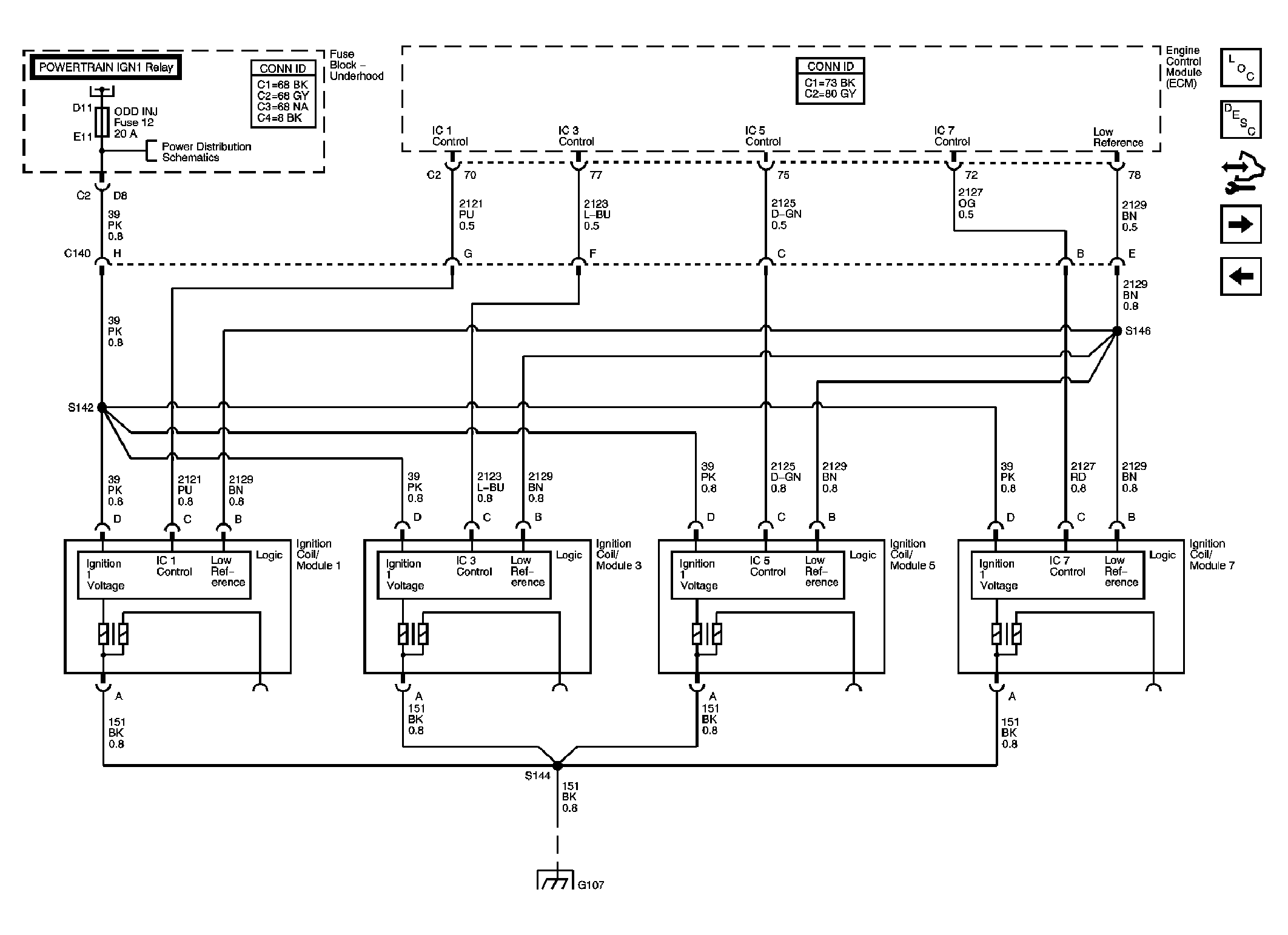

Fig 7: Ignition System - Bank 1 Schematic

Courtesy of GENERAL MOTORS CORP.

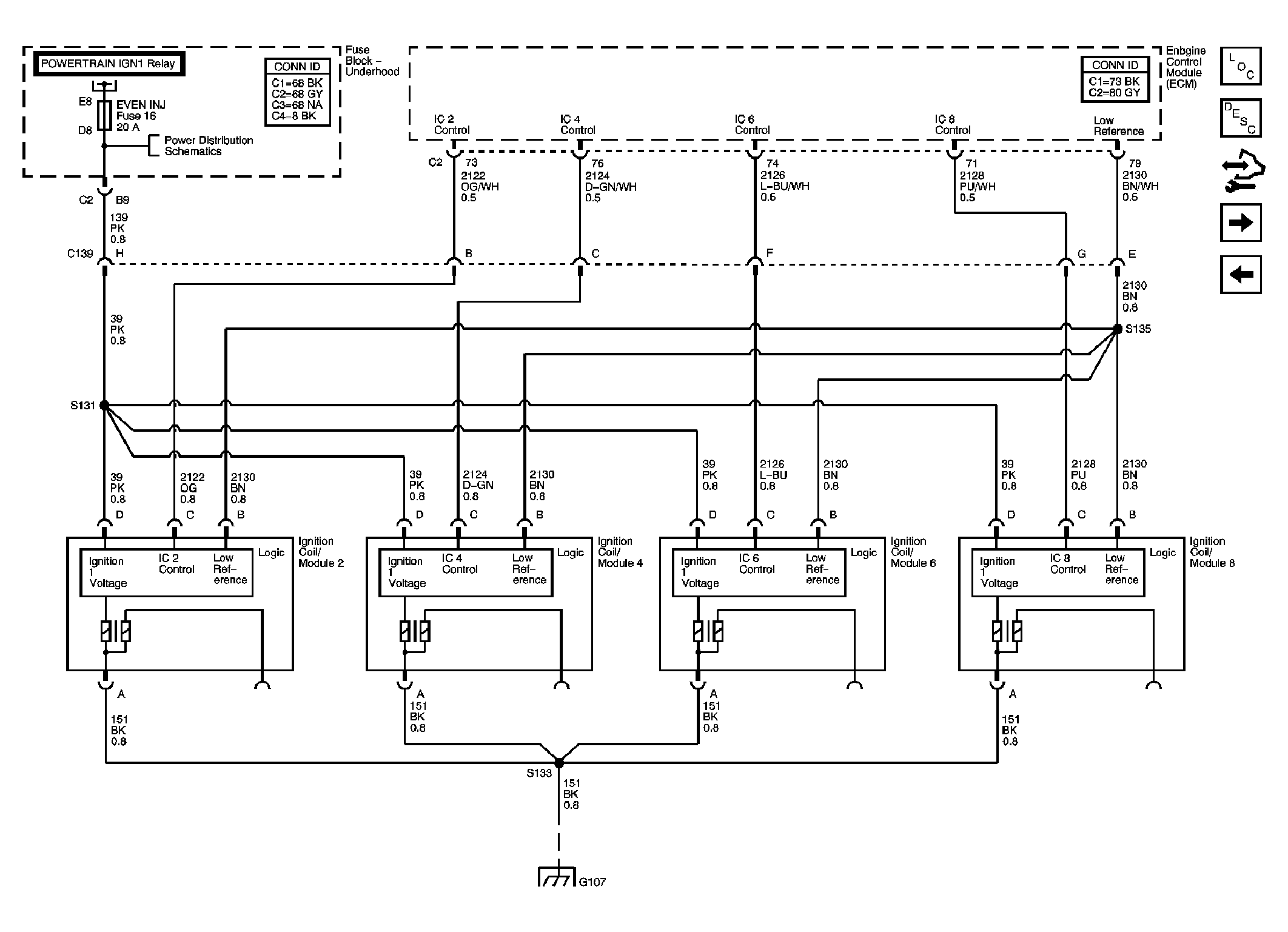

Fig 8: Ignition System - Bank 2 Schematic

Courtesy of GENERAL MOTORS CORP.

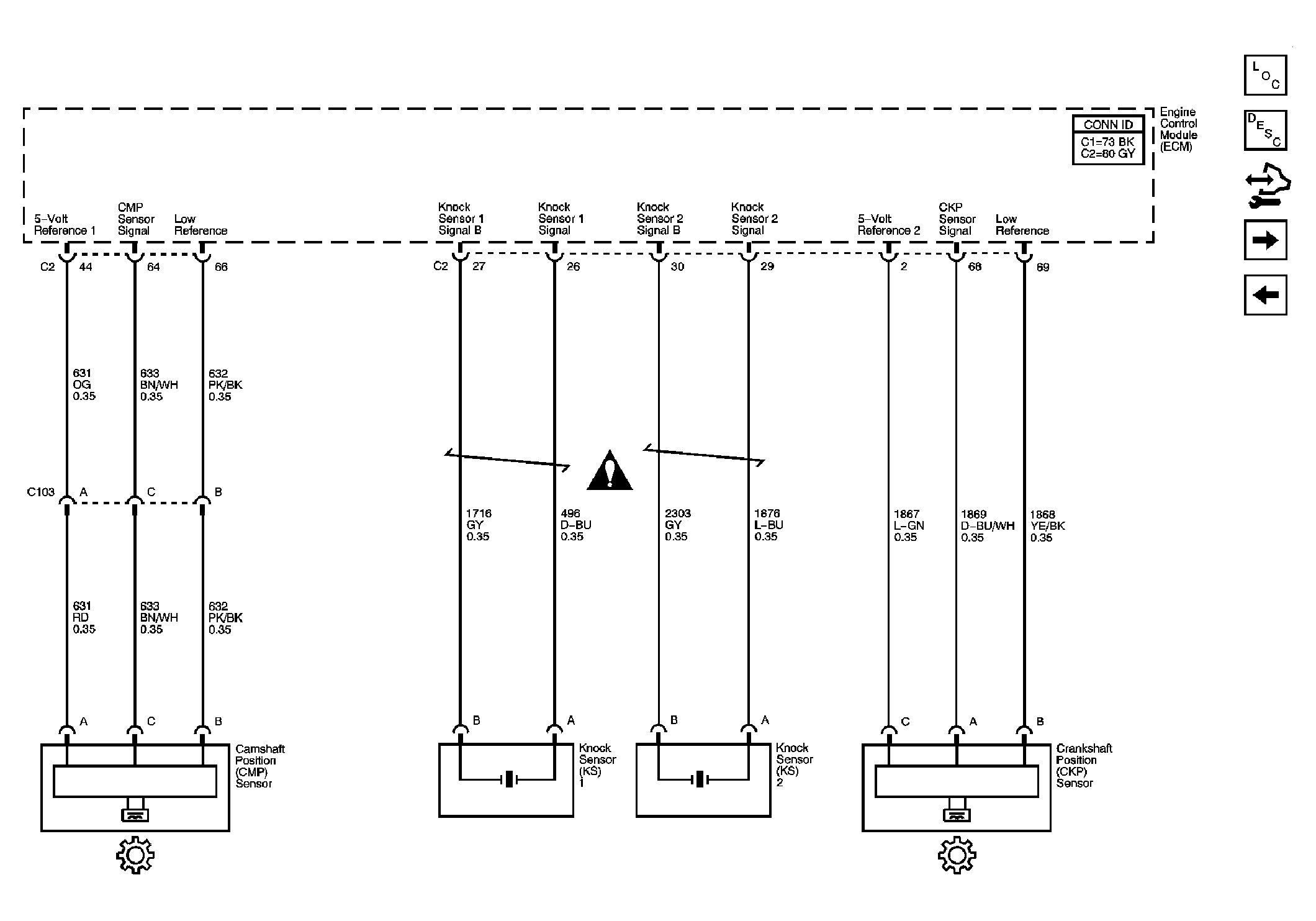

Fig 9: Ignition Controls - Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

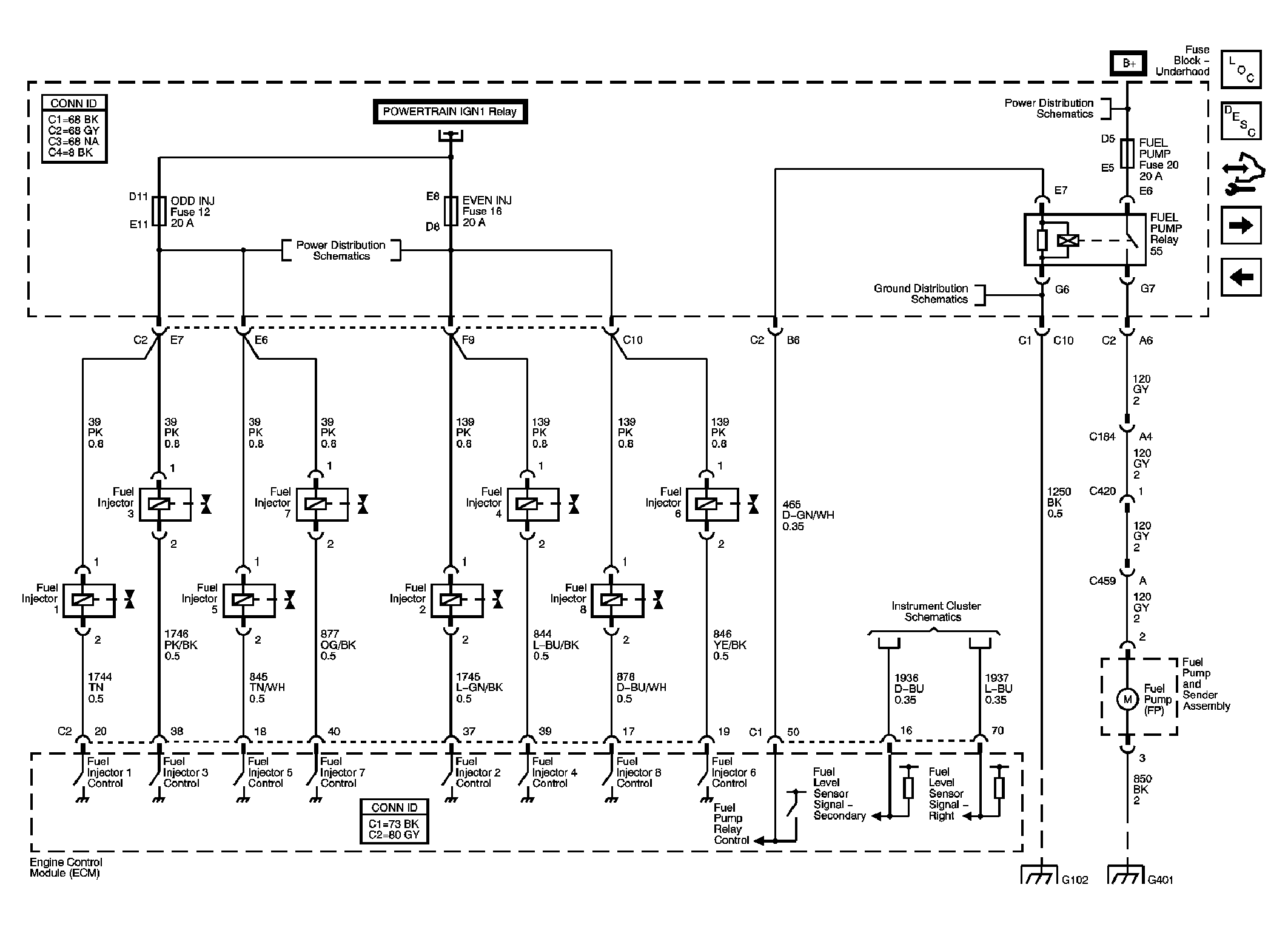

Fig 10: Fuel Pump Controls and Injectors Schematic

Courtesy of GENERAL MOTORS CORP.

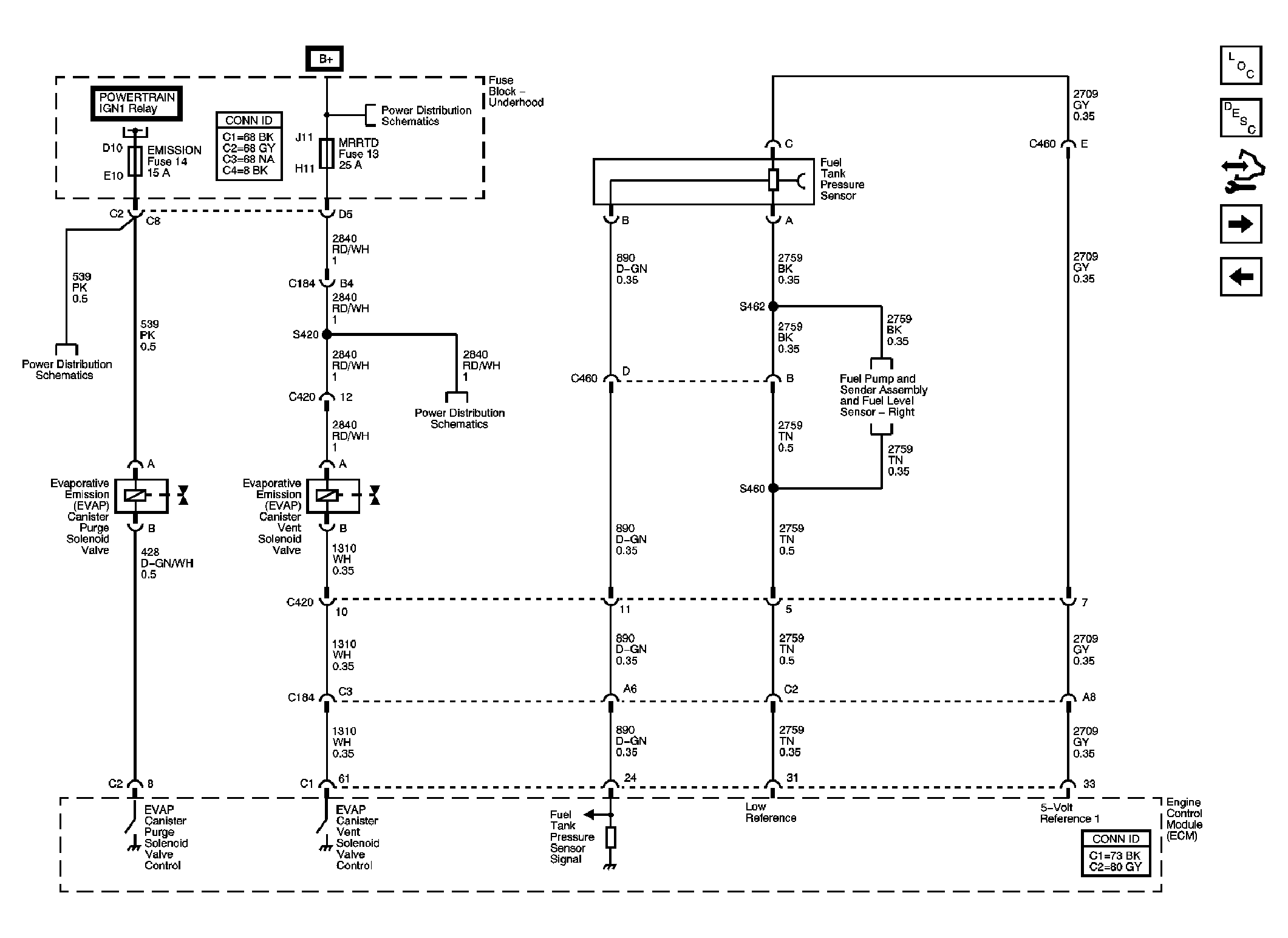

Fig 11: Fuel Controls - EVAP Controls Schematic

Courtesy of GENERAL MOTORS CORP.

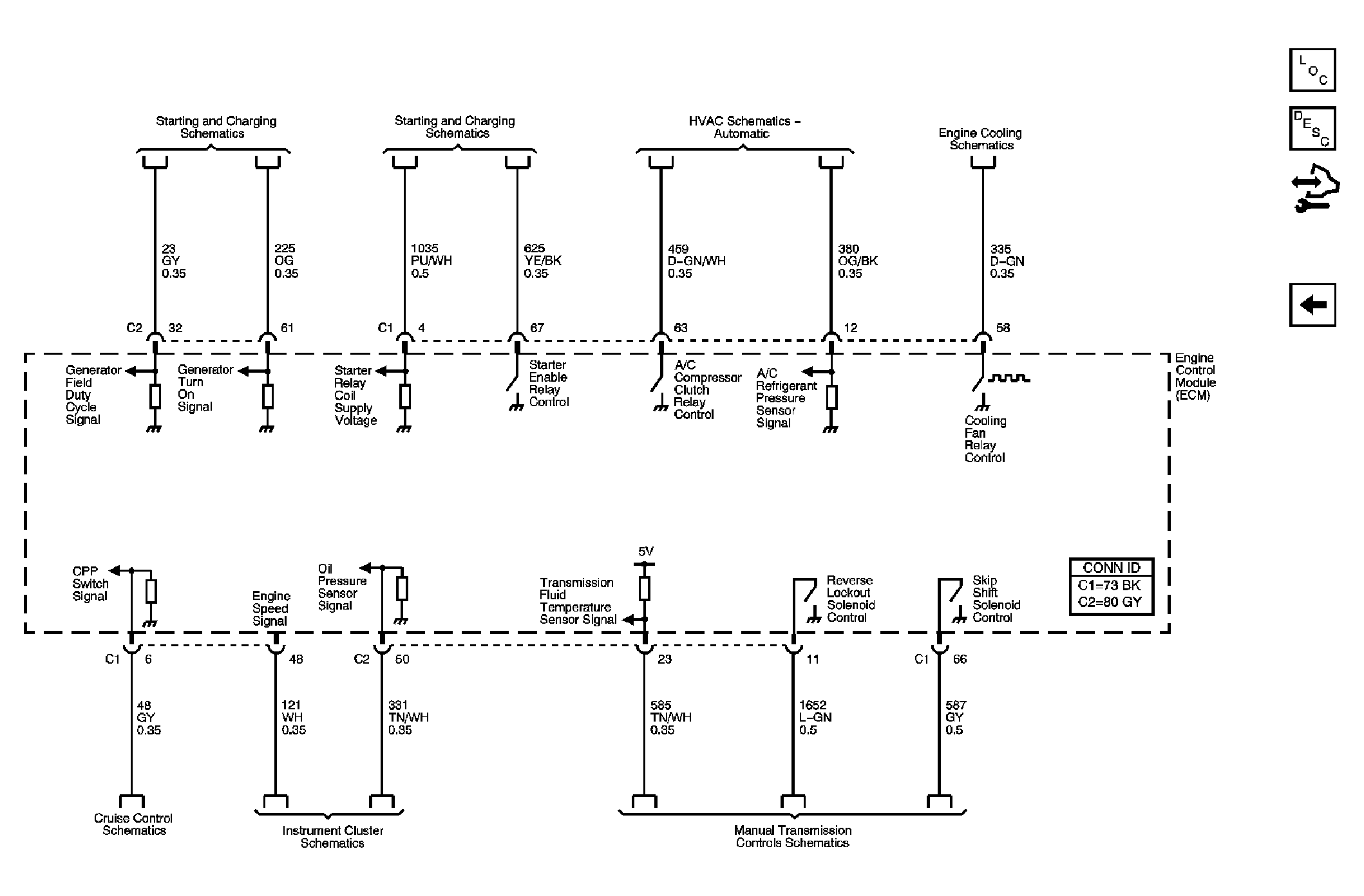

Fig 12: Controlled/Monitored Subsystem and Manual Transmission Control References Schematic

Courtesy of GENERAL MOTORS CORP.
