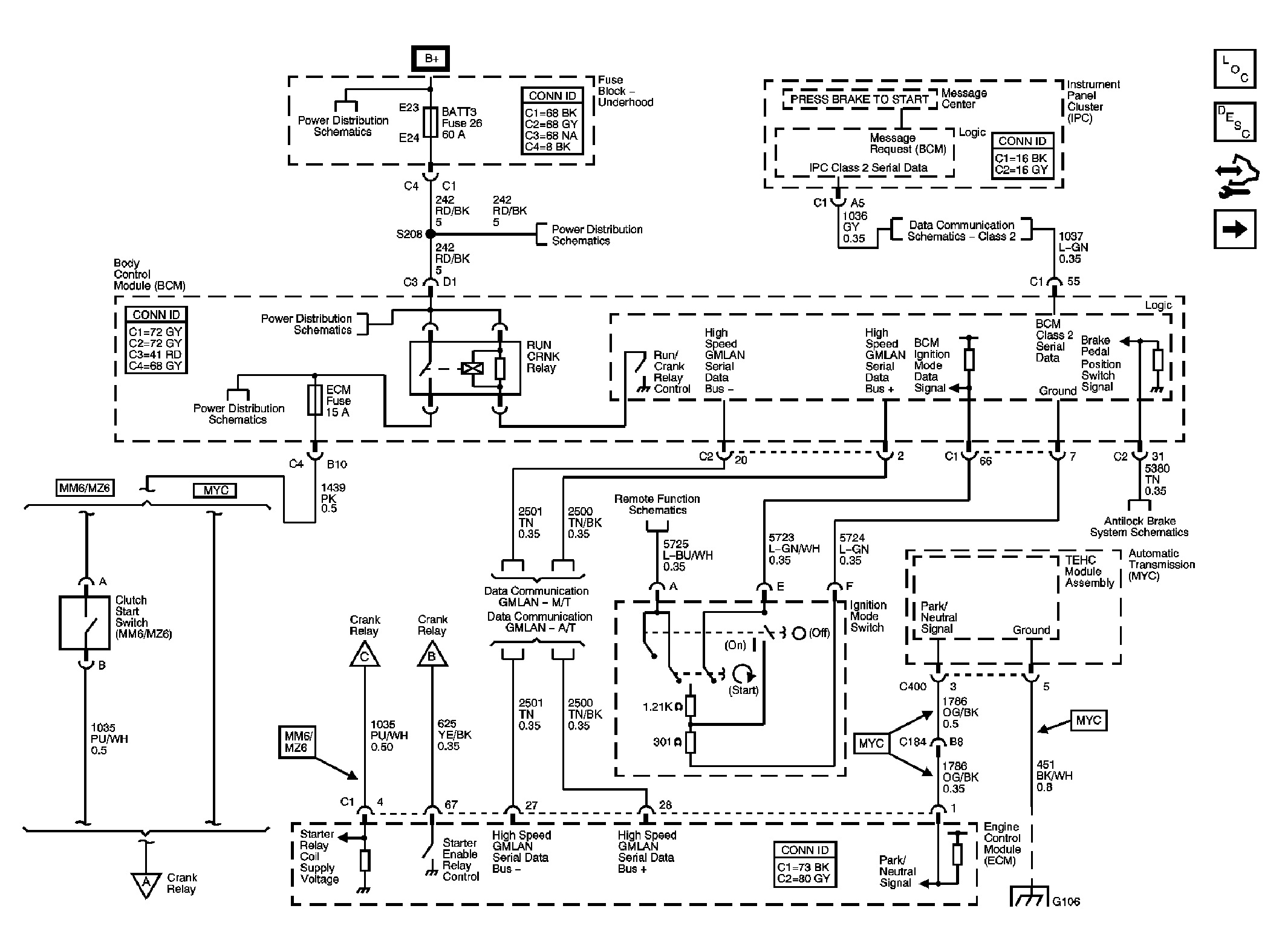

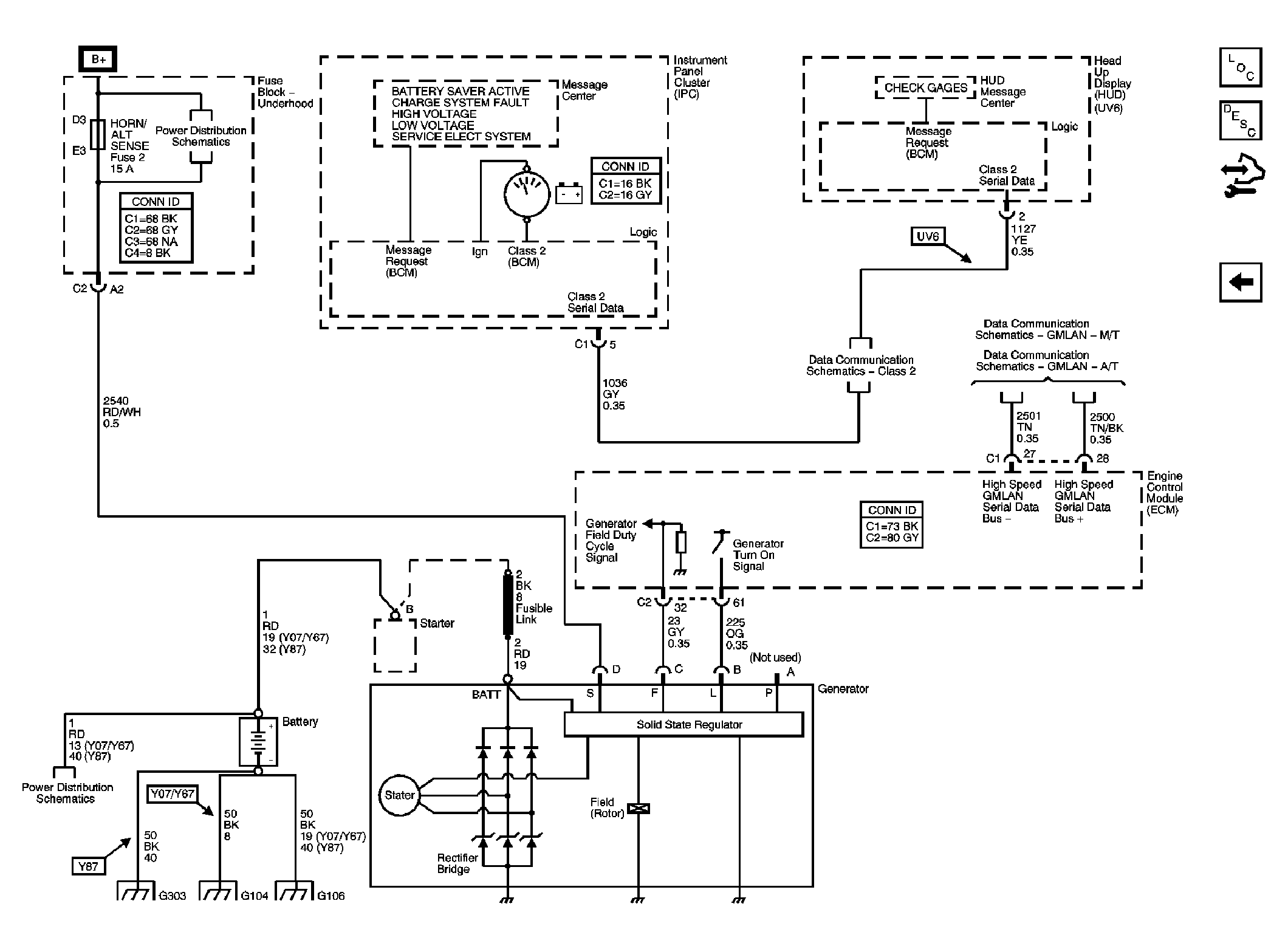

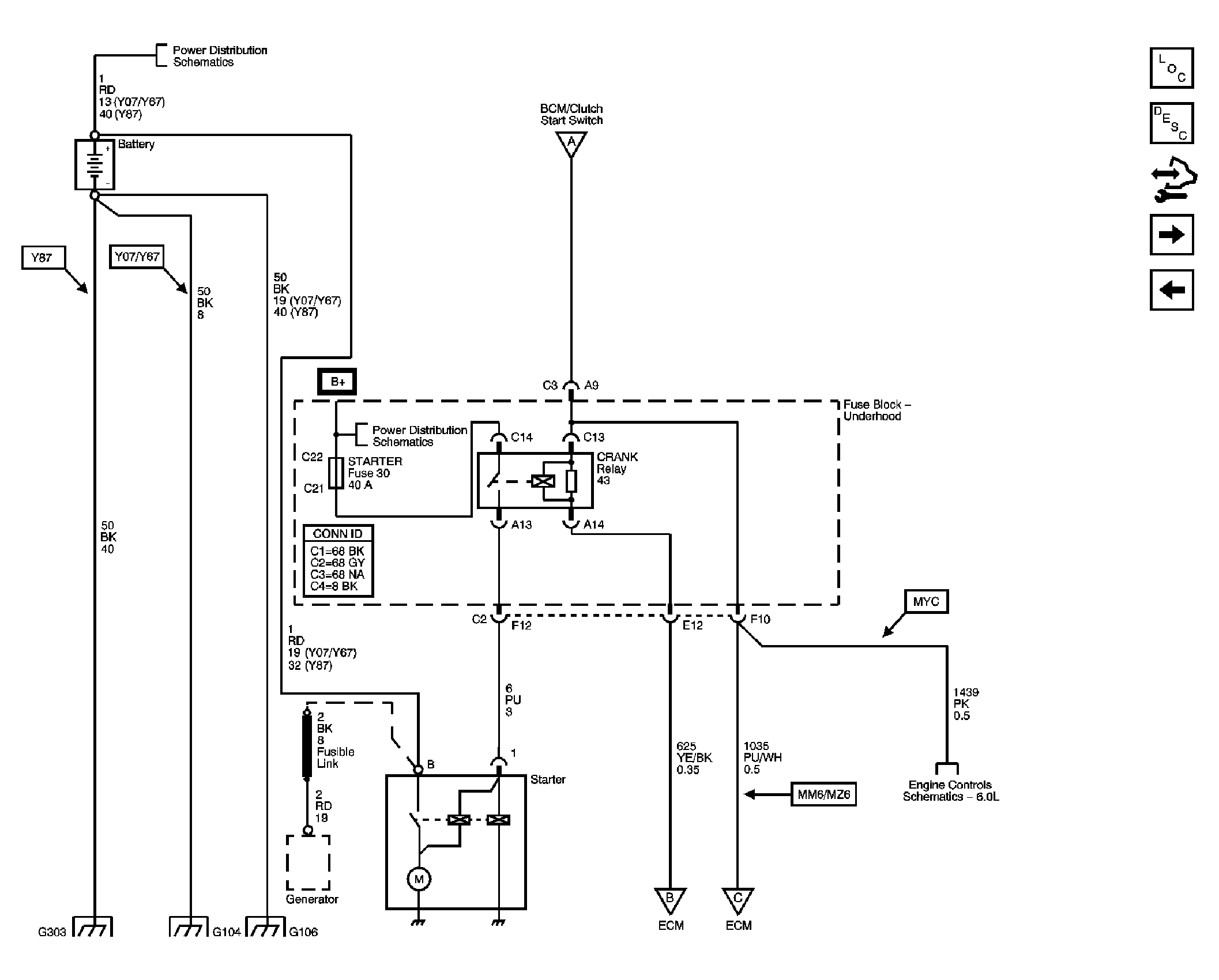

Home >> Chevrolet >> 2007 >> Corvette Base, 2D Convertible, Automatic >> Repair and Diagnosis >> Engine Mechanical >> Starter >> Battery, Charging System And Starting System >> Schematic and Routing Diagrams >> Starting and Charging Schematics
