Exhaust System Schematics

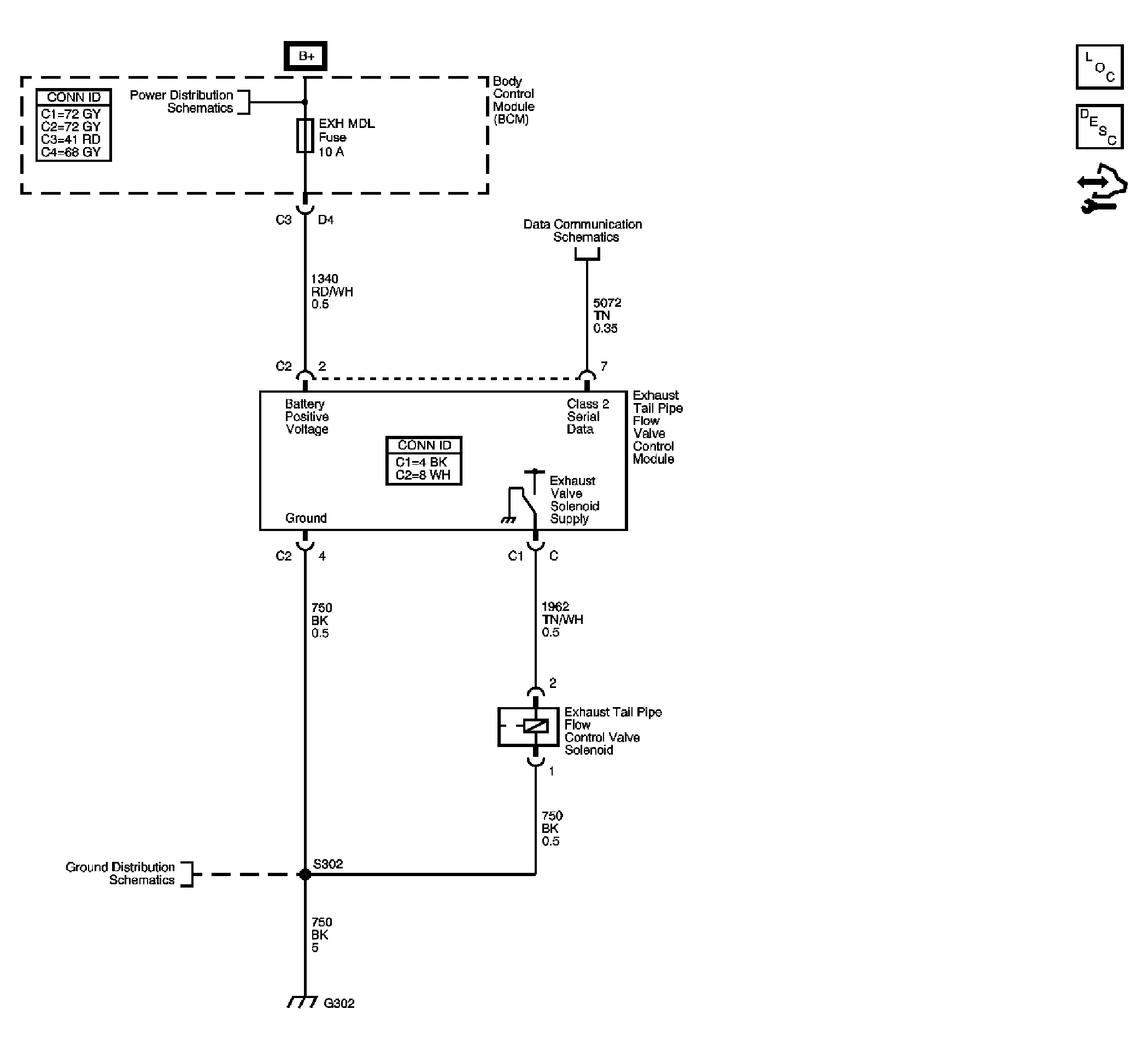

Fig 1: Exhaust System Schematic

GM1772319

Courtesy of GENERAL MOTORS CORP.
