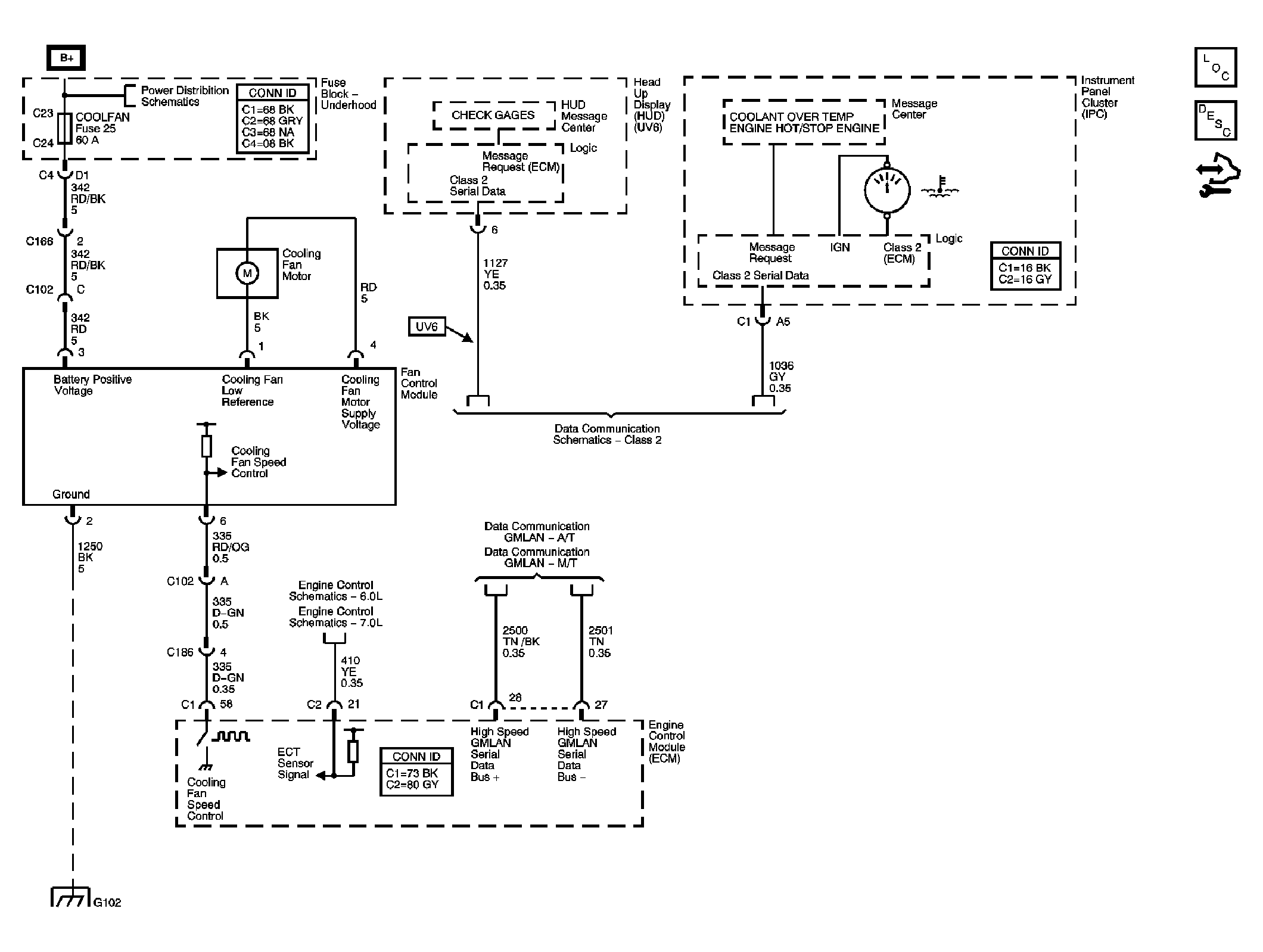

Home >> Chevrolet >> 2007 >> Corvette Base, 2D Convertible, Automatic >> Repair and Diagnosis >> Engine Mechanical >> Cooling System (Mechanical) >> Engine Cooling System >> Schematic and Routing Diagrams >> Engine Cooling Schematics
