Instrument Cluster Schematics

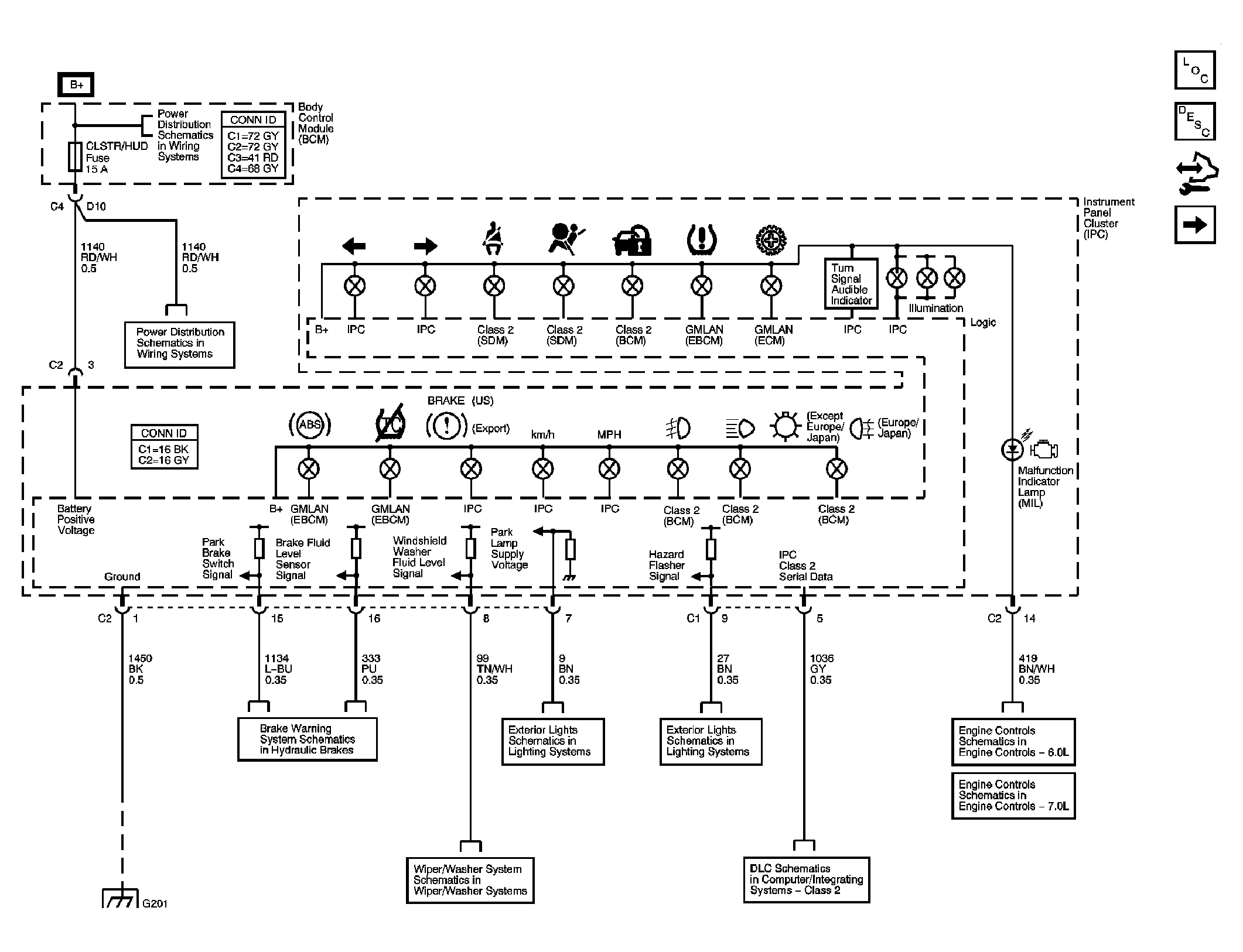

Fig 1: DLC, Ground, Indicators, and Power Schematic
GM1687957Courtesy of GENERAL MOTORS CORP.

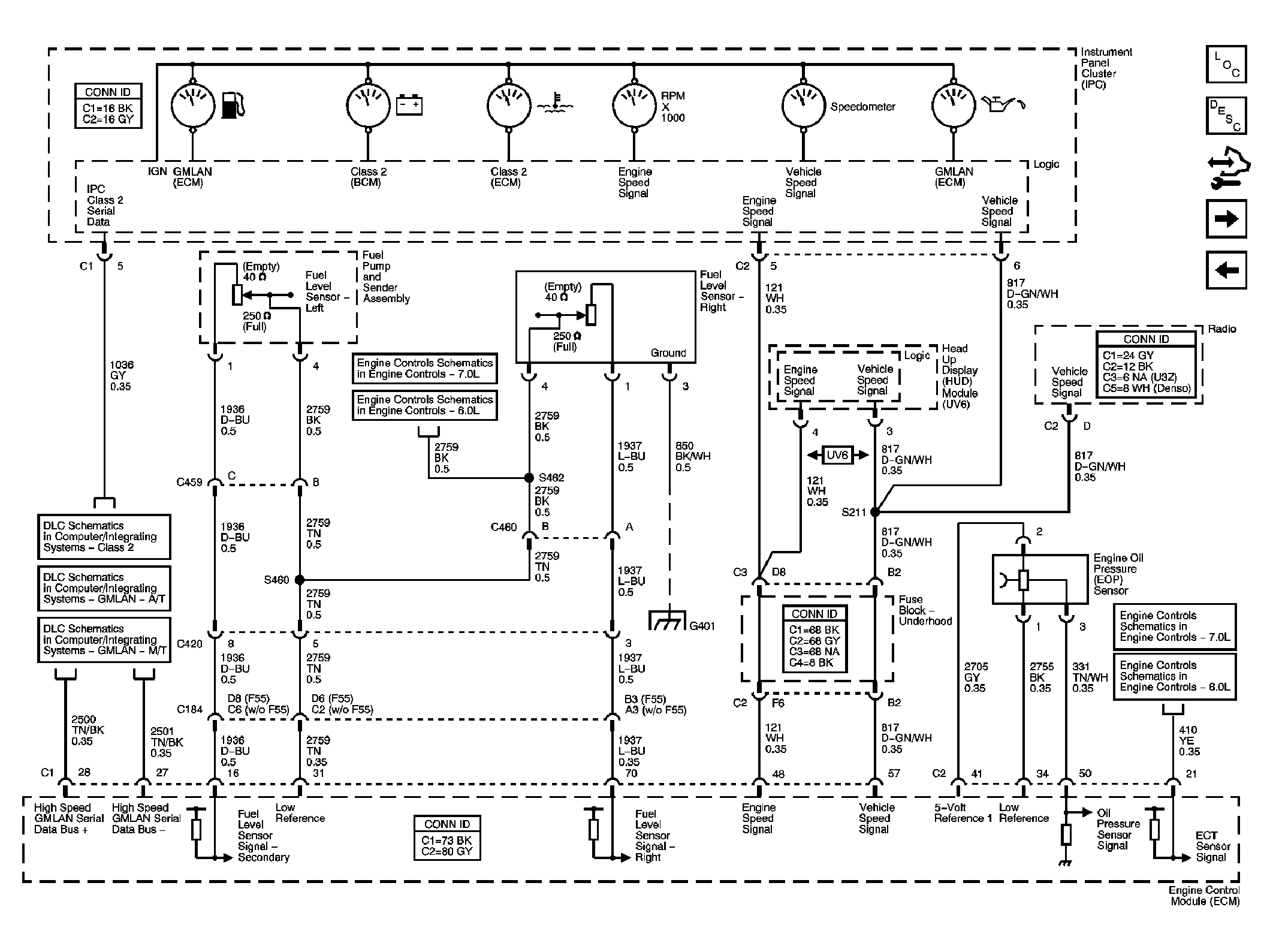

Fig 2: Gages Schematic
GM1688029Courtesy of GENERAL MOTORS CORP.

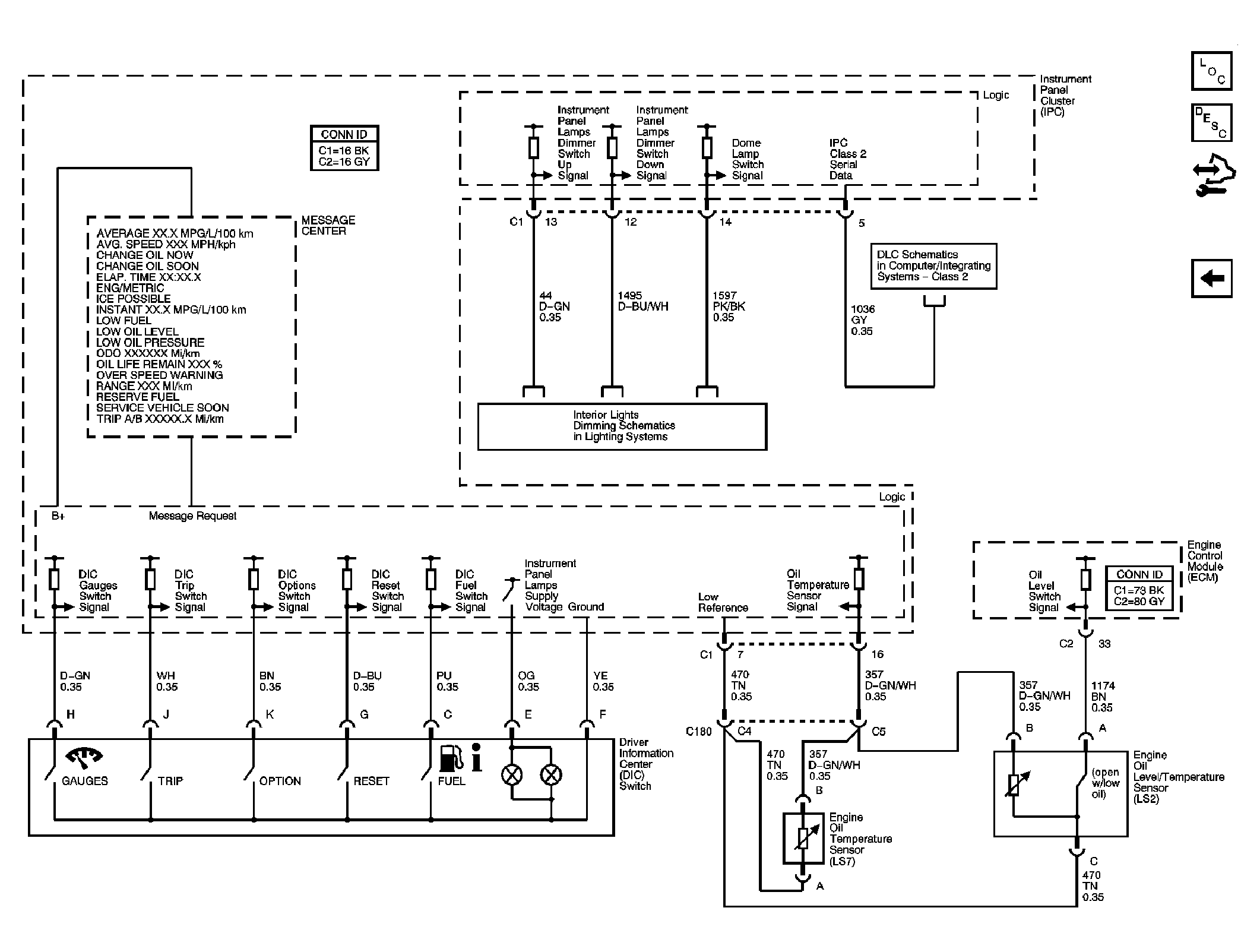

Fig 3: Messages Schematic
GM1688055Courtesy of GENERAL MOTORS CORP.
