Head Up Display Schematics

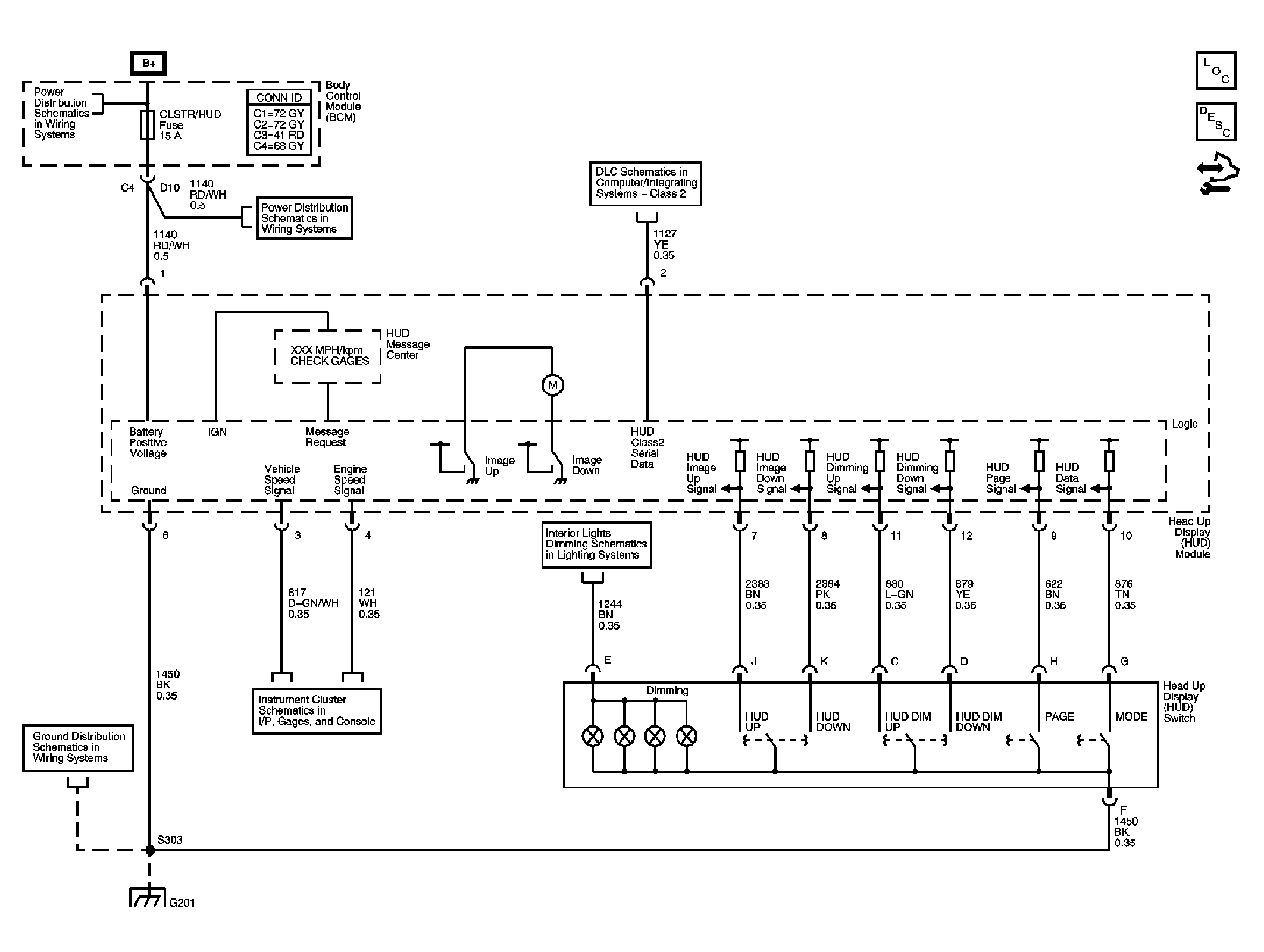

Fig 1: Head Up Display Schematic

GM1445073

Courtesy of GENERAL MOTORS CORP.
